Blind-Spot View Monitor (BVM): (if equipped)

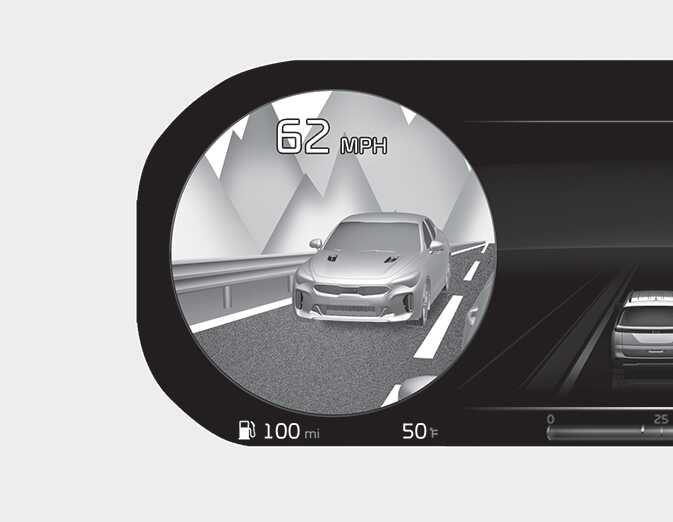

Figure 1. Left side
OKA4052527N
Figure 2. Right side
OKA4052044N

Blind-Spot View Monitor is a function that helps the driver safe driving by using the camera installed in the vehicle and displaying the rear blind spot area of the vehicle in the cluster when the turn signal is turned on.

Detecting sensor

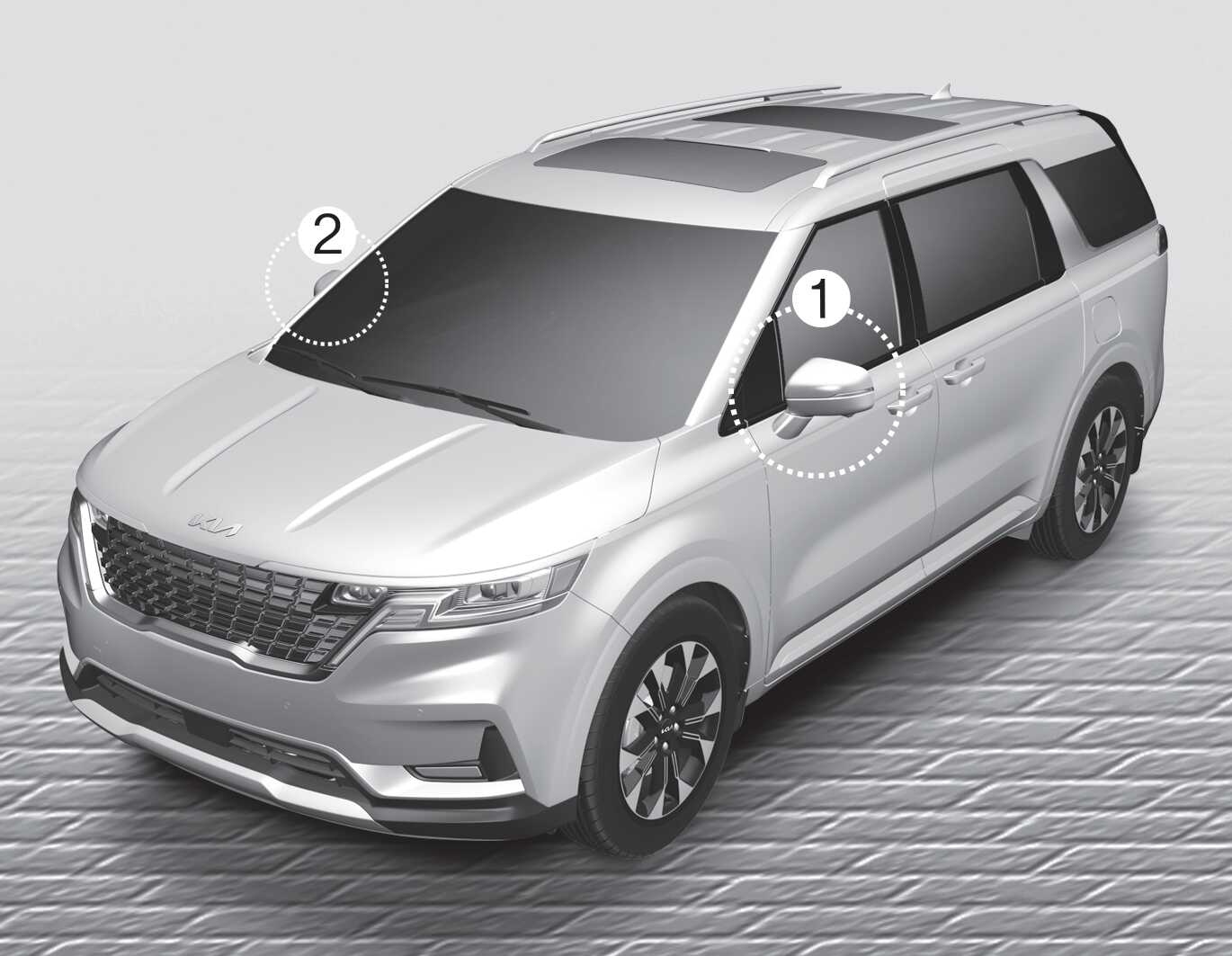

Figure 3. Wide-side view camera
OKA4052045N

(camera located at bottom of the mirror)

Refer to the picture above for the detailed location of the detecting sensors.
