Headlamp and front fog lamp aiming (for Europe)

Headlamp aiming

Headlamp - Type A

Headlamp - Type B

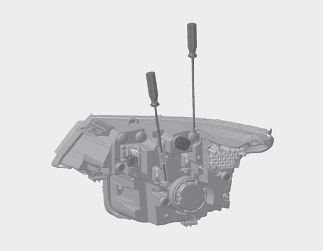

Headlamp - Type C

Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.

The vehicle should be placed on a flat floor.

Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen.

With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines.

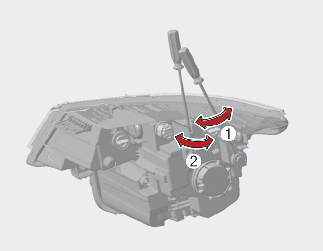

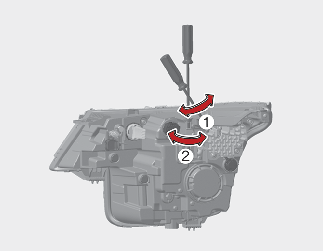

To aim the low and high beams left or right, turn the driver (1) clockwise or counterclockwise. To aim the low and high beams up or down, turn the driver (2) clockwise or counterclockwise.

Front fog lamp aiming

Fog lamp - Type A

Fog lamp - Type B

The front fog lamp can be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery normal condition, aim the front fog lamps.

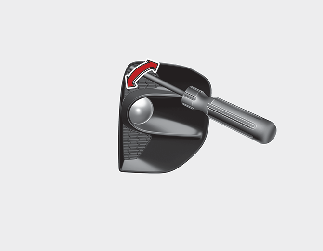

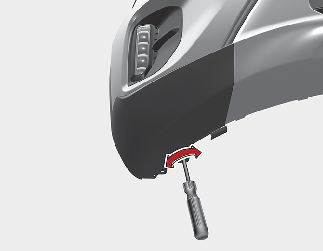

To aim the front fog lamp up or down, turn the driver clockwise or counterclockwise.

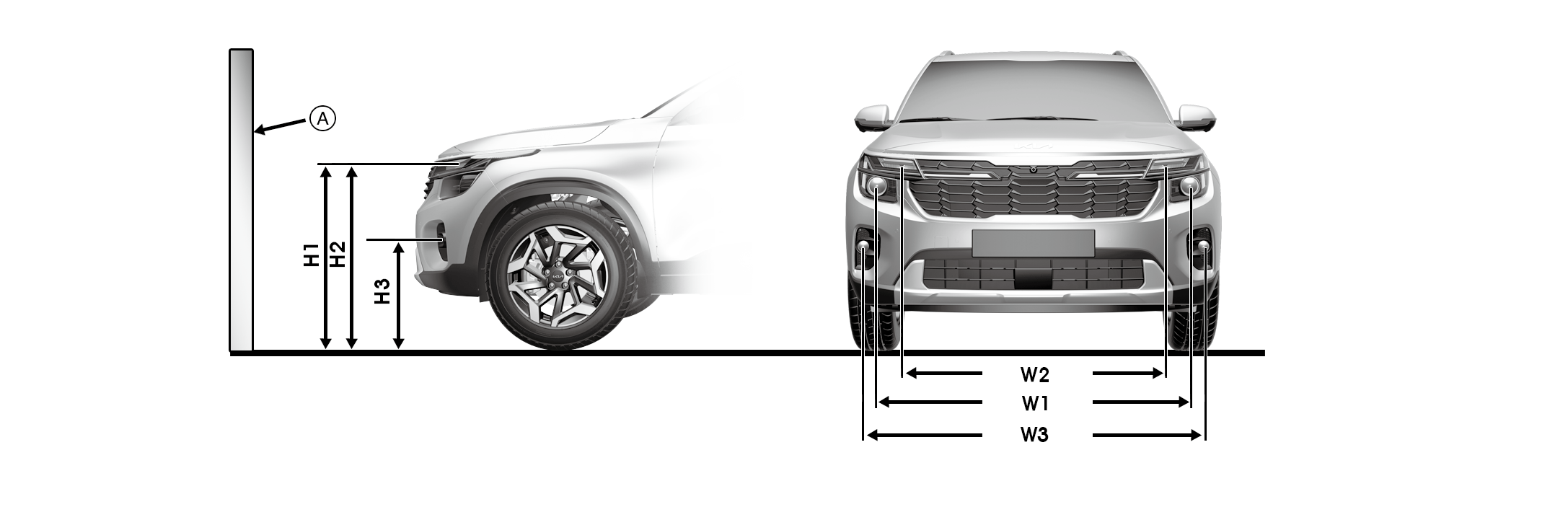

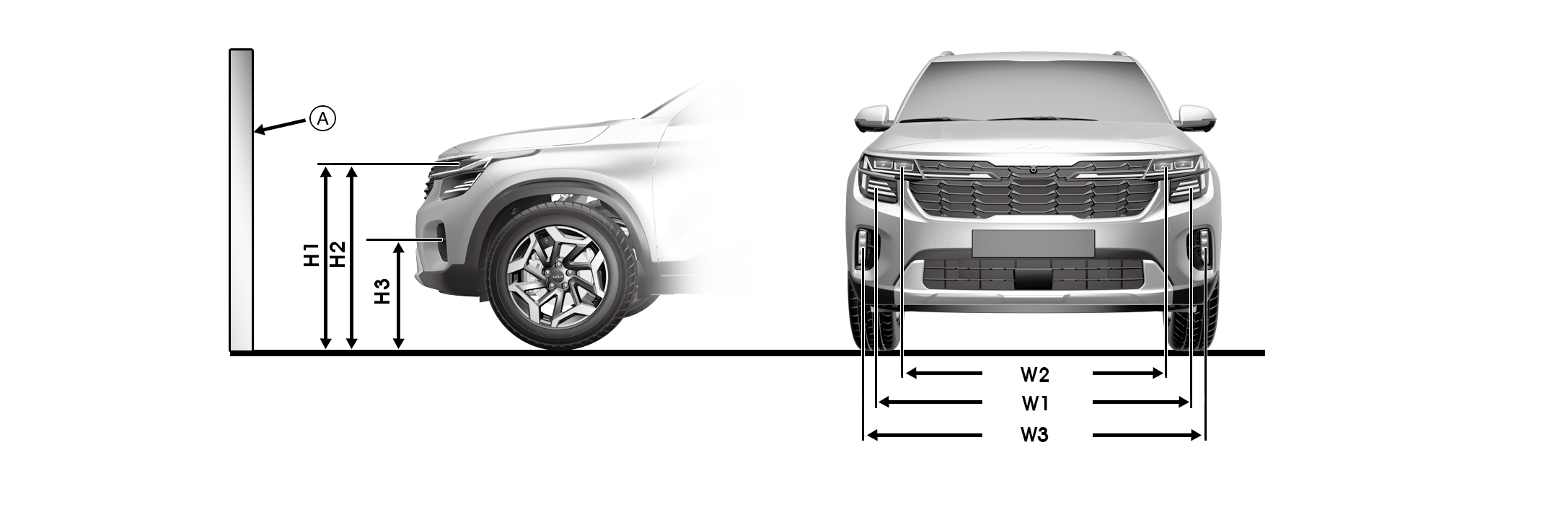

Aiming point

* A: Screen

Vehicle condition	Headlamp - Type A, B				Headlamp - Type C
	Ground height		Ground between lamps		Ground height		Ground between lamps
	Low beam	High beam	Low beam	High beam	Low beam	High beam	Low beam	High beam
	H1	H2	W1	W2	H1	H2	W1	W2
Without driver [mm (in)]	773 (30.4)	773 (30.4)	1,438 (56.6)	1,438 (56.6)	870 (34.2)	860 (33.8)	1,373 (54.0)	1,169 (46.0)
With driver [mm (in)]	768 (30.2)	768 (30.2)	1,438 (56.6)	1,438 (56.6)	865 (34.0)	855 (33.6)	1,373 (54.0)	1,169 (46.0)

Vehicle condition	Fog lamp - Type A (bulb type)		Headlamp - Type B (LED type)
	Ground height	Distance between lamps	Ground height	Distance between lamps
	H3	W3	H3	W3
Without driver [mm (in)]	490 (19.2)	1,457 (57.3)	514 (20.2)	1,554 (61.1)
With driver [mm (in)]	485 (19.0)	1,457 (57.3)	509 (20.0)	1,554 (61.1)

Head lamp low beam (LHD Vehicle)

Based on 10 m screen

A: Vehicle axis

B: Vertical line of the left head lamp bulb center

C: Vertical line of the right head lamp bulb center

D: Horizontal line of head lamp bulb center

E: Ground

F: Cut-Off line

Turn the low beam on with 1 driver (75 kg) aboard.

The cut-off line should be projected in the cut-off line shown in the picture.

First, adjust cut-off line to be matched with the horizontal line and then adjust with the vertical line.

If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

Head lamp low beam (RHD Vehicle)

Based on 10 m screen

A: Vehicle axis

B: Vertical line of the left head lamp bulb center

C: Vertical line of the right head lamp bulb center

D: Horizontal line of head lamp bulb center

E: Ground

F: Cut-Off line

Turn the low beam on with 1 driver (75 kg) aboard.

The cut-off line should be projected in the cut-off line shown in the picture.

First, adjust cut-off line to be matched with the horizontal line and then adjust with the vertical line.

If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

Front fog lamp

Based on 10 m screen

A: Vehicle axis

B: Vertical line of the left fog lamp bulb center

C: Vertical line of the right fog lamp bulb center

D: Horizontal line of fog lamp bulb center

E: Ground

F: Cut-Off line

G: Upper limit

Turn the front fog lamp on without the driver aboard.

The cut-off line should be projected in the allowable range (shaded region).
