LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

Type A

	Mode
	Trip Computer	Driving Assist	Turn by Turn (TBT)	User Settings	Information/Marster warning
Up/Down	Fuel Economy	Lane Keeping Assist* Smart Cruise Control* Navigation-based Smart Cruise Control* Lane Following Assist* Highway Driving Assist*	Route Guidance	Head-Up Display*	Intelligent Speed Limit Assist*
	Accumulated Info	Driver Attention Warning*	Destination Info	Driver Assistance	Tire Pressure Monitoring System
	Drive Info			Door	Driving Force Distribution*
	Digital Speedometer			Lights	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
				Sound
				Convenience
				Service Interval
				Theme Selection
				Other
				Language
				Reset

Type B

	Mode
	Trip Computer	Driving Assist	Turn by Turn (TBT)
Up/Down	Drive Info	Lane Keeping Assist* Smart Cruise Control* Navigation-based Smart Cruise Control* Lane Following Assist* Highway Driving Assist*	Route Guidance
	After Refuel*		Destination Info
	Accumulated Info
	Digital Speedometer
	Driver Attention Warning*
	Tire Pressure Monitoring System
	Intelligent Speed Limit Assist*
	Driving Force Distribution*

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

* For more details, refer to More Details.

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Driving Assist mode

This mode displays the state of:

Lane Safety system (if equipped)
Smart Cruise Control (if equipped)
Driver Attention Warning (if equipped)
Tire pressure

* For more details, refer to each system information in More Details.

Tire pressure status

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

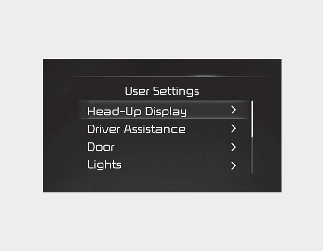

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-up display
Driver Assistance
Lights
Sound
Door
Convenience
Service Interval
Others
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Head-Up Display (if equipped)

Items	Explanation
Enable Head-up display	If this item is checked, Head-Up Display will be activated.
Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Content Selection	To select the content information on the HUD screen.

2. Driver Assistance (if equipped)

Items	Explanation
Driving Convenience	To adjust Highway Driving Assist * For more details, refer to More Details.
DAW (Driver Attention Warning)	Leading vehicle departure alert To select the function. Inattentive driving warning To select the function. * For more details, refer to More Details.
Speed Limit Warning	Speed Limit Offset To select the Warning time Speed Limit Assist/Speed Assist Warning/Off To select the functions. * For more details, refer to the More Details.
Warning timing	Normal/Late To select the Warning time
Warning volume	High/Medium/Low/Off To select the Warning volume
Forward safety	To adjust Forward Collision-Avoidance Assist. Active assist/Warning only/Off To select the functions. * For more details, refer to More Details or More Details.
Lane safety	To adjust Lane Keeping Assist. Assist/Warning only/Off To select the functions. * For more details, refer to More Details.
Blind-spot safety	Blind-spot view To activate or deactivate Blind-Spot View. SEW (Safe Exit Warning) To activate or deactivate Safe Exit Warning. * For more details, refer to More Details. SEA (Safe Exit Assist) To activate or deactivate Safe Exit Assist. * For more details, refer to More Details. Active assist/Warning only/Off * For more details, refer to More Details.
Parking safety	Surround view monitor auto activation To activate or deactivate Surround View Monitor. * For more details, refer to More Details. PDW auto activation To activate or deactivate Parking Distance Warning. * For more details, refer to More Details. Rear cross-traffic safety To activate or deactivate Rear Cross-Traffic Safety. Rear active assist/Rear warning only/Off * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

3. Door

Items	Explanation
Auto lock	Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Enable on shift: All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.) Off: The auto door unlock operation will be canceled. * If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.
Auto unlock	On vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. On shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.) Off: The auto door unlock operation will be canceled. * If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.
Power tailgate	To activate or deactivate power tailgate. * For more details, refer to More Details.
Power tailgate speed	To adjust the power tailgate speed. * For more details, refer to More Details.
Power tailgate opening height	To adjust the power tailgate height. * For more details, refer to More Details.
Smart Tailgate	To activate or deactivate the Smart Tailgate with Auto Open. * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

4. Lights

Items	Explanation
Illumination	To adjust the instrument cluster illumination.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Ambient light	Settings of the ambient light.
Ambient Brightness	Settings of the ambient brightness.
Ambient Light Color	To adjust colors of ambient light. (6 colors)
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Sound

Items	Explanation
Welcome Sound	If this item is checked, the welcome sound function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Convenience

Items	Explanation
Seat Easy Access	Off/Normal/Extended To select the seat movement
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Welcome Mirror/Light	On door unlock / On driver approach To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Wiper/Lights display	If this item is checked, the wiper/lights display will be activated.
Auto rear wiper (in R)	If this item is checked, the auto rear wiper will be activated.
Icy road warning	If this item is checked, the icy road warning will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

7. Service interval

Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

8. Other

Items	Explanation
Fuel Economy Reset	Off: The average fuel economy will not reset. After ignition / After refueling: The average fuel economy will reset automatically after ignition/refueling.
Speedometer Unit	km/h or mph To select the Speedometer unit.
Fuel Economy Unit	Km/L, L/100Km To select the Fuel economy unit. For more details, refer to More Details.
Temperature Unit	°C/°F To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

9. Language

Items	Explanation
Language	You can select the language in the User Settings mode.

10. Theme Selection

Items	Explanation
Theme Selection	You can select the theme in the User Setting mode.

11. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
