Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.Driver's side fuse panel
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
AMP |
 |
25A |
AMP (Amplifier) |
|
LDC |
 |
30A |
Not Used |
|
P/SEAT(DRV) |
 |
30A |
Driver Power Seat Switch, IMS (Integrated memory system) Control Module, Driver Lumbar Support Switch |
|
OBC |
 |
10A |
[PHEV] OBC (On-Board Charger) |
|
P/WINDOW(LH) |
 |
25A |
Driver/Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window Switch Left Handle side, Rear Safety Power Window Module Left Handle side |
|
P/SEAT(PASS) |
 |
30A |
[HEV] Passenger Power Seat Switch, Passenger Relay Unit, Passenger Power Seat Switch [PHEV] Passenger Power Seat Switch, Passenger Relay Unit |
|
S/HEATER (FRT) |
 |
20A |
1st Air Ventilation Seat Control Module, 1st Seat Warmer Control Module |
|
S/HEATER (REAR LH) |
 |
15A |
2nd Seat Warmer Left Handle side Control Module |
|
2nd ROW SEAT FOLDING(RH) |
 |
20A |
2nd Seat Right Handle side Folding Actuator |
|
IG3 1 |
 |
20A |
[PHEV] ICM Relay Box (IG3 Relay) |
|
P/WINDOW (RH) |
 |
25A |
Driver/Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window Switch Right Handle side, Rear Safety Power Window Module Right Handle side |
|
TAILGATE OPEN |
 |
15A |
Tailgate Relay |
|
2nd ROW SEAT FOLDING(LH) |
 |
20A |
2nd Seat Warmer Left Handle side Control Module |
|
DOOR LOCK |
 |
20A |
[HEV] Door Lock/Unlock Relay, Dead Lock Relay, Data Link Connector [PHEV] Door Lock/Unlock Relay, Dead Lock Relay, Data Link Connector, ICM Relay Box (Fuel Lid Lock/Unlock Relay) |
|
REAR A/C 2 |
 |
10A |
Rear Air Conditioner Control Module |
|
MULTI MEDIA 1 |
 |
25A |
Audio, Audio/Video & Navigation Head Unit, Fuse - MULTI MEDIA 2 |
|
E-CALL |
 |
10A |
E-Call Unit |
|
S/HEATER (REAR RH) |
 |
15A |
2nd Seat Warmer Right Handle side Control Module |
|
MEMORY |
 |
10A |
[HEV] Power Tail Gate Unit, IMS (Integrated memory system) Control Module, Rear Air Conditioner Control Module, ROA (Rear Occupant Alert), Driver/Passenger Power Outside Mirror, DAU, Instrument Cluster, Rain Sensor, Front Air Conditioner Control Module, Front Air Conditioner Control Panel, Head-Up Display [PHEV] Power Tail Gate Unit, IMS (Integrated memory system) Control Module, Rear Air Conditioner Control Module, ROA (Rear Occupant Alert), Driver/Passenger Power Outside Mirror, Instrument Cluster, Rain Sensor, Front Air Conditioner Control Module, Front Air Conditioner Control Panel, Head-Up Display |
|
START |
 |
10A |
Ignition Switch |
|
E-SHIFTER |
 |
7.5A |
Electronic Shift Dial |
|
MODULE 6 |
 |
7.5A |
Not Used |
|
USB CHARGER 1 |
 |
10A |
Luggage USB Charge Connector Left Handle side/Right Handle side |
|
USB CHARGER 2 |
 |
15A |
Rear Console USB Charge Connector Left Handle side/Right Handle side, Driver/Passenger Seat USB Charge Connector |
|
CHARGER LOCK |
 |
10A |
[PHEV] ICM Relay Box (Charger Connector Lock/Unlock Relay), Charger Door Lock Module |
|
MODULE 3 |
 |
7.5A |
[HEV] IBU (Integrated Body Control Unit), ADAS Parking ECU, Front View Camera, Crash Pad Switch, Surround View Monitor Unit, Rear Corner Radar LH/RH, 4WD (4 Wheel Drive) ECU (Electronic Control Unit), Front View Camera, VESS (Virtual Engine Sound System) Unit, Front Console Switch, Driver/Passenger Seat Ventilation Switch [PHEV] IBU (Integrated Body Control Unit), ADAS Parking ECU, Front Camera, Crash Pad Switch, Surround View Monitor Unit, Rear Corner Radar Left Handle side/Right Handle side, 4WD (4 Wheel Drive) ECU (Electronic Control Unit), Front Radar, VESS (Virtual Engine Sound System) Unit, Front Console Switch, Driver/Passenger Seat Ventilation Switch Left Handle side/Right Handle side |
|
AIR BAG 1 |
 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
WASHER |
 |
15A |
Multifunction Switch |
|
MODULE 1 |
 |
10A |
AMP (Amplifier), RSE Left Handle side/Right Handle side, Audio, Audio/Video & Navigation Head Unit, IBU (Integrated Body Control Unit), Front USB Charge Connector Left Handle side/Right Handle side, ADAS Unit, E-Call Unit, Surround View Monitor Unit |
|
MODULE 9 |
 |
10A |
[HEV] Key Solenoid, Driver/Passenger Mood Lamp, ADAS Parking ECU, Data Link Connector, Surround View Monitor Unit, DAU, Driver/Passenger Smart Key Outside Handle, Mood Lamp Unit, UIP, BBS, Driver/Passenger Door Mood Lamp Unit [PHEV] Driver/Passenger Mood Lamp, ADAS Parking ECU, Data Link Connector, Surround View Monitor Unit, Driver Door Area Unit, Rain Sensor, Driver/Passenger Smart Key Outside Handle, Mood Lamp Unit, UIP Sensor, Back up Battery Siren, Driver/Passenger Door Mood Lamp Unit |
|
IBU 1 |
 |
7.5A |
[HEV] IBU (Integrated Body Control Unit), Engine Room Junction Block (Battery C/Fan Relay), BMS (Battery Management System) Control Module [PHEV] IBU (Integrated Body Control Unit) |
|
MODULE 2 |
 |
7.5A |
[HEV] DAU, Overhead Console, Multifunction Switch (R-MDPS) [PHEV] Driver Door Area Unit, Overhead Console, Multifunction Switch (R-MDPS) * MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering). |
|
REAR A/C 1 |
 |
15A |
Rear Air Conditioner Blower Motor, ICU Junction Block (Fuse - REAR A/C 2) |
|
A/BAG IND |
 |
7.5A |
Instrument Cluster, Overhead Console |
|
MODULE 8 |
 |
7.5A |
ADAS Parking ECU, 1st Air Ventilation Seat Control Module, 1st Seat Warmer Control Module, 2nd Seat Warmer Left Handle side/Right Handle side Control Module, Rear Air Conditioner Control Module |
|
IBU 2 |
 |
15A |
IBU (Integrated Body Control Unit) |
|
MODULE10 |
 |
10A |
Stop Lamp Switch |
|
MODULE 5 |
 |
10A |
Overhead Console, AMP (Amplifier), Front Wireless Charger Unit |
|
A/C |
 |
7.5A |
[HEV] Front Air Conditioner Control Panel, Front Air Conditioner Control Module, Electronic Air Conditioner Compressor, Engine Room Junction Block (PTC Heater #1 Relay, PTC Heater #2 Relay, Blower Relay) [PHEV] Front Air Conditioner Control Panel, Front Air Conditioner Control Module, Engine Room Junction Block (PTC Heater #1 Relay, PTC Heater #2 Relay, Blower Relay) |
|
AIR BAG 2 |
 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
CLUSTER |
 |
7.5A |
Instrument Cluster, Head-Up Display |
|
MODULE 4 |
 |
10A |
[HEV] E-Call Unit, Audio, Audio/Video & Navigation Head Unit, Data Link Connector, Front Air Conditioner Control Panel, Front Air Conditioner Control Module, Crash Pad Switch, Electro Chromic Mirror, Head Lamp Left Handle side/Right Handle side, IMS (Integrated memory system) Control Module, 1st Air Ventilation Seat Control Module, 1st Seat Warmer Control Module, 2nd Seat Warmer Left Handle side/Right Handle side Control Module [PHEV] E-Call Unit, Audio, Audio/Video & Navigation Head Unit, Data Link Connector, Crash Pad Switch, Electro Chromic Mirror, Head Lamp Left Handle side/Right Handle side, IMS (Integrated memory system) Control Module, 1st Air Ventilation Seat Control Module, 1st Seat Warmer Control Module, 2nd Seat Warmer Left Handle side/Right Handle side Control Module |
|
IG3 3 |
 |
10A |
[PHEV] HPCU, SBW Control Unit |
|
MODULE 7 |
 |
7.5A |
IBU (Integrated Body Control Unit) |
|
MULTI MEDIA 2 |
 |
10A |
[HEV] RSE Left Handle side/Right Handle side [PHEV] Rear Seat Entertainment Left Handle side/Right Handle side |
|
BRAKE SWITCH |
 |
7.5A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
MDPS |
 |
7.5A |
MDPS (Motor Driven Power Steering) Unit * MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering). |
|
IG3 2 |
 |
10A |
[PHEV] Instrument Cluster, Front Air Conditioner Control Panel, Front Air Conditioner Control Module |
|
IG3 4 |
 |
15A |
[PHEV] Electronic Water Pump |
Engine compartment fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
COOLING FAN |
 |
80A |
Cooling Fan Motor |
|
PTC HEATER1 |
 |
50A |
PTC Heater #1 Relay |
|
B+2 |
 |
50A |
ICU Junction Block (Instrument Panel Module) |
|
PTC HEATER2 |
 |
50A |
PTC Heater #2 Relay |
|
CVVD1 |
 |
50A |
CVVD Actuator |
|
IEB1 |
 |
40A |
IEB Unit |
|
MDPS1 |
 |
100A |
MDPS (Motor Driven Power Steering) Unit * MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering). |
|
B+6 |
 |
60A |
PCB Junction Block (Fuse - IG2, IG1) |
|
IEB2 |
 |
60A |
IEB Unit |
|
B+5 |
 |
50A |
ICU Junction Block (Fuse - P/SEAT(DRV), P/WINDOW(LH), P/SEAT(PASS), S/HEATER (REAR LH), 2nd ROW SEAT FOLDING) |
|
REAR HEATED |
 |
40A |
Rear Heated Relay |
|
POWER TAILGATE |
 |
40A |
Power Tail Gate Unit |
|
SUNROOF |
 |
40A |
Sunroof Motor (Glass) |
|
E-SHIFTER1 |
 |
30A |
SBW (Shift By Wire) Control Unit |
|
TRAILER1 |
 |
50A |
Trailer Module |
|
IEB3 |
 |
60A |
IEB Unit |
|
B+3 |
 |
50A |
ICU Junction Block (Instrument Panel Module) |
|
TRAILER2 |
 |
20A |
Trailer Module |
|
BATTERY C/FAN |
 |
15A |
[HEV] Battery C/Fan Relay (Battery C/Fan Relay) |
|
OPCU |
 |
20A |
OPU |
|
HPCU1 |
 |
10A |
HPCU (Hybrid Power Control Unit) |
|
FUEL PUMP |
 |
20A |
Fuel Pump Relay |
|
CHILD LOCK |
 |
15A |
PCB Junction Block (Child Lock/Unlock Relay) |
|
BLOWER |
 |
50A |
Blower Relay |
|
B+4 |
 |
50A |
[HEV] ICU Junction Block (Fuse - AMP, S/HEATER (FRT), P/WINDOW (RH), 2nd ROW SEAT FOLDING(LH)) [PHEV] ICU Junction Block (Fuse - AMP, OBC, S/HEATER (FRT), IG3 1, P/WINDOW (RH), 2nd ROW SEAT FOLDING(LH)) |
|
B+1 |
 |
40A |
[HEV] ICU Junction Block (Fuse - TAILGATE OPEN, DOOR LOCK, MULTI MEDIA 1, S/HEATER (REAR RH), MEMORY, MODULE 9, IBU 2, AIR BAG 2, BRAKE SWITCH, Long Term Load Latch Relay) [PHEV] ICU Junction Block (Fuse - TAILGATE OPEN, DOOR LOCK, S/HEATER (REAR RH), MEMORY, START, MODULE 9, IBU 2, AIR BAG 2, BRAKE SWITCH, Long Term Load Latch Relay) |
|
BATTERY MANAGEMENT |
 |
10A |
BMS (Battery Management System) Control Module |
|
4WD |
 |
20A |
4WD (4 Wheel Drive) ECU (Electronic Control Unit) |
|
TCU |
 |
15A |
TCM (Transmission Control Module) |
|
AMS |
 |
10A |
Battery Sensor |
|
E-SHIFTER2 |
 |
10A |
SBW (Shift By Wire) Control Unit |
|
EWP1 |
 |
10A |
Electronic Water Pump |
|
HEATED MIRROR |
 |
10A |
[HEV] Front Air Conditioner Control Panel, Front Air Conditioner Control Module, Electronic Air Conditioner Compressor, Engine Room Junction Block (PTC Heater #1 Relay, PTC Heater #2 Relay, Blower Relay) [PHEV] Driver/Passenger Power Outside Mirror, Front Air Conditioner Control Panel |
|
A/C1 |
 |
10A |
Not Used |
|
W/S HEATED GLASS 1 |
 |
50A |
Not Used |
|
W/S HEATED GLASS 2 |
 |
50A |
Not Used |
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
IG2 |
 |
40A |
Ignition switch2 Relay |
|
IG1 |
 |
40A |
Ignition switch1 Relay, ACC Relay |
|
WIPER2 |
 |
7.5A |
IBU (Integrated Body Control Unit) |
|
SENSOR6 |
 |
20A |
Oxygen Sensor (Down) |
|
SENSOR1 |
 |
20A |
Ignition Coil #1/#2/#3/#4 |
|
SENSOR8 |
 |
10A |
OPU |
|
ECU2 |
 |
10A |
ECM (Engine Control Module), CVVD Actuator |
|
SENSOR5 |
 |
10A |
Engine Room Junction Block (Fuel Pump Relay) |
|
HPCU2 |
 |
10A |
HPCU (Hybrid Power Control Unit) |
|
EWP2 |
 |
10A |
Electronic Water Pump, Electronic Water Pump (HEV (Hybrid Electric Vehicle)) |
|
SENSOR9 |
 |
20A |
Not Used |
|
SENSOR3 |
 |
20A |
ECM (Engine Control Module) |
|
SENSOR2 |
 |
15A |
Active Purge Pump |
|
WIPER1 |
 |
30A |
Front Wiper Motor, Front Wiper (Low) Relay |
|
REAR WIPER |
 |
15A |
Rear Wiper Relay, Rear Wiper Motor |
|
HORN |
 |
15A |
Horn Relay |
|
A/C |
 |
10A |
Not Used |
|
B/A HORN |
 |
15A |
Burglar Alarm Horn Relay |
|
E-SHIFTER3 |
 |
7.5A |
SBW (Shift By Wire) Control Unit |
|
TCU2 |
 |
10A |
TCM (Transmission Control Module) |
|
SENSOR4 |
 |
10A |
[HEV] Purge Control Solenoid Valve, Oil Control Valve #1/#2 (Intake/Exhaust),Oil Pump Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Cooling Fan Motor [PHEV] Purge Control Solenoid Valve, Oil Control Valve #1/#2 (Intake/Exhaust),Oil Pump Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, ELCM (Evap. Leak Check Module) |
|
SENSOR7 |
 |
15A |
Oxygen Sensor (Up) |
|
ECU1 |
 |
15A |
ECM (Engine Control Module) |
|
ECU3 |
 |
20A |
ECM (Engine Control Module) |
|
ABS4 |
 |
7.5A |
IEB Unit |
|
POWER OUTLET2 |
 |
20A |
Rear Console Power Outlet |
|
POWER OUTLET1 |
 |
20A |
Luggage Power Outlet |
Refer to the following table for the relay type.
|
Relay Name |
Type |
|---|---|
|
Fuel Pump Relay |
MICRO |
|
Battery C/Fan Relay |
MICRO |
|
PTC Heater #1 Relay |
MICRO |
|
B/Alarm Horn Relay |
MICRO |
|
PTC Heater #2 Relay |
MICRO |
|
Blower Relay |
MICRO |
|
Rear Heated Relay |
MINI |

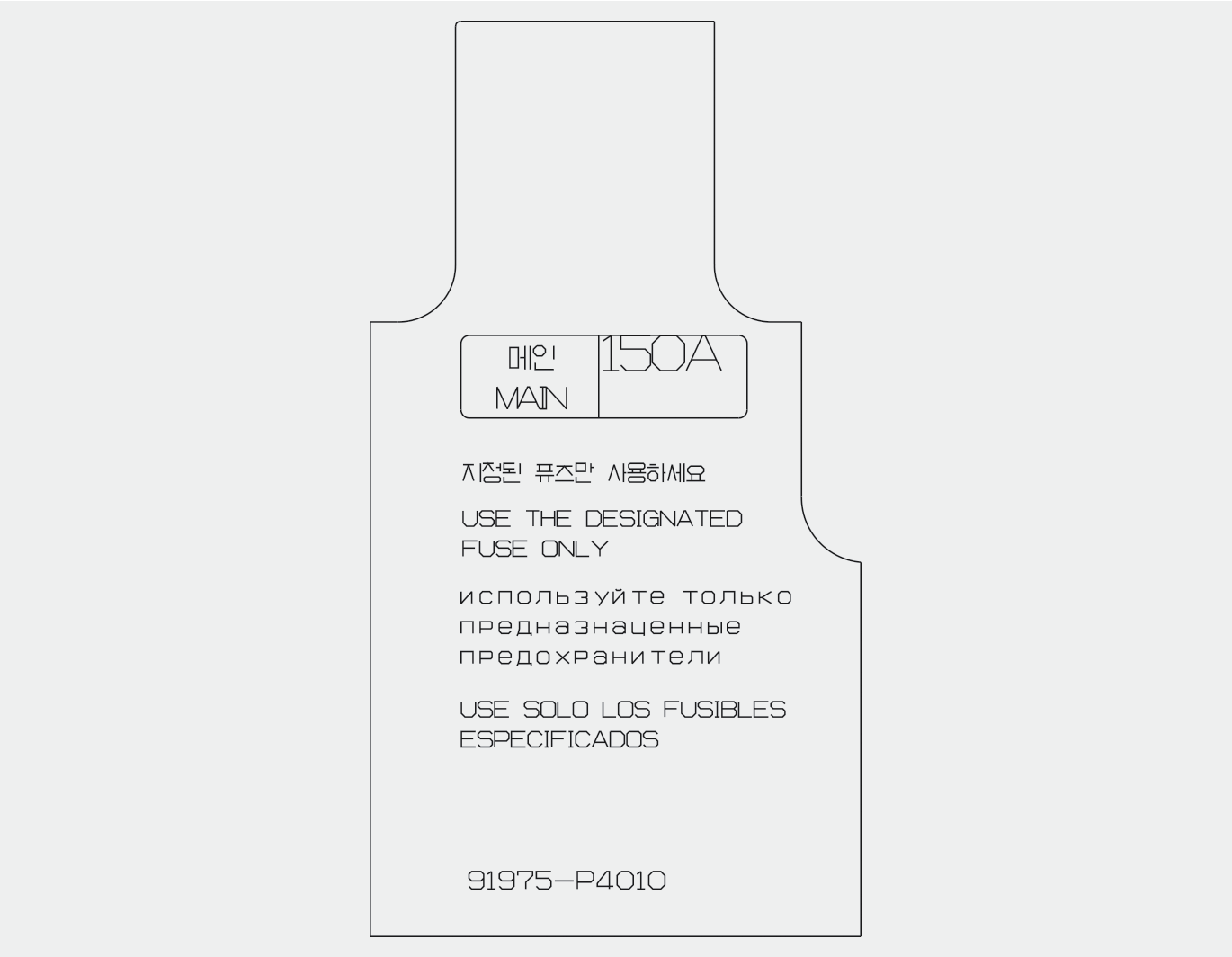

Engine compartment fuse panel (Battery terminal cover)
