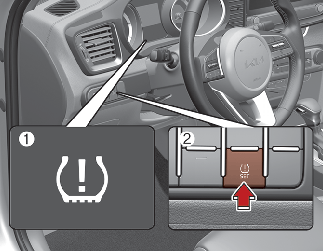

1. Low Tire Pressure Telltale/TPMS Malfunction Indicator

2. TPMS SET button

3. Low Tire Pressure Telltale

   (Shown on the LCD display)

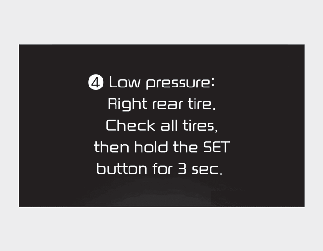

4. Low Tire Pressure Telltale Position Indicate

The TPMS on this vehicle monitors and compares the rolling radius and rotational characteristics of each wheel and tire while you are driving. And it checks whether any tire is significantly under-inflated.

You should reset the system by pushing the TPMS SET button according to the procedure and store the current tire pressure.

After that, if one or more tires are significantly under-inflated, the low tire pressure indicator illuminates and a message is shown on the cluster.

Also, if there is a malfunction with the TPMS, the TPMS malfunction indicator will illuminate.

If vehicle conditions are satisfied, TPMS can indicate one position of low pressure tire. Even if TPMS indicate one position, you should check all the tires inflation pressure and adjust the tires to the recommended tire inflation pressure.
