LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Driving Assist	Turn By Turn (TBT)*	Trip Computer	User Settings*	Master warning
Up/Down	SCC/Lane Safety*	Route Guidance	Drive Info	Driver Assistance	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	DAW*	Destination Info	Since Refueling	Cluster
	TPMS*		Accumulated Info	Lights
			Digital Speedometer	Door
				Convenience
				Units
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

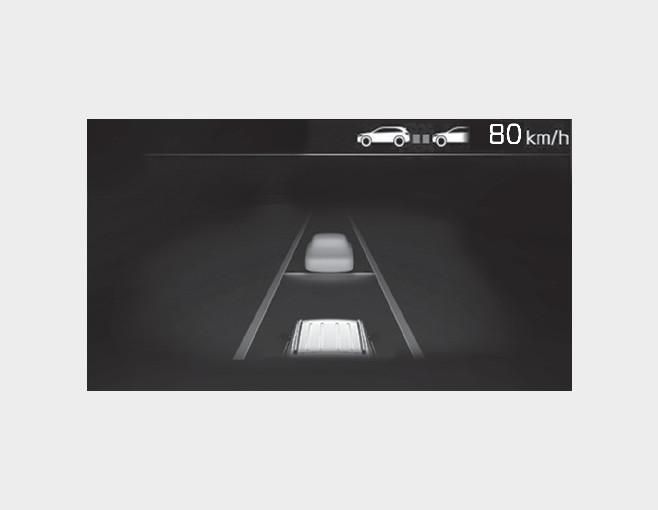

Driving Assist mode

This mode displays the state of:

Smart Cruise Control (if equipped)
Lane Safety (if equipped)
Driver Attention Warning (if equipped)
Tire pressure (if equipped)

* For more details, refer to each system information in More Details.

Tire pressure status

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

Turn By Turn (TBT) mode (if equipped)

This mode displays the state of the navigation.

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

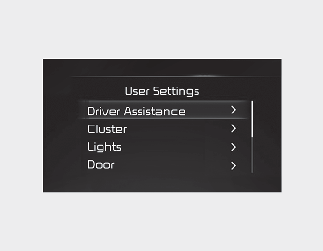

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Assistance
Cluster
Lights
Door
Convenience
Units
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance

Items	Explanation
Driving Convenience	To adjust Highway Driving Assist * For more details, refer to the More Details.
Speed Limit	To adjust Speed Limit * For more details, refer to the More Details.
Warning Timing	Normal/Late To select the Warning time
Warning Volume	High/Medium/Low To select the Warning volume
Driver Attention Warning	Inattentive Driving Warning To select the function. * For more details, refer to the More Details.
Forward Safety	To adjust Forward Collision-Avoidance Assist. Active Assist/Warning Only/Off To select the functions.
Lane Safety	To adjust Lane Keeping Assist. Lane Keeping Assist/Lane Departure Warning/Off To select the functions.
Blind-Spot Safety	Blind-Spot View To activate or deactivate Blind-Spot View. Safe Exit Assist To activate or deactivate Safe Exit Assist. For more details, refer to More Details. Active assist Warning only Off For more details, refer to More Details or More Details.
Parking Safety	Surround View Monitor Auto On Parking Distance Warning Auto On Rear Cross-Traffic Safety To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist. Active Assist Warning only Off For more details, refer to More Details or More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

2. Cluster

Items	Explanation
Fuel Economy Reset	Off: The average fuel economy will not reset. After Vehicle On / After Refueling: The average fuel economy will reset automatically after ignition/refueling.
Wiper/Lights Display	If this item is checked, the wiper/lights display will be activated.
Icy Road Warning	If this item is checked, the icy road warning will be activated.
Welcome Sound	If this item is checked, the welcome sound function will be activated.
Theme Selection	Theme A/Theme B/Theme C If this item is checked, the cluster theme will change accordingly.

* The information provided may differ depending on which systems are applicable to your vehicle.

3. Lights

Items	Explanation
Illumination	To adjust the instrument cluster illumination.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Door

Items	Explanation
Automatically Lock	Enable on shift (for Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.) Enable on speed (for Automatic transmission): All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Off: The auto door unlock operation will be canceled. * If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.
Automatically Unlock	On shift to P (for Automatic transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.) Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. Off: The auto door unlock operation will be canceled.
2 Press Unlock	To adjust 2 Press Unlock
Horn Feedback	To adjust horn feedback
Power Tailgate	To adjust Power Tailgate
Power Tailgate Opening Speed	Fast: The power tailgate will be closed faster than normal speed. Normal: The power tailgate will be closed in normal speed.
Power Tailgate Opening Height	Full Open/Level 3/Level 2/Level 1/Full Open The power tailgate will be opened in a certain angle.
Tailgate Auto Close	To activate or deactivate Tailgate Auto Close. For more details, refer to More Details.
Smart Tailgate	To activate or deactivate the Smart Tailgate with Auto Open. For more details, refer to More Details.
Power Sliding Door	To adjust Power Sliding Door
Smart Sliding Door	To activate or deactivate the Smart Sliding Door with Auto Open. For more details, refer to More Details.
Remote Power Doors & Tailgate	To adjust Remote Power Doors & Tailgate
Simultaneous Power Door	OFF: The Simultaneous Power Door function is turned off. Left/Right Door Open: The sliding doors open simultaneously. All Door Open: The sliding doors and the tailgate opens simultaneously. * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

5. Convenience

Items	Explanation
Seat Easy Access	Off/Move Seat To select the seat movement.
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Welcome Mirror/Light	On door unlock/On driver approach To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Auto Rear Wiper (in R)	If this item is checked, the auto rear wiper will be activated.
Service Interval	Enable Service Interval If this item is checked, the Service Interval function will be activated. Adjust Interval If the service interval menu is activated, you may adjust the time and distance. Reset To reset the service interval function.

* The information provided may differ depending on which functions are applicable to your vehicle.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

6. Units

Items	Explanation
Speedometer Unit	km/h or mph To select the Speedometer unit.
Fuel Economy Unit	Km/L, L/100Km To select the Fuel economy unit. For more details, refer to More Details.
Temperature Unit	°C/°F To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

7. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
