LCD display modes

Mode
	Sport (if equipped)	Trip Computer	Turn by Turn (if equipped)	Driving Assist	User Settings (if equipped)	Information	Master warning
Up/Down	Gauges	Accumulated Info	Route Guidance	Lane Departure Warning/Lane Keeping Assist/Smart Cruise Control/Lane Following Assist/Highway Driving Assist	Driver Assistance	Digital Speedometer	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
		Since refueling	Destination Info		Head-Up Display	TPMS
		Drive Information			Cluster
		Auto Stop			Lights
					Door
				Driver Attention Warning	Convenience
					Units

The information provided may differ depending on which functions are applicable to your vehicle.

* For controlling the LCD modes, refer to More Details.

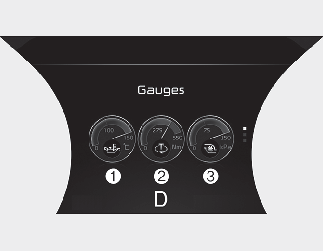

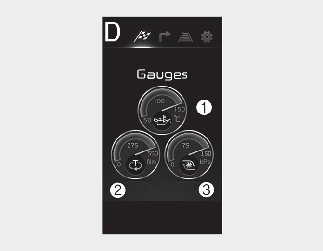

Sport mode (if equipped)

Type A

Type B

This mode displays Oil temperature (1), Torque gauge (2), Turbo boost gauge (3).

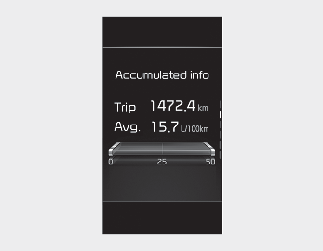

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including Accumulated info, Driving information, and so on.

* For more details, refer to More Details.

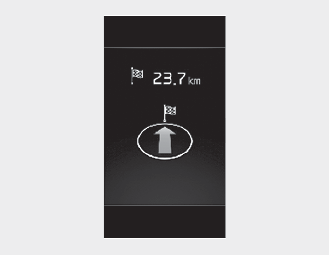

Turn By Turn mode (if equipped)

This mode displays the state of the navigation.

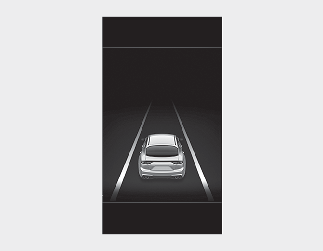

Driving Assist mode

Lane Departure Warning

Lane Keeping Assist

Lane Following Assist

Smart Cruise Control

Highway Driving Assist (if equipped)
Driver Attention Warning

* For more details, refer to each system information in More Details.

Setting (if equipped)

To change the Driver Assistance settings, press the OK button on the steering wheel for more than 1 second when the Driving Assist mode is displayed.

WARNING

While driving, please do not change the setting mode. It may distract your attention and cause the accident.

Item	Explanation
SCC Reaction	Fast/Normal/Slow
Driving Convenience	Highway Driving Assist/Highway Auto Speed Change
Warning Timing	Normal/Late
Warning Volume	High/Medium/Low
Driver Attention Warning	Leading Vehicle Departure Alert/Inattentive Driving Warning
Forward Safety	Active Assist/Warning only/Off
Lane Safety	Assist/Warning Only/Off
Blind-Spot Safety	Blind-Spot View/Safe Exit Warning/Active Assist/Warning Only/Off
Parking Safety	360° Camera Monitoring Auto On/Rear Cross-Traffic Safety

NOTICE

The information provided may differ depending on which functions are applicable to your vehicle.

Information

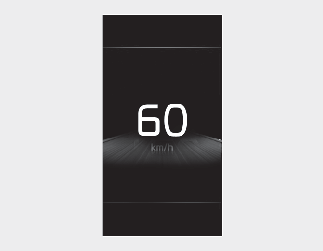

Digital speedometer

This digital speedometer display shows the speed of the vehicle.

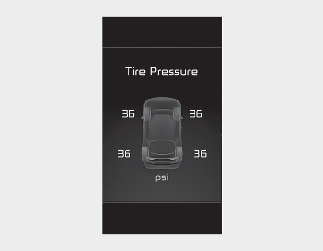

Tire pressure

This mode displays the state of the tire pressure.

* For more details, refer to More Details.

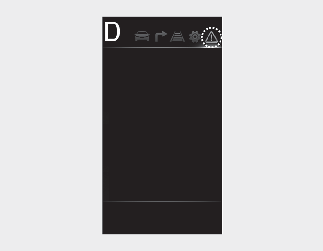

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction
Forward Collision-Avoidance Assist radar blocked
Blind-Spot Collision Warning malfunction
Blind-Spot Collision Warning radar blocked
High Beam Assist malfunction
Smart Cruise Control malfunction
Smart Cruise Control radar blocked
LED headlamp malfunction
TPMS failure, low pressure, etc.

At this time, a Master Warning icon () will appear on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

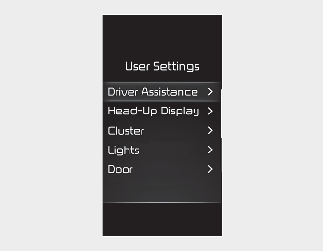

User settings mode (if equipped)

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

Driver Assistance (if equipped)

Items	Explanation
SCC Reaction	Fast/Normal/Slow To adjust the sensitivity of Smart Cruise Control. * For more details, refer to More Details.
Driving Convenience (if equipped)	Highway Driving Assist To select the function. * For more details, refer to More Details. Highway Auto Speed Change To select the function. * For more details, refer to More Details.
Warning Timing	Normal/Late To select the Warning Time.
Warning Volume	High/Medium/Low To select the Warning Volume.
Driver Attention Warning	Leading Vehicle Departure Alert/Inattentive Driving Warning To select the function. * For more details, refer to More Details.
Forward Safety	Active Assist/Warning Only/Off To select the functions. * For more details, refer to More Details.
Lane Safety	Assist/Warning Only/Off To select the functions. * For more details, refer to More Details.
Blind-Spot Safety (if equipped)	Blind-Spot View To select the function. * For more details, refer to More Details. Safe Exit Warning To select the function. * For more details, refer to More Details. Active Assist/Warning Only/Off To select the function. * For more details, refer to More Details.
Parking Safety (if equipped)	360° Camera Monitoring Auto On To select the function. * For more details, refer to More Details. Rear Cross-Traffic Safety To select the function. * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

Head-Up Display (if equipped)

Items	Explanation
Enable Head-Up Display	If this item checked, the Head-Up display will be activated.
Display Height	Adjust the height (1 ~ 20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5 ~ +5) of the HUD rotation.
Brightness	Adjust the intensity (1 ~ 20) of the HUD brightness.
Contents Selection	If below items are checked, the items will be activated. Turn by Turn Traffic Signs Driving Convenience Info Blind-Spot Safety Info Radio/Media Info

* The information provided may differ depending on which functions are applicable to your vehicle. For more details, refer to More Details.

Cluster

Items	Explanation
Fuel Econ. Reset	If this item checked, the average fuel economy will reset automatically after refueling or after ignition.
Wiper/Lights Display	If this item checked, the Wiper/Lights Display will be activated.
Traffic Signs (if equipped)	If this item checked, the Traffic Signs will be activated.
Icy Road Warning	If this item checked, the Icy Road Warning display will be activated.
Welcome Sound (if equipped)	If this item checked, the Welcome Sound will be activated.
Theme Selection (if equipped)	Theme A/Theme B/Theme C To select the theme of instrument cluster LCD.
Blind-Spot View	To activate or deactivate Blind-Spot View function. * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

Lights

Items	Explanation
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Ambient Light Brightness (if equipped)	Off/Level 1,2,3,4 To adjust the brightness of the Ambient Light.
Ambient Light Color (if equipped)	Blue Flight/Peaceful Forest/Dreamy Purple/Aurora Violet/Orange Delight/Golden Insight/Refreshing Sea To select the color of the Ambient Light.
Ambient Lighting (if equipped)	To activate or deactivate the Ambient Lighting.
Headlight Delay (if equipped)	To activate or deactivate the headlight delay function.
High Beam Assist	To activate or deactivate High Beam Assist function. * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

Door

Items	Explanation
Auto Lock	Enable on shift : All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (with the engine ON, it is activated.) Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph).
Auto Unlock	On shift to P : All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (with the engine ON, it is activated.) Vehicle off : All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position. Off : The auto door unlock operation will be canceled.
2 Press Unlock	If this item is checked, the two press unlock will be activated.Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.
Power Liftgate (if equipped)	To activate or deactivate the Power Liftgate. * For more details, refer to More Details.
Power Liftgate Opening Speed (if equipped)	Fast/Normal To adjust the Power Liftgate Opening Speed.
Power Liftgate Opening Height (if equipped)	Full Open/Level 3, 2, 1/User Height Setting To adjust the Power Liftgate Opening Height.
Smart Liftgate (if equipped)	To activate or deactivate the Smart Liftgate. * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

Convenience (if equipped)

Items	Explanation
Seat Easy Access (if equipped)	Off/Normal/Extended To select the function. * For more details, refer to More Details.
Steering Easy Access (if equipped)	To activate or deactivate the Steering Easy Access function. * For more details, refer to More Details.
Rear Occupant Alert (if equipped)	To activate or deactivate Rear Occupant Alert function. * For more details, refer to More Details.
Welcome Mirror/Light (if equipped)	To activate or deactivate the Welcome Mirror/Light function.
Wireless Charging System (if equipped)	To activate or deactivate the Wireless Charging System function. * For more details, refer to More Details.
Service Interval	Enable Service Interval : If this item is checked, the Service Interval function will be activated. Adjust Interval : If the Service Interval menu is activated, you may adjust the time and distance. Reset : To reset the Service Interval function.
Lateral seat support enhancement (if equipped)	If this item checked, it increase lateral seat bolster support.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.
The fuse switch is turned off.

NOTICE

To use the service interval menu, consult an authorized Kia dealer.

Units

Items	Explanation
Speed Unit	MPH, km/h To select the Speedometer unit.
Temperature Unit	°F/°C To select the Temperature unit.
Fuel Econ. Unit	US gallon, UK gallon or L/100km, km/L To select the Fuel economy unit.
Torque Unit (if equipped)	lb-ft, Nm To select the torque unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit.
Turbo Boost Pressure Unit (if equipped)	psi, kPa, bar To select the Turbo Boost Pressure unit.

* The information provided may differ depending on which functions are applicable to your vehicle.

Language

Items	Explanation
Language	To select language.

Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode.

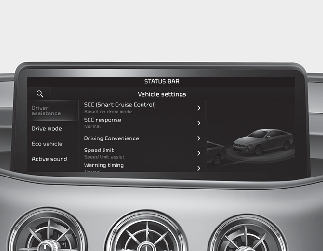

Vehicle Setup (For Infotainment System equipped vehicle)

Vehicle Settings in the infotainment system provides user options for a variety of settings including door lock/unlock features, convenience features, driver assistance settings, etc.

Vehicle Setup menu

Driver Assistance
Drive Mode
Head-Up Display
Cluster
Climate
Seat
Lights
Door
Convenience
Default

The information provided may differ depending on which functions are applicable to your vehicle.

* For detailed information, scan the QR code in a separately supplied Car Infotainment System Quick Reference Guide.

WARNING

Do not operate the Vehicle Settings while driving. This may cause distraction resulting in an accident.
