Suitability of each seating position for Belted & ISOFIX Child Restraint Systems according to UN regulations (Except Europe)
-
Yes : Suitable for fitment of the designated category of CRS
-
No : Not suitable for fitment of the designated category of CRS
-
“-” : Not applicable
|
CRS categories |
Seating positions |
|||||||
|---|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 |
5 |
6 |
|||
|
Airbag ON |
Airbag Off |
|||||||
|
Universal belted CRS |
All mass groups |
- |
- |
No |
Yes (F) |
Yes 1)(F, R) |
No |
Yes 1) (F, R) |
|
i-size CRS |
ISOFIX CRF:F2, F2X, R1, R2 |
- |
- |
No |
No |
No |
No |
No |
|
Carry-cot (ISOFIX lateral facing CRS) |
ISOFIX CRF:L1, L2 |
- |
- |
No |
No |
No |
No |
No |
|
ISOFIX infant* CRS (*: ISOFIX baby CRS) |
ISOFIX CRF:R1 |
- |
- |
No |
No |
Yes (R) |
No |
Yes (R) |
|
ISOFIX toddler CRS - small |
ISOFIX CRF:F2, F2X, R2, R2X |
- |
- |
No |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
ISOFIX toddler CRS – large* (*: not booster seats) |
ISOFIX CRF:F3, R3 |
- |
- |
No |
No |
Yes 2)(F, R) |
No |
Yes 2) (F, R) |
|
Booster Seat – reduced Width |
ISO CRF: B2 |
- |
- |
No |
No |
Yes |
No |
Yes |
|
Booster Seat – full Width |
ISO CRF: B3 |
- |
- |
No |
No |
Yes |
No |
Yes |
F : Forward facing, R : Rearward facing
1): To install Universal CRS to 2nd row outer seating positions, 1st row seat should be adjust forward properly.
2): For installation of ISOFIX Large rearward facing toddler CRS, please note below
- Driver’s seat: the driver’s seat should be moved to mid position and then the seat height should be adjusted to the highest position.
- Front passenger seat: the forward passenger’s seat should be moved forward properly
|

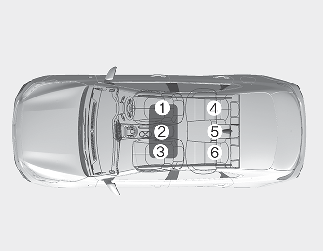

Seat Number |
Position in the vehicle |
Seating positions |
|---|---|---|
|
1 |
Front right |
 |
|
2 |
Front centre |
|
|
3 |
Front left |
|
|
4 |
2nd row left |
|
|
5 |
2nd row centre |
|
|
6 |
2nd row right |
* If the vehicle headrest prevents proper installation of a CRS, the headrest of the seating position shall be readjusted or entyrely removed
* Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
Recommended child restraint systems – For Europe
|
Mass Group |
Size Class |
Fixture |
Name |
Manufacturer |
Type of Fixation |
ECE-R44Approval No. |
|---|---|---|---|---|---|---|
|
Group 0-1 (0 ~ 13kg) |
E |
ISO/R1 |
Baby Safe Plus |
Britax Römer |
Reward facing with ISOFIX base |
E1 04301146 |
|
Group 1 (9 ~ 18kg) |
B1 |
ISO/F2X |
Duo Plus |
Britax Römer |
Forward facing with vehicle ISOFIX lower anchorage + Top tether |
E1 04301133 |
CRS Manufacturer information
Britax Römer http://www.britax.com
