Rear View Monitor (RVM) (if equipped)
Rear View Monitor is a supplemental function that shows the area behind the vehicle on the infotainment system screen to assist you when parking or backing up.

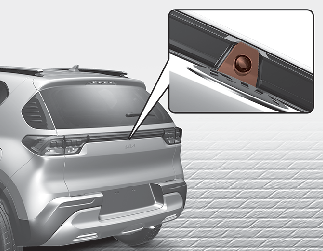

Detecting sensor
Refer to the picture above for the detailed location of the detecting sensor.
Rear View Monitor settings
With the vehicle on select the setup icon (
) on the screen from the infotainment system screen to change the Rear View Monitor settings.
Rear view
Rear View Monitor with parking guidance will activate when the engine is running and the shift lever is in the R (Reverse) position.
-
This function is a supplementary function only. It is the responsibility of the driver to always check the inside/outside rearview mirror and the area behind the vehicle before and whilst backing up because there is a dead zone that can't be seen through the camera.
-
Always keep the camera lens clean. If lens is covered with foreign matter, the camera may not operate normally.
- Contains Topics
- Top view
- Extended Rear View Monitor
- Rear view whilst driving (DRVM)
