LCD displays

LCD displays show the following information to drivers.

Trip information
LCD modes
Warning messages

Trip information (trip computer)

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

NOTICE

Some driving information stored in the trip computer resets if the battery is disconnected.

Trip Modes

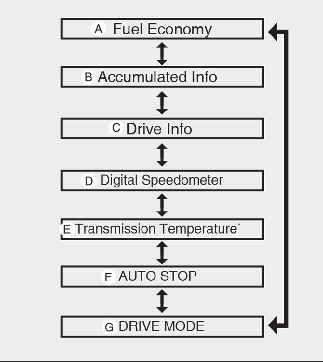

Conventional Cluster (Type A)

A: Fuel Economy

B: Accumulated Info

C: Drive Info

D: Digital Speedometer

E: Transmission Temperature

F: AUTO STOP

G: DRIVE MODE

Full LCD Cluster (Type B)

A: Fuel Economy

B: Drive Info After Refueling

C: Accumulated Info

D: Digital Speedometer (Utility)

E: AUTO STOP (Utility)

F: DAW (Utility)

G: TPMS (Utility)

H: DRIVE MODE (Utility)

I: Utility

To change the trip mode, scroll the toggle the switch ( / ) on the steering wheel.

Fuel economy (for Conventional Cluster (Type A))

Average Fuel Economy (1)

The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.
- Fuel economy range: 0~99.9 km/L, L/100 km
The average fuel economy can be reset both manually and automatically.

* The Average Fuel Economy menu is only shown in Type A cluster.

Manual reset

To clear the average fuel economy manually, press the OK button on the steering wheel for more than 1 second when the average fuel economy is displayed.

Automatic reset

To make the average fuel economy be reset automatically whenever refueling, select the "Fuel economy auto reset" mode in User Setting menu of the LCD Windows.

OFF - You may set to default manually by using the trip switch reset button.
After ignition - The vehicle will automatically set to default once 4 hours pass after the Ignition is in OFF.
After refueling - After refueling more than 6 liters and driving over 1 km/h, the vehicle will reset to default automatically.

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 50 m since the ENGINE START/STOP button is turned to ON.

Instant Fuel Economy (2)

This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 10 km/h.
- Fuel economy range:

  0.0~30 km/L, L/100 km

Accumulated driving information mode

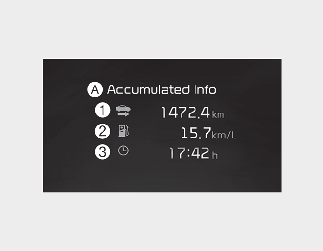

This display shows the accumulated trip distance (1), the average fuel efficiency (2), and the total driving time (3).

A: Accumulated Info

Trip
Average
Timer

Accumulated information is calculated after the vehicle has run for more than 300 m.
If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Drive Info display

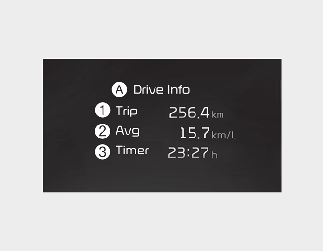

This display shows the trip distance (1), the average fuel efficiency (2), and the total driving time (3) information once per one ignition cycle.

A: Drive Info

Trip
Average
Timer

Fuel efficiency is calculated after the vehicle has run for more than 300 m.
The Driving Information will be reset 4 hours after ignition has been turned off. So, when the vehicle ignition is turned on within 4 hours, the information will not be reset.
If you press "OK" button for more than 1 second after the Driving Information is displayed, the information will be reset.
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTICE

The vehicle must be driven for a minimum of 300 m since the last ignition cycle before the average accumulated driving information is recalculated.

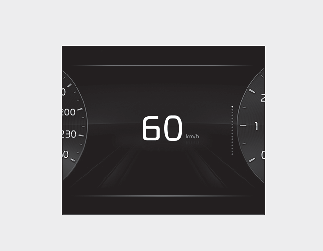

Digital speedometer

This digital speedometer display shows the speed of the vehicle.

Driving info display

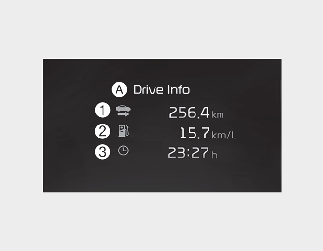

At the end of each driving cycle, the Driving Info message is displayed.

A: Drive Info

Trip
Average
Timer

This display shows the trip distance, average fuel economy, and driving time.

This information is displayed for a few seconds when you turn off the vehicle, and then goes off automatically. The information is calculated for each time the vehicle is turned on.

NOTICE

If sunroof open warning is displayed in the cluster, the Driving Information message may not be displayed.

LCD display messages

Door, hood, trunk, sunroof open

This warning is displayed indicating which door, the hood, the trunk or the sunroof is open.

CAUTION

Before driving the vehicle, you should confirm that the door/hood/sunroof is fully closed. Also, check there is no door/hood/trunk/sunroof open warning light or message displayed on the instrument cluster.

Low Pressure warning display

A: Low tire pressure

This warning message is displayed if the tire pressure is low. The corresponding tire on the vehicle will be illuminated.

* For more details, refer to More Details.

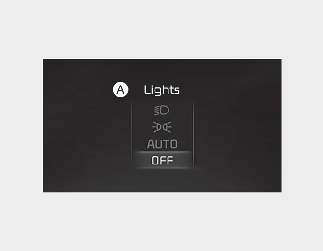

Lights mode

A: Lights

This indicator displays which exterior light is selected using the lighting control.

You can activate or deactivate Wiper/Lights Display function from the infotainment system screen.

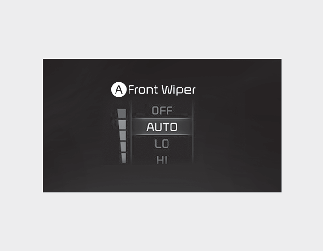

Wiper mode

A: Front Wiper

This indicator displays which wiper speed is selected using the wiper control.

You can activate or deactivate Wiper/Lights Display function from the infotainment system screen.

Engine has overheated

This warning message illuminates when the engine coolant temperature is above 120 °C. This mean that the engine is overheated and may be damaged.

* If your vehicle is overheated, refer to More Details.

Low key battery

This warning message illuminates if the battery of the smart key is discharged when the ENGINE START/STOP button changes to the OFF position.

Press START button while turning wheel

This warning message illuminates if the steering wheel does not unlock normally when the ENGINE START/STOP button is pressed.
It means that you should press the ENGINE START/STOP button while turning the steering wheel right and left.

Steering wheel unlocked

This warning message illuminates if the steering wheel does not lock when the ENGINE START/STOP button changes to the OFF position.

Check steering wheel lock system

This warning message illuminates if the steering wheel does not lock normally when the ENGINE START/STOP button changes to the OFF position.

Key not in vehicle

This warning message illuminates if the smart key is not in the vehicle when you press the ENGINE START/STOP button.
It means that you should always have the smart key with you.

Key not detected

This warning message illuminates if the smart key is not detected when you press the ENGINE START/STOP button.

Shift to P or N to start engine

This warning message illuminates if you try to start the engine with the shift dial not in the P (Park) or N (Neutral) position.

Press brake pedal to start engine

This warning message illuminates if the ENGINE START/STOP button changes to the ACC position twice by pressing the button repeatedly without depressing the brake pedal.
It means that you should depress the brake pedal to start the engine.

Battery discharging due to external electrical devices

The vehicle can detect self-discharge of the battery due to over-current that is generated by unauthorized electrical devices such as dashboard camera (dash cam) mounting during parking.

If the warning continues even after external electrical devices are removed, we recommend that the vehicle be inspected by an authorized Kia dealer.

Press start button again

This warning message illuminates if you can not operate the ENGINE START/STOP button when there is a problem with the ENGINE START/STOP button system.
It means that you could start the engine by pressing the ENGINE START/STOP button once more.
If the warning illuminates each time you press the ENGINE START/STOP button, have the vehicle inspected by an authorized Kia dealer.

Press start button with key

This warning message illuminates if you press the ENGINE START/STOP button while the warning message "Key not detected" is illuminating.
At this time, the immobilizer indicator light blinks.
