Opening the bonnet
-

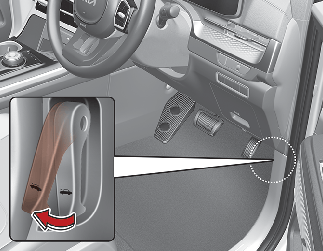

Pull the release lever to unlatch the bonnet. The bonnet should pop open slightly.
WARNINGOpen the bonnet after turning off the engine on a flat surface, shifting the gear to the P (Park) position and setting the parking brake.
-

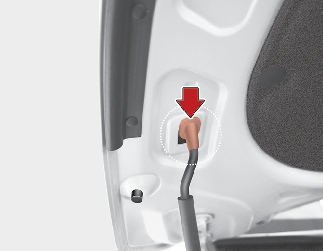

Go to the front of the vehicle, raise the bonnet slightly, push the secondary hood release lever (1) up side and lift the bonnet (2).
-
Pull out the support rod.
-
Hold the bonnet opened with the support rod.
Support rod
-
After driving, the engine compartment and support rod will be hot. Grasp the support rod in the area wrapped in rubber to prevent burns.
-
The support rod must be inserted completely into the hole provided whenever you inspect the engine compartment. This will prevent the bonnet from falling and possibly injuring you.
Bonnet open warning
The bonnet warning message will appear on the LCD display when bonnet is open.
The warning chime will operate when the vehicle is being driven at or above 3 km/h (2 mph) with the bonnet open.
