Operating relaxation comfort seat

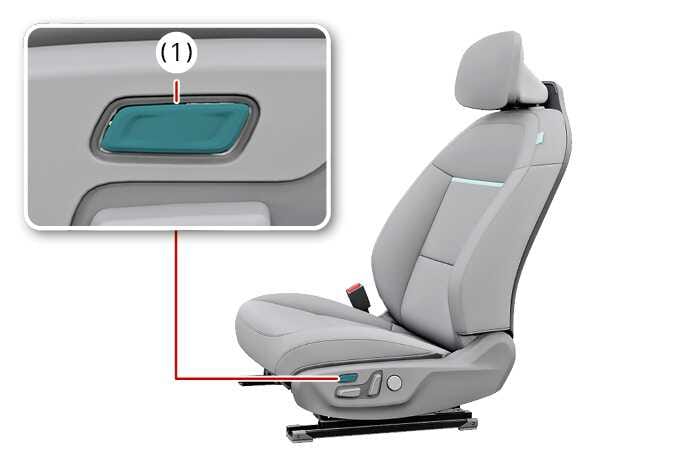

Figure 1. Driver’s seat
N_CT25B010_1

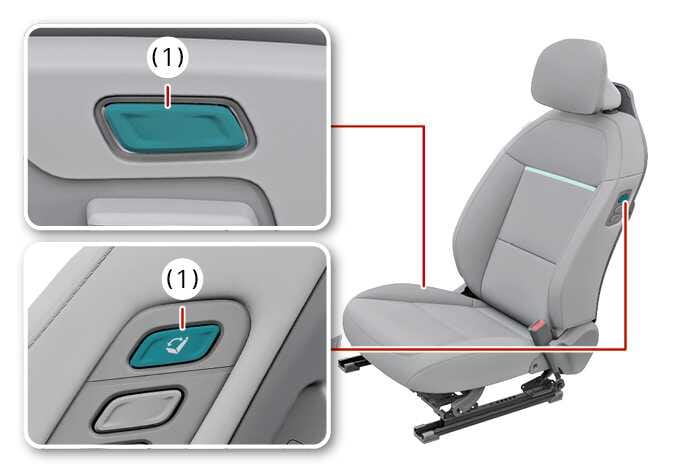

Figure 2. Passenger’s seat
N_CT25B012_2

Simple operation

  • Press the rear portion of the switch (1) more than 0.5 second.

  • If the seat adjustment switch (reclining, cushion height) is operated during relaxation comfort seat operating, the operation will stop.

Operation

  1. Press the rear portion of the switch (1) more than 0.5 second.

  2. If the seat adjustment switch (reclining, cushion height) is operated during relaxation comfort seat operating, the operation will stop.

  3. After the operation is complete, it can be adjusted more using the seat adjustment switch for a more comfortable posture.

Operating conditions

Driver’s seat

  • EV button is POWER ON or DRIVE READY position.

  • P (Park) gear position is selected.

  • Driver’s side rear seat seatbelt is not fastened

Passenger’s seat

  • EV button is POWER ON or DRIVE READY position

  • Passenger’s side rear seat seatbelt is not fastened
