Replacing lights

If the LED lamp is not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

CAUTION

If the high-mounted stop lamp (LED) is not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing front lights (LED type)

If the front lights are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner.

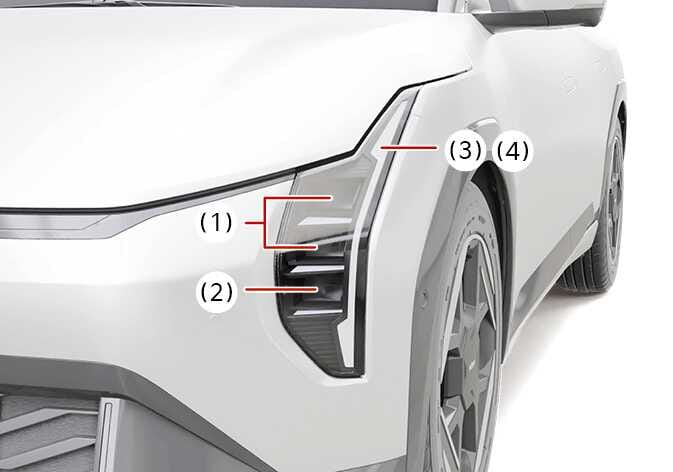

Figure 1. Type A
N_CT25G024
Figure 2. Type B
N_CT25G025

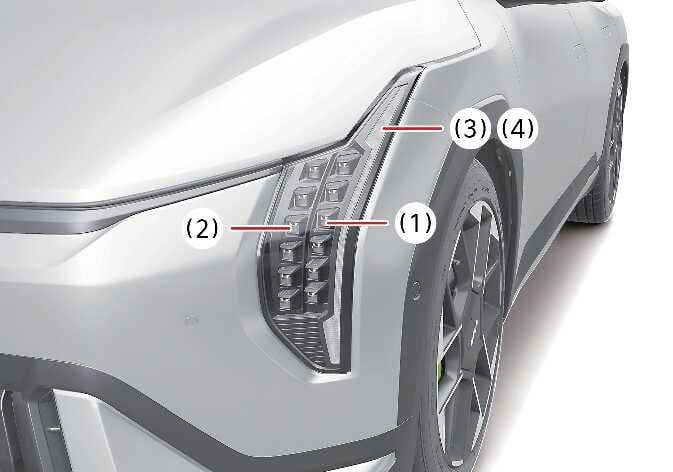

Figure 3. Type C
P_CT27_C12_001

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Front turn signal lamp (LED type)

  4. Day time running lamp/Position lamp (LED type)

Replacing rear/side lights (LED type)

If the rear/side lights are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner.

*: if equipped
N_CT25G026
P_CT27_C12_002
N_CT25G028
N_CT25G030
N_CT25G029
Figure 4. Back up lamp/Rear fog lamp (Type A)
M_CT27_C12_001
Figure 5. Back up lamp/Rear fog lamp (Type B-GT-line)
M_CT27_C12_002
Figure 6. Back up lamp/Rear fog lamp (Type C-GT)
M_CT27_C12_003

  1. Tail lamp (LED type)

  2. Stop lamp (LED type)

  3. Rear turn signal lamp (LED type)

  4. High mounted stop lamp (LED type)

  5. Side repeater lamp (LED type)

  6. License plate lamp (LED type)

  7. Back up lamp/Rear fog lamp* (LED type)

Replacing interior lights (LED type)

If the interior lights are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner.

Figure 7. Map lamp
M_CT27_A12_008_ER
Figure 8. Room lamp
N_CT25C161
Figure 9. Vanity mirror lamp
N_CT25C162_1
Figure 10. Luggage room lamp
N_CT25C166_1

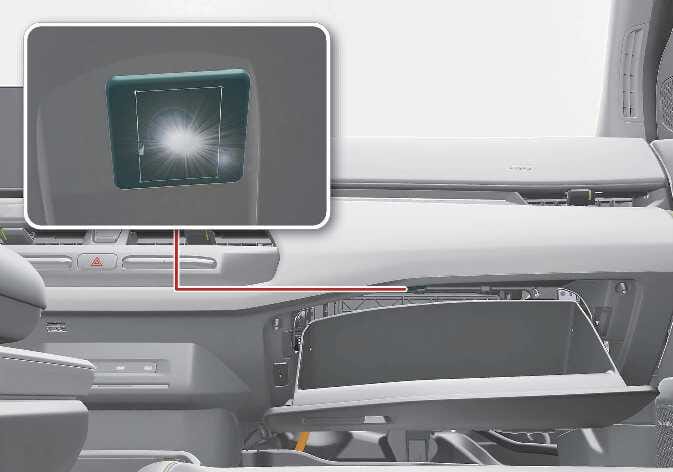

Figure 11. Glove box lamp
P_CT27_D08_008_1
Figure 12. Ambient light (if equipped)
N_CT25C009
