Examples of ICCB charging current setting

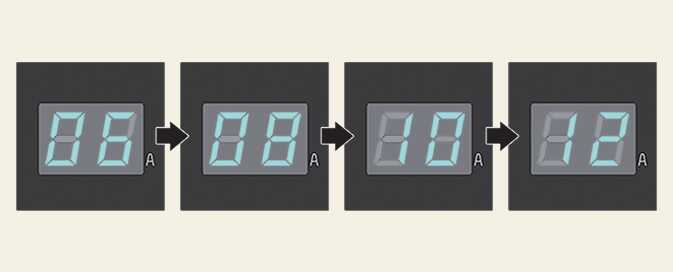

Figure 1. Control box display window
OCVQ011023L

Outlet Current

ICCB Charge Level

14~16 A

12A

12~13 A

10A

10~11 A

8A

8~9 A

6A

CAUTION

Please make sure that charge level selection matches the capacity of your circuit breaker to avoid blown fuse.

NOTE

(Examples are only for reference and situations may vary depending on the surrounding environment.)
