LCD display modes

You can switch modes by pressing the Mode button

View

Description

Driving Assist view

Displays information related to Driver assistance system

Navigation view

Displays information related to navigation system

Utility information view

Displays information related to driving, warning, etc.

Driving assist view

This mode displays the state of:

  • Lane Keeping Assist

    Smart Cruise Control (if equipped)

    Navigation-based Smart Cruise Control (if equipped)

    Lane Following Assist

    Highway Driving Assist (if equipped)

* For more details, refer to each system information in More Details.

Navigation view

This mode displays the state of the navigation.

Utility information view

Drive Info display

This display shows the trip distance (1), the total driving time (2), and the average fuel efficiency (3) information once per one ignition cycle.

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • Fuel efficiency is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If opening the driver's door after turning off the engine or 3 minutes passes after restarting the engine, Driving Information is reset.

  • If you press "OK" button for more than 1 second after the Driving Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTICE

The vehicle must be driven for a minimum of 0.219 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.

Fuel economy

  1. Average Fuel Economy

  2. Instant Fuel Economy

Average Fuel Economy

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

    • Fuel economy range: 0 – 99.9 MPG or L/100km, km/L

  • The average fuel economy can be reset both manually and automatically.

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 0.19 miles (300 meters) after the ENGINE START/STOP button is turned to ON.

Instant Fuel Economy

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 5 MPH (8 km/h).

    • Fuel economy range:

      0–50 MPG or 0–30 L/100km, km/L

Information since refueling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

A: Sine Refueling

  1. Trip

  2. Timer

  3. Avg.

  • Information since refueling is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the information since refueling is displayed, the information will be reset.

    When driving after refueling, the information will be automatically reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Accumulated driving information mode

This display shows the accumulated trip distance (1), the average fuel efficiency (2), and the total driving time (3).

A: Since Last Reset

  1. Trip

  2. Timer

  3. Avg.

  • Accumulated information is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

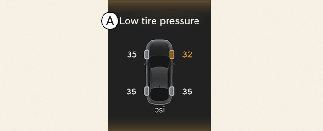

Low tire pressure warning display

A: Low tire pressure

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

Driving force distribution (AWD) (if equipped)

A: Drive Power Distribution

This mode displays information related to Driving force distribution.
