Engine compartment

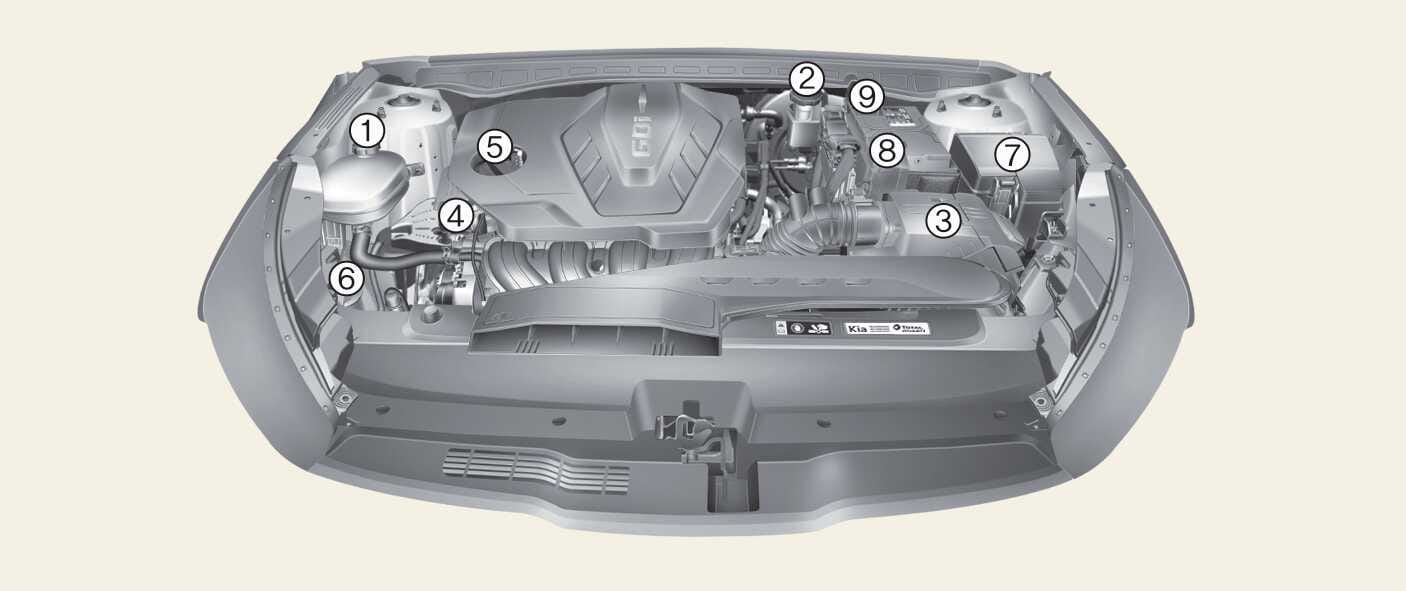

Figure 1. Smartstream G2.5 GDi
ODL3073059L

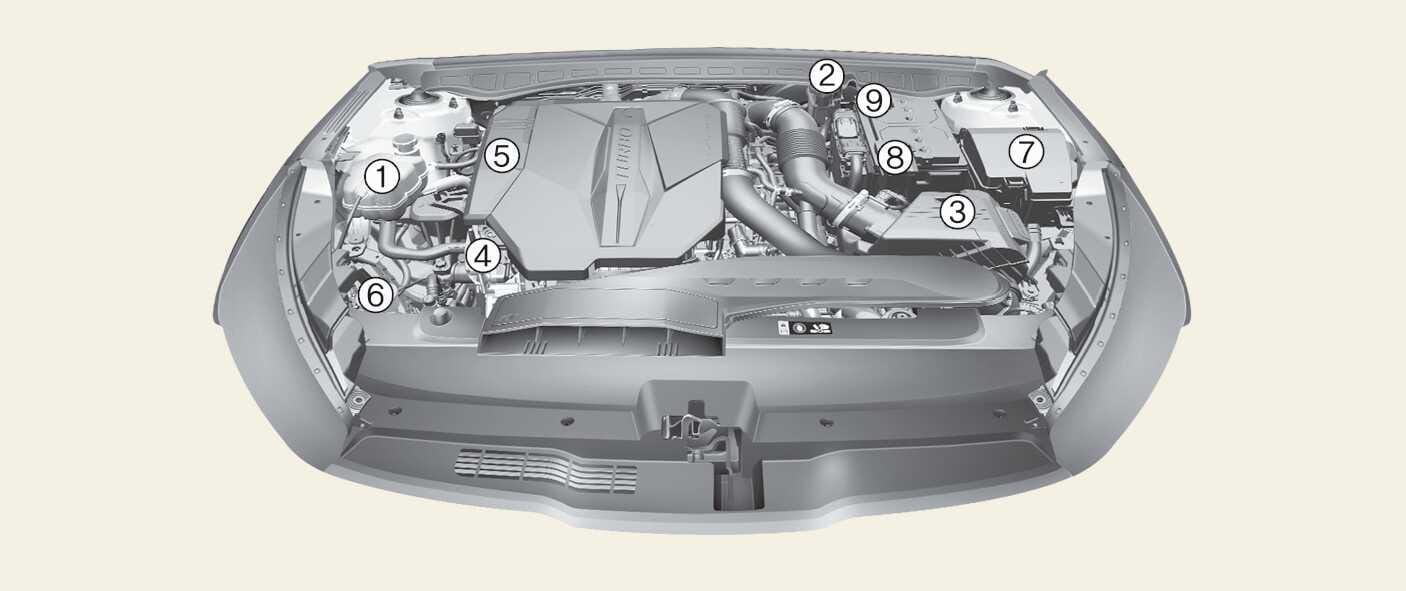

Figure 2. Smartstream G2.5 T-GDi
ODL3074081N

The actual engine compartment in your Kia may differ from the illustration.

  1. Engine coolant reservoir

  2. Brake fluid reservoir

  3. Air cleaner

  4. Engine oil dipstick

  5. Engine oil filler cap

  6. Windshield washer fluid reservoir

  7. Fuse box

  8. Positive battery terminal

  9. Negative battery terminal
