Engine compartment

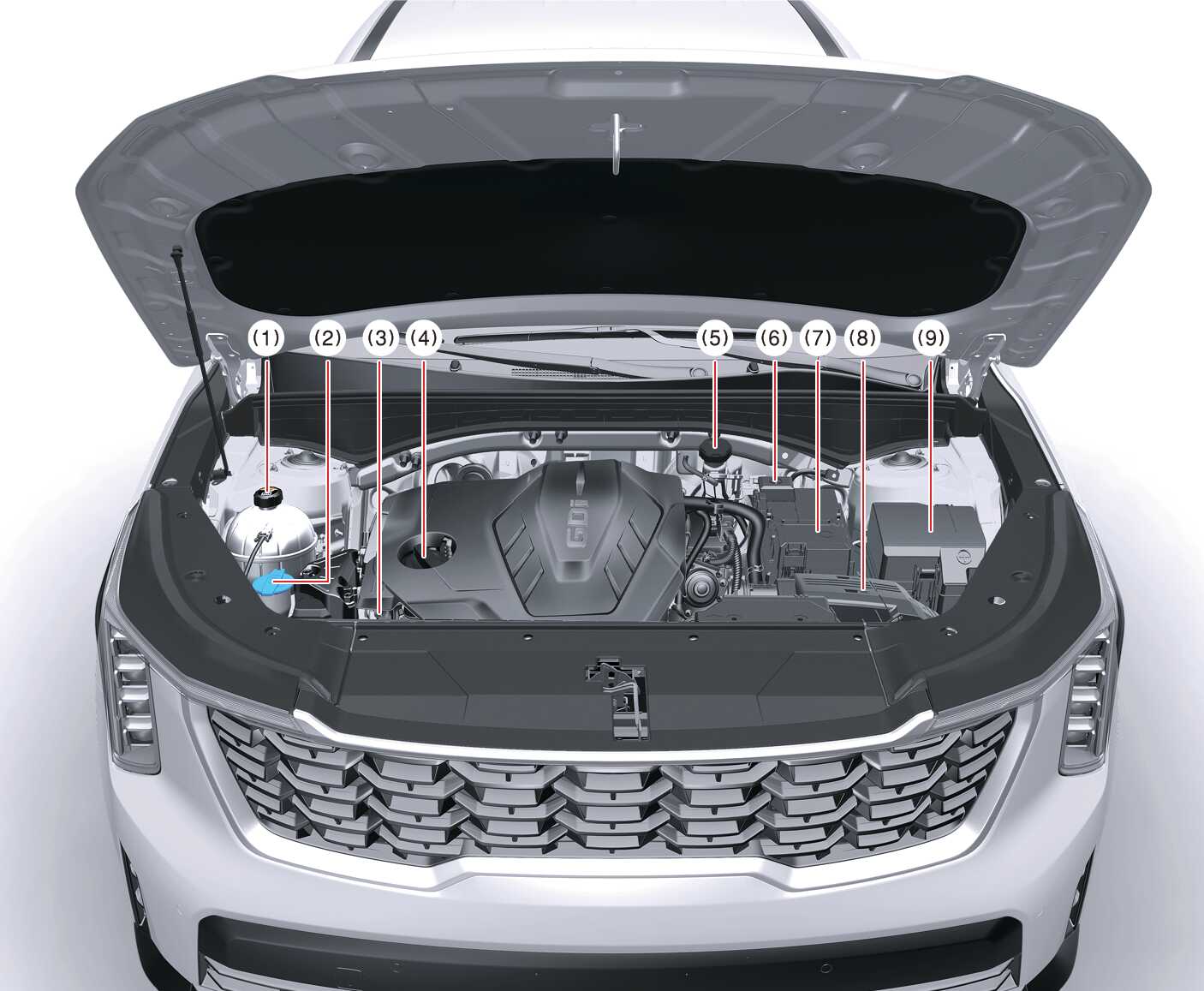

Figure 1. Smartstream G2.5 GDi (Gasoline)
OMQ4A075001

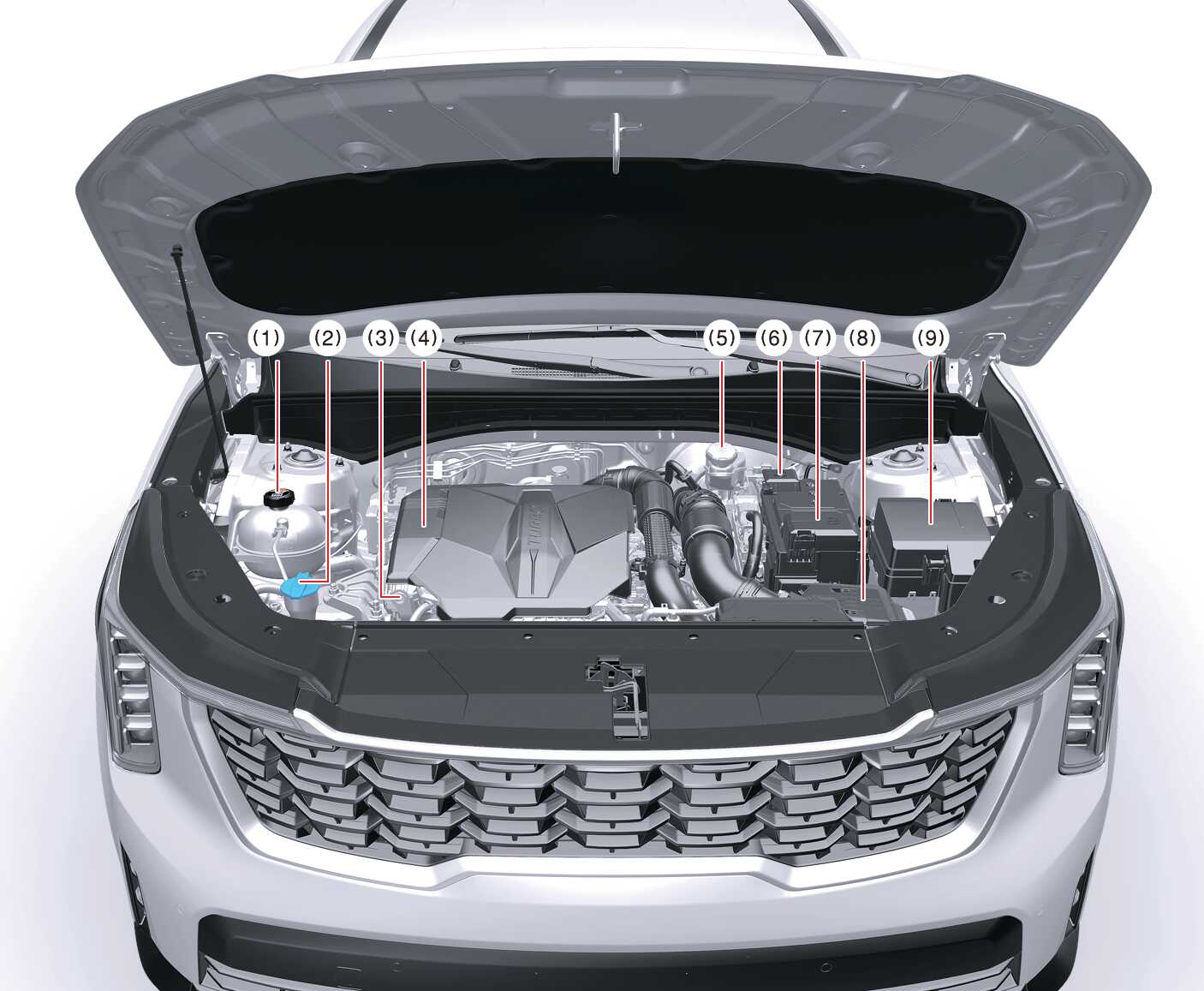

Figure 2. Smartstream G2.5 T-GDi (Gasoline)
OMQ4A075047

The actual engine compartment in your Kia may differ from the illustration.

  1. Engine coolant reservoir

  2. Windshield washer fluid reservoir

  3. Engine oil dipstick

  4. Engine oil filler cap

  5. Brake fluid reservoir

  6. Positive battery terminal

  7. Negative battery terminal

  8. Air cleaner

  9. Fuse box
