Overview

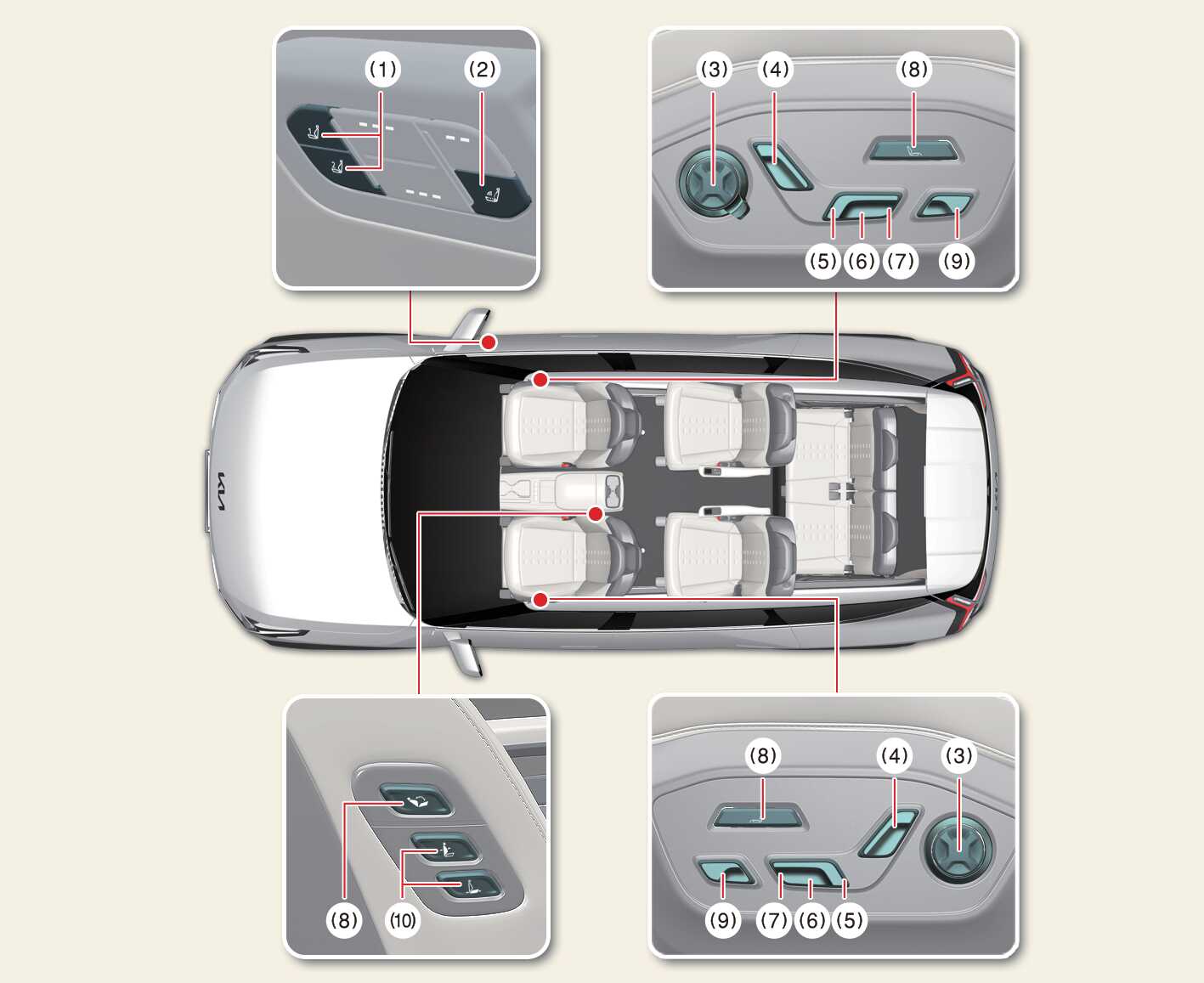

Figure 1. Front seat
OMV024045R_4

The shape and arrangement of the lever/switch/button may differ in accordance with the applied specifications or regions.

  1. Integrated memory system*

  2. Comfort stretching*

  3. Lumbar support/bolster seat*

  4. Seatback angle

  5. Seat cushion height

  6. Forward and backward

  1. Seat cushion tilt/relaxion tilt*

  2. Relaxion comfort seat*

  3. Leg support/cushion support*

  4. Walk-in seat

: if equipped

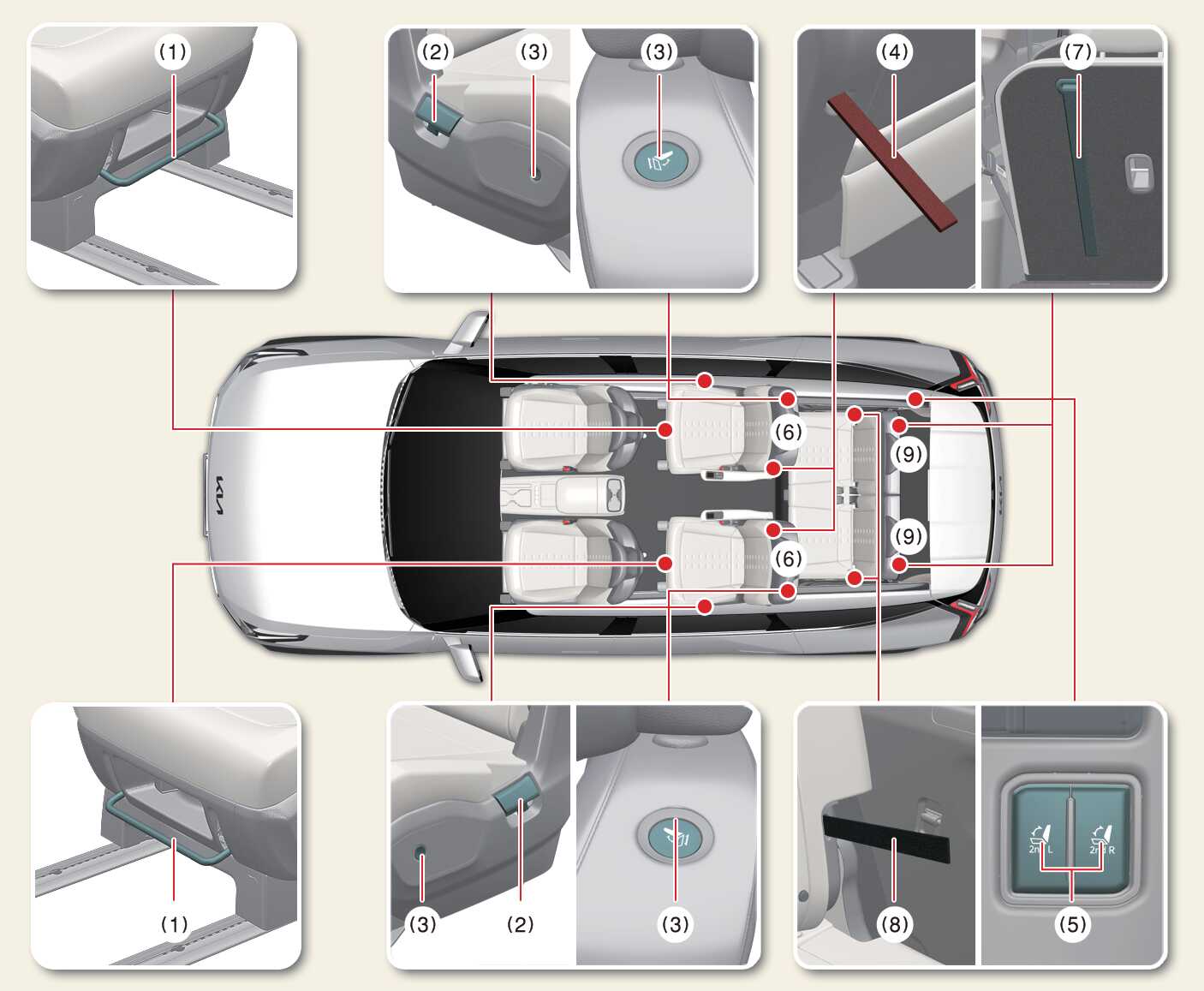

Figure 2. Rear seat (6 seats/7 seats)
OMV044052L_10

The shape and arrangement of the lever/switch/button may differ in accordance with the applied specifications or regions.

* Centre seat and armrest in the 2nd row is equipped only for the 7 seats.

2nd row seats

  1. Forward and backward

  2. Seatback angle

  3. Walk-in switch

  4. Emergency strap folding

  5. Seatback folding

  6. Headrest

3rd row seats

  1. Seatback folding

  2. Seatback angle

  3. Headrest

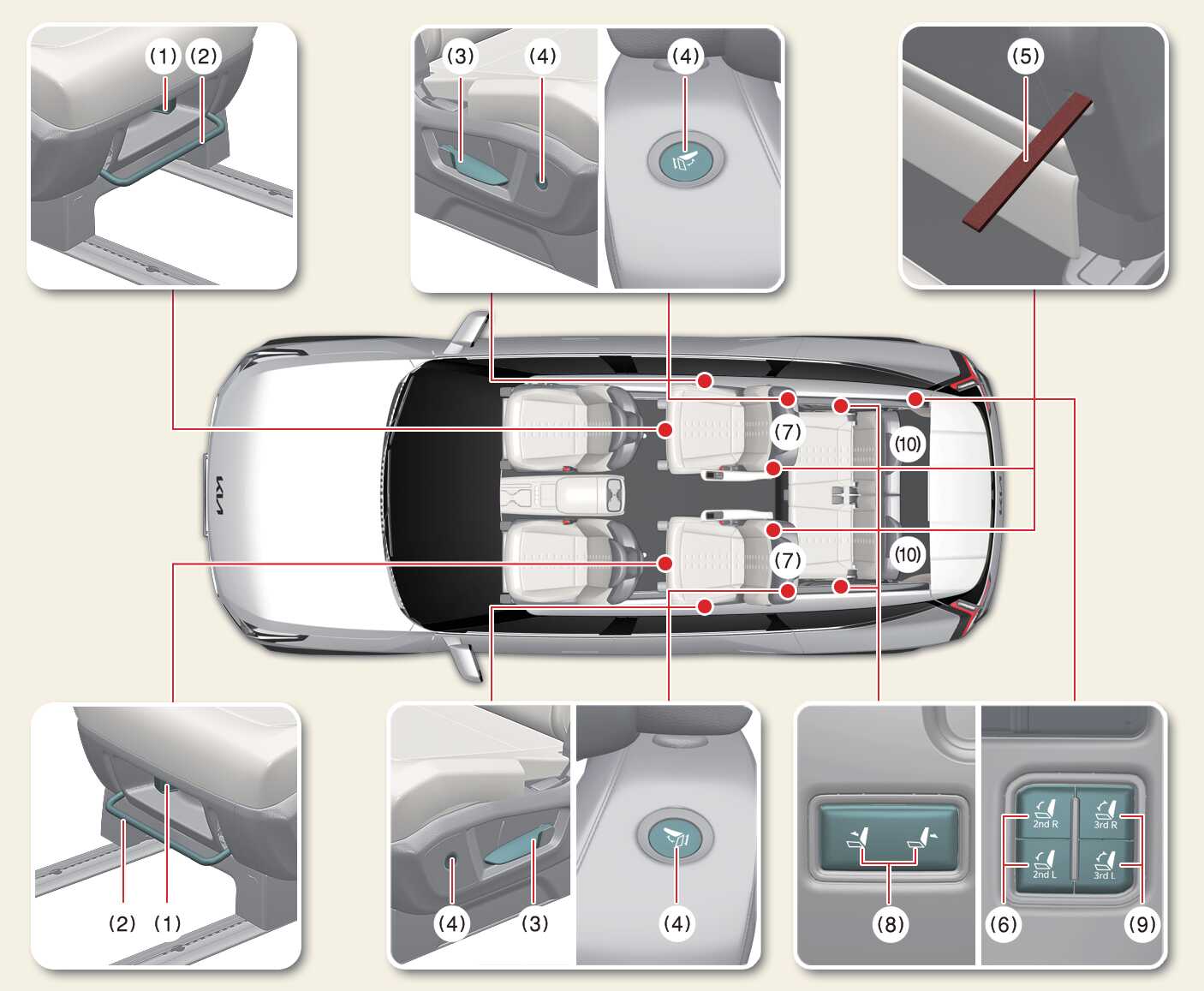

Figure 3. Rear seat (6 seats with swiveling)
OMV024013L_9

The shape and arrangement of the lever/switch/button may differ in accordance with the applied specifications or regions.

2nd row seats

  1. Seat swiveling

  2. Forward and backward

  3. Seatback angle

  4. Walk-in switch

  5. Emergency strap folding

  6. Seatback folding

  7. Headrest

3rd row seats

  1. Seatback angle

  2. Seatback folding

  3. Headrest

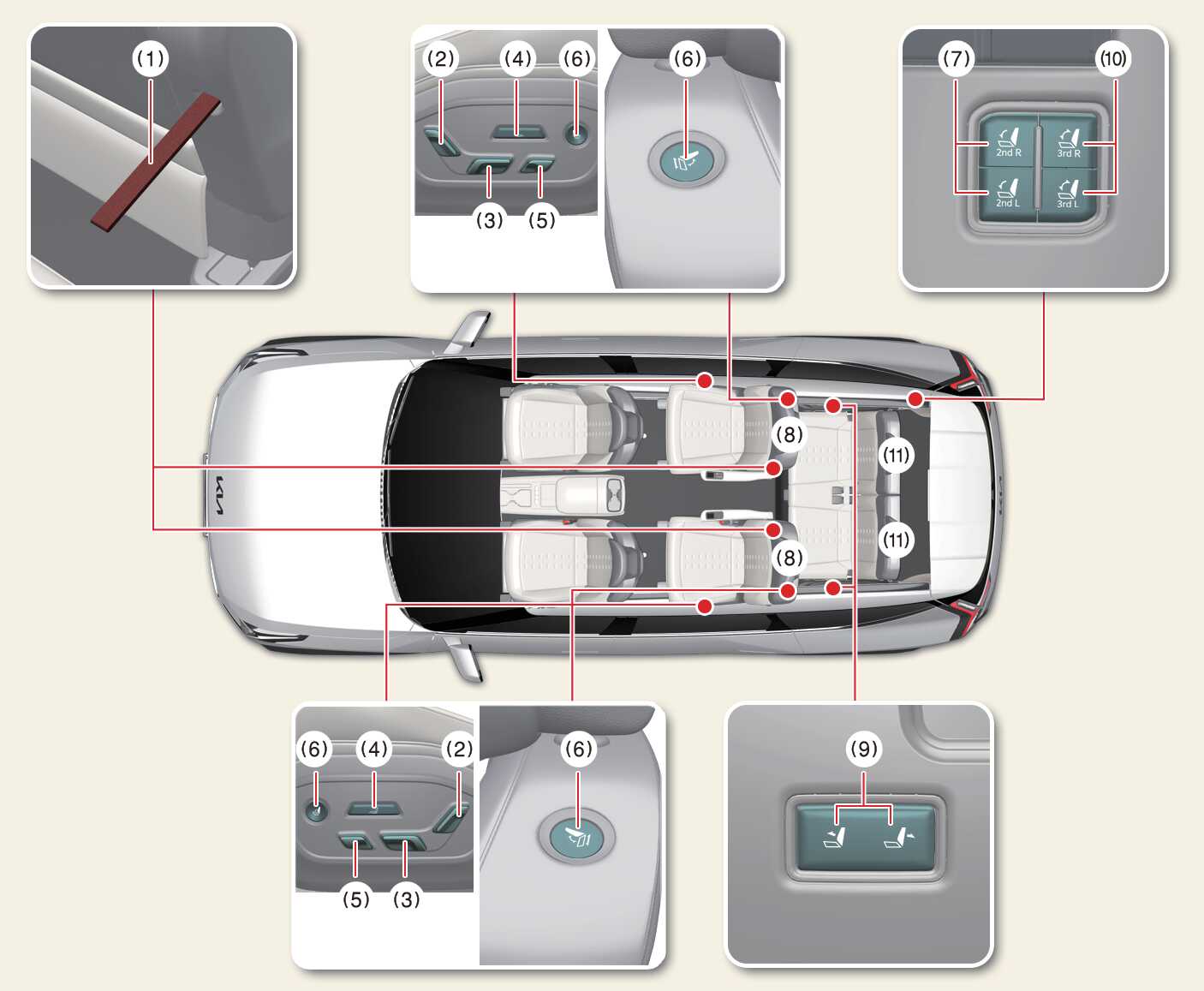

Figure 4. Rear seat (6 seats with relaxion comfort)
OMV034037L_7

The shape and arrangement of the lever/switch/button may differ in accordance with the applied specifications or regions.

2nd row seats

  1. Emergency strap folding

  2. Seatback angle

  3. Forward and backward/cushion tilt

  4. Relaxion comfort seat

  5. Leg support

  6. Walk-in switch

  7. Seatback folding

  8. Headrest

3rd row seats

  1. Seatback angle

  2. Seatback folding

  3. Headrest
