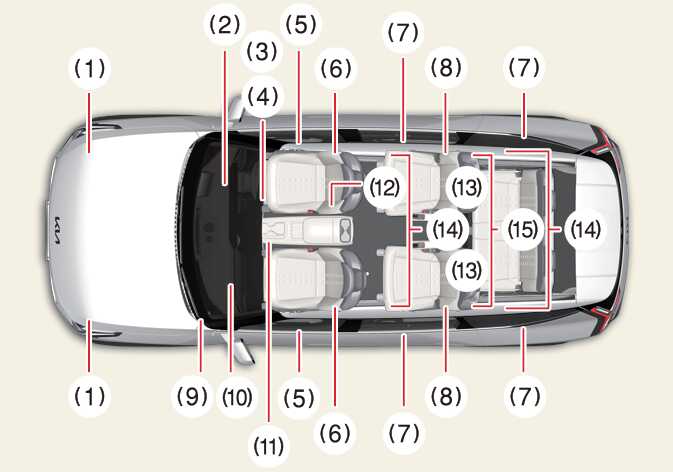

SRS components and functions

OMV024024R

  1. Front impact sensors

  2. Driver's knee airbag module*

  3. Air bag warning light

  4. Driver's front air bag module

  5. Side pressure sensors

  6. Front side air bag modules

  7. Side impact sensors

  8. 2nd row seat side airbag module

  9. Passenger's front air bag ON/OFF switch

  10. Passenger's front air bag module

  11. SRS control module (SRSCM)/rollover sensor

  12. Driver's centre side air bag module

  13. Swiveling seat detection sensor (if 6-seater swiveling seats are equipped)

  14. Retractor pre-tensioner assemblies

  15. Curtain air bag modules

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

* : if equipped

Operating condition(s)

  • When EV button is in ON position, the SRS air bag warning light will appear for approximately 6 seconds and go out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer/service partner.

  • The light does not turn on briefly when you turn the vehicle ON.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on whilst the vehicle is in motion.

  • The light blinks when the vehicle is in ON position.
