Overview

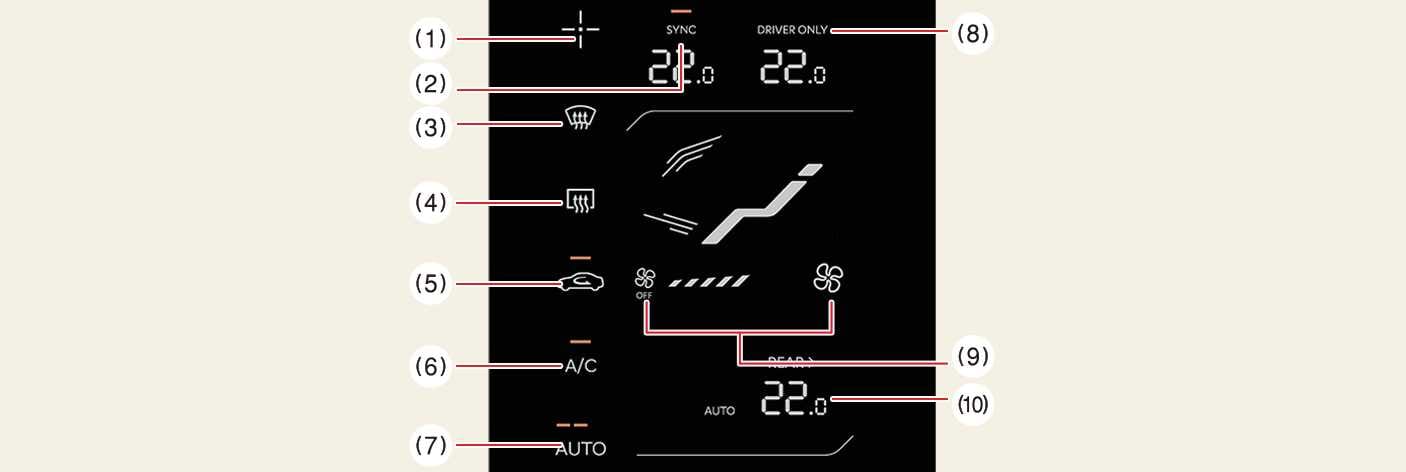

Figure 1. Front seat (Climate control display)
OMV054140R

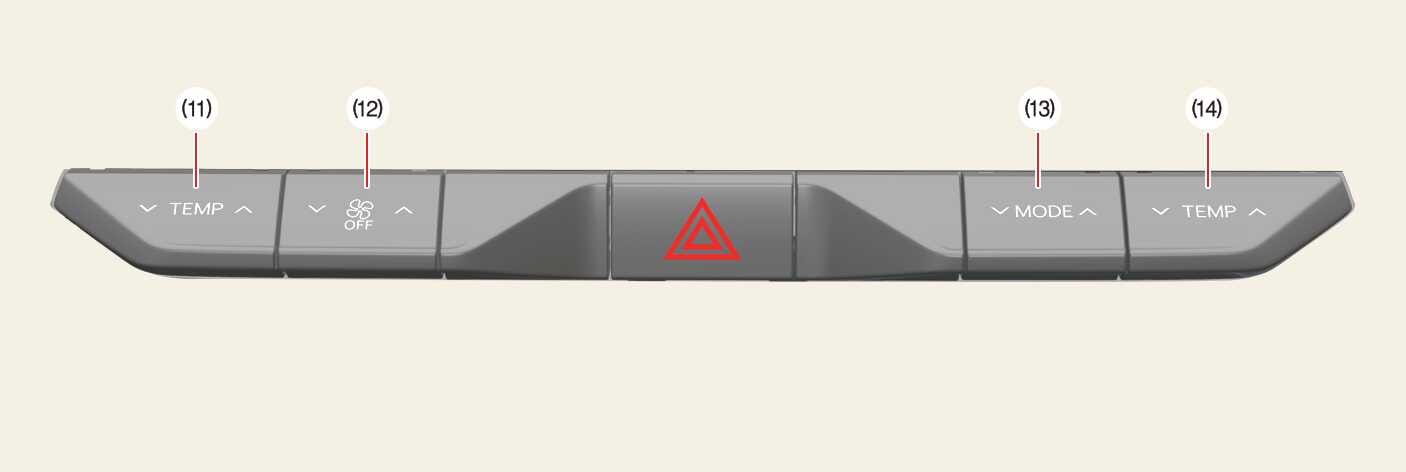

Figure 2. Front seat (Instrument panel)
OMV054202R

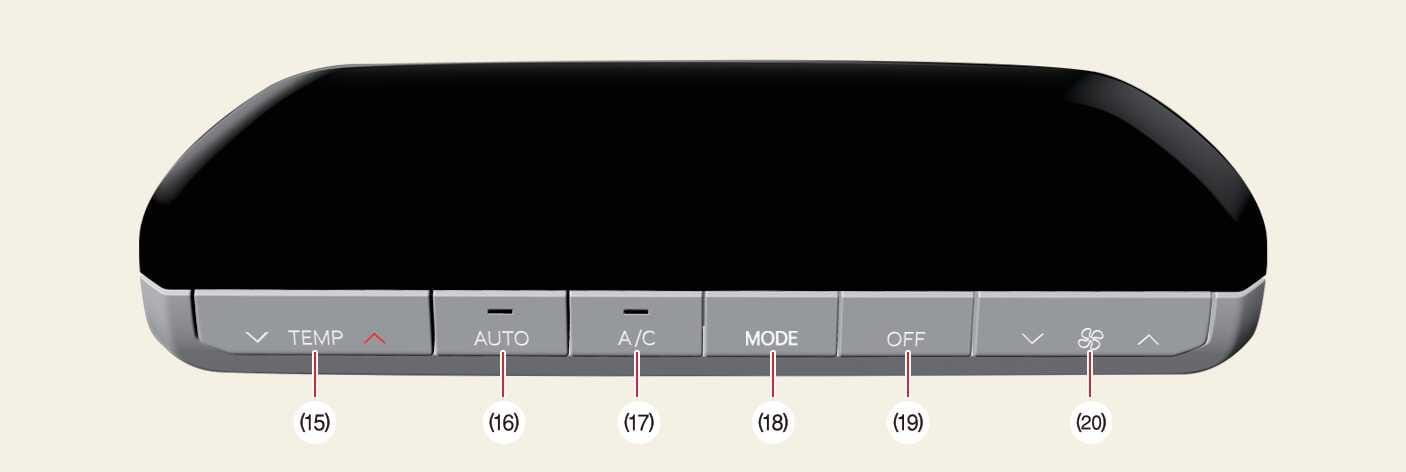

Figure 3. Rear
OMV054203R

  1. Infotainment system screen ON/OFF button

  2. SYNC button

    • Press the SYNC button to adjust the driver and passenger side temperature to same value.

  3. Front-windscreen defroster button

  4. Rear-window defroster button

  5. Air intake control button

  6. Air conditioning A/C button

  7. AUTO (automatic control) button

  8. Driver only select button

  9. Fan speed control/OFF button

  10. Front/rear climate control switching button

  11. Passenger's side temperature control lever

  12. Fan speed control/OFF lever

  13. Mode selection lever

  14. Driver's side temperature control lever

  15. Rear temperature control button

  16. Rear AUTO (automatic control) button

  17. Rear air conditioning A/C button

  18. Rear mode selection button

  19. Rear climate control OFF button

  20. Rear fan speed control button
