Towing service

OMV064057L_3

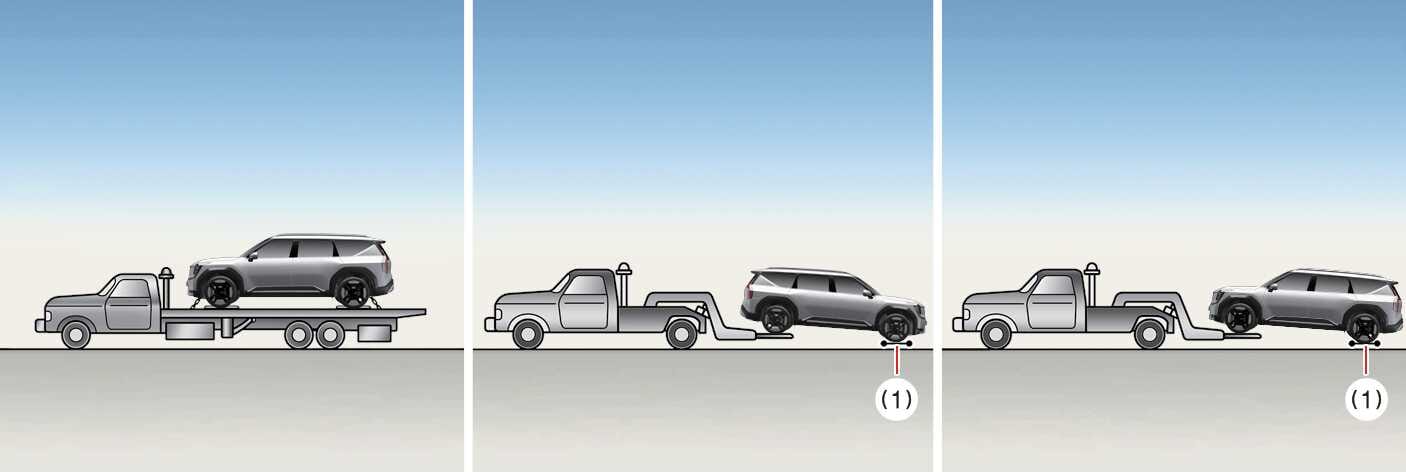

  1. wheel dollies

  • If towing is necessary, we recommend having it done by an authorised Kia dealer or a commercial tow-truck service.

  • Proper lifting and towing procedures are necessary to prevent damage to the vehicle. The use of wheel dollies (1) or flatbed is recommended.

WARNING

Side and curtain air bag

If your vehicle is equipped with side and curtain air bag, set the vehicle to ACC position when the vehicle is being towed. The side and curtain air bag may deploy when the vehicle is in ON position and the rollover sensor detects the situation as a rollover.

CAUTION

The AWD vehicle should never be towed with the wheels on the ground. Always use wheel dollies or flatbed. If not, the power electric system and the AWD system could be seriously damaged.

NOTE

  • Your vehicle cannot be towed with tyres on the ground. The use of wheel dollies or flatbed is recommended.

  • If the Electronic Parking Brake (EPB) does not release normally, we recommend taking your vehicle to an authorised Kia dealer/service partner by loading the vehicle on a flatbed tow truck and have the system checked.

When flatbed is unavailable

  • 2-wheel drive vehicle can be towed with the opposite tyres on the ground (without dollies) and parking brake released before turning off the vehicle.

  • If you must tow the vehicle using only two wheels, lift the driven wheels off the ground and tow the vehicle.

CAUTION
OMV064011
OMV064012

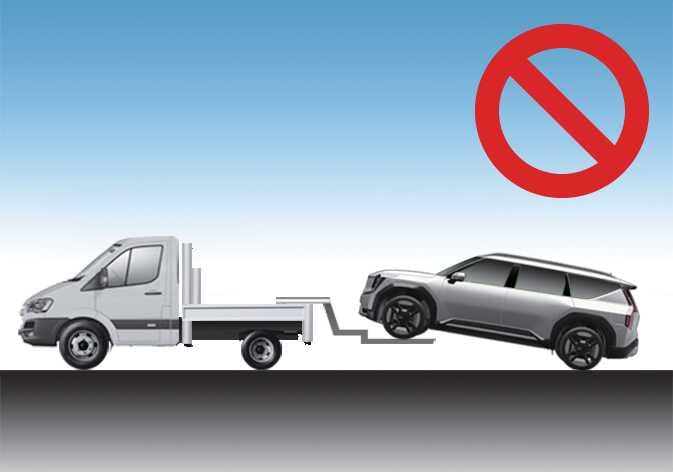

  • If any of the loaded wheels or suspension components are damaged or the vehicle is being towed with the driven wheels on the ground, use a towing dolly under the driven wheels.

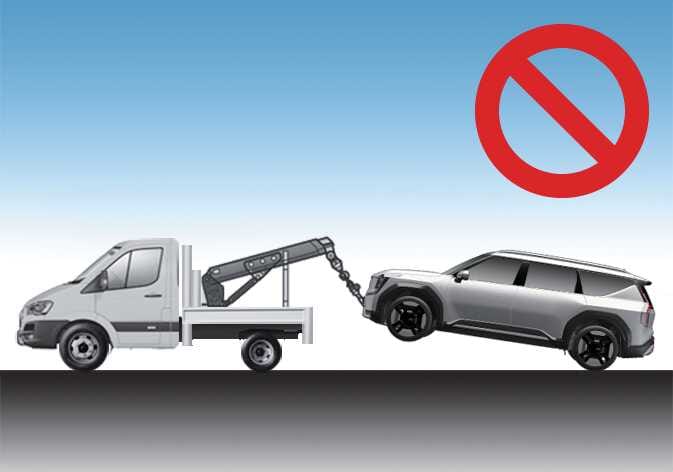

  • Do not tow with sling-type equipment. Use wheel lift or flatbed equipment.

  • Do not tow the vehicle forwards with the driven wheels on the ground as this may cause damage to the vehicle.

Precautions for using towing hooks for short-distance movement before towing the vehicle

  • When moving your vehicle for loading onto a towing truck or repositioning it for towing, drive at a speed of 5 km/h (3 mph) or less over a distance of 10 m (32 ft) or less.

  • In this situation, shift to N (Neutral) and disengage the parking brake. When the power electric system or parking brake is not functioning, ensure that all wheels of your vehicle are elevated using a tow dolly or tyre skates.

Emergency towing

OMV085048L_2

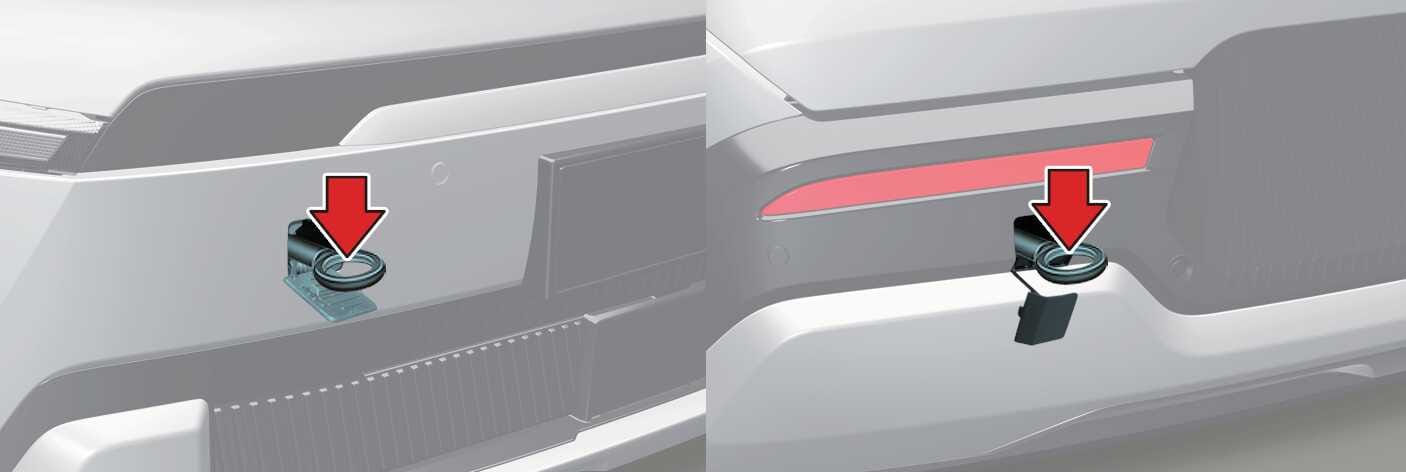

  1. Remove the hole cover pressing the lower part of the cover on the bumper.

  2. Install the towing hook by turning it clockwise into the hole until it is fully secured.

  3. Remove the towing hook and install the cover after use.

WARNING

  • Use extreme caution when towing the vehicle.

  • Avoid sudden starts or erratic driving manoeuvres which would place excessive stress on the emergency towing hook and towing cable or chain. The hook and towing cable or chain may break and cause serious injury or damage.

  • If the disabled vehicle is unable to be moved, do not forcibly continue the towing. We recommend that you contact an authorised Kia dealer or a commercial tow truck service for assistance.

  • Tow the vehicle as straight ahead as possible.

  • Keep away from the vehicle during towing.

CAUTION

  • Attach a towing strap to the tow hook.

  • Using a portion of the vehicle other than the tow hooks for towing may damage the body of your vehicle.

  • Use only a cable or chain specifically intended for use in towing vehicles. Securely fasten the cable or chain to the towing hook provided.

  • Accelerate or decelerate the vehicle in a slow and gradual manner whilst maintaining tension on the tow rope or chain to start or drive the vehicle, otherwise tow hooks and the vehicle may be damaged.

  • Before towing, check the reducer for fluid leaks under your vehicle. If the reducer fluid is leaking, flatbed equipment or a towing dolly must be used.

NOTE

  • Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speed.

  • If towing is necessary, we recommend you to have it done by an authorised Kia dealer or a commercial tow truck service. If towing service is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing hook under the front (or rear) of the vehicle. Use extreme caution when towing the vehicle. A driver must be in the vehicle to steer it and operate the brakes.

  • Do not use the tow hooks to pull a vehicle out of mud, sand or other conditions from which the vehicle cannot be driven out under its own power.

  • Avoid towing a vehicle heavier than the vehicle doing the towing.

  • The drivers of both vehicles should communicate with each other frequently.

  • Before emergency towing, check if the hook is not broken or damaged.

  • Fasten the towing cable or chain securely to the hook.

  • Do not jerk the hook. Apply it steadily and with even force.

  • To avoid damaging the hook, do not pull from the side or at a vertical angle. Always pull straight ahead.
