Lane Keeping Assist settings

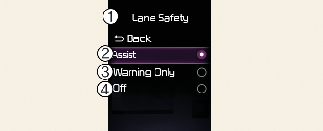

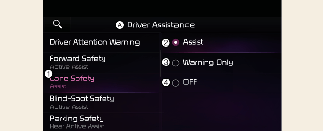

Lane Safety

A: Driver Assistance

  1. Lane Safety

  2. Assist

  3. Warning Only

  4. Off

With the vehicle on, select or deselect Settings → Driver Assistance → Lane Safety from the User Settings menu or select or deselect Settings → Vehicle → Driver Assistance → Lane Safety from the infotainment system to set whether or not to use each function.

  • Assist: Lane Keeping Assist will automatically assist the driver's steering when lane departure is detected to help prevent the vehicle from moving out of its lane.

  • Warning Only: Lane Keeping Assist will warn the driver with an audible warning when lane departure is detected. The driver must steer the vehicle.

  • Off: Lane Keeping Assist will turn off. The indicator () light will turn off on the cluster.

WARNING

  • If Warning Only is selected, steering is not assisted.

  • Lane Keeping Assist does not control the steering wheel when the vehicle is driven in the middle of the lane.

  • The driver should always be aware of the surroundings and steer the vehicle if Off is selected.

Warning Methods

A: Driver Assistance

  1. Warning Methods

The Warning Methods can be set with the vehicle on. Select User Settings → Driver Assistance → Warning Methods from the settings menu in the instrument cluster or Setup → Vehicle → Driver Assistance → Warning Methods from the settings menu in the infotainment system to change the following settings:

  • Warning Volume: Adjusts the volume of the warning sound.

  • Haptic Warning: Activate the steering wheel vibration warning. (if equipped)

  • Lane Safety Audible Warning Off: Turns off the Lane Safety Audible Warning, even when both warning volume and haptic warning are on. (if equipped)

  • Driving Safety Priority: Lowers all other audio volumes when the Driving Safety system sounds a warning.

NOTICE

  • If you change the Warning Methods, it can be applied to each function of the driver assistance system. Please check and change it in each function.

  • If the vehicle is restarted, Warning Methods will maintain the last setting.

  • The setting menu may not exist based on vehicle specification.

  • The Warning Volume and Haptic Warning cannot be turned off at the same time. When one of the warning is turned off the other is activated.

  • The Lane Safety Audible Warning Off can be set when both the Warning Volume and the Haptic Warning are on.
