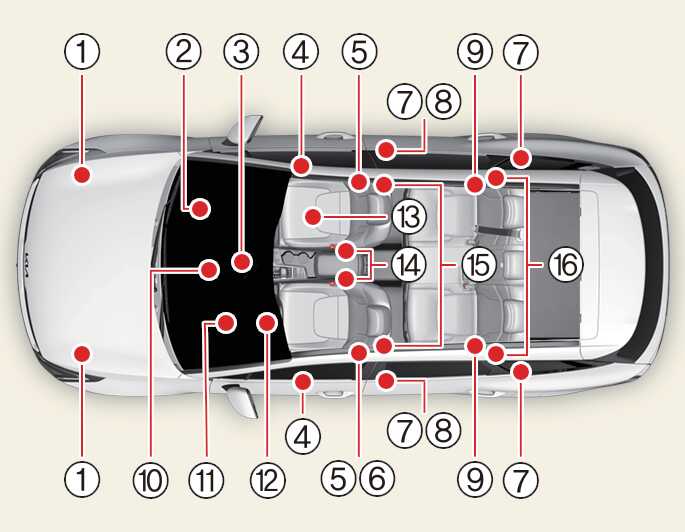

Supplemental Restraint System (SRS) components and functions

ONQ5A025001

The actual position of SRS components may differ from the illustration.

The SRS consists of the following components:

  1. Front impact sensors

  2. Passenger’s front air bag module

  3. SRS control module (SRSCM)/ rollover sensor

  4. Side pressure sensors

  5. Front side air bag modules

  6. EFD (Emergency Fastening Device)

  7. Side impact sensors

  8. Curtain air bag modules

  9. Rear side air bag modules

  10. Passenger’s front air bag ON/OFF indicator (Over head console)

  11. Air bag warning light

  12. Driver’s front air bag module

  13. Occupant Detection System (ODS)

  14. Front driver/passenger’s seat belt buckle sensor

  15. Front retractor pre-tensioner assemblies

  16. Retractor pre-tensioner assemblies (rear side)

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. Have the system inspected by an authorized Kia dealer.

  • The light does not turn on briefly when you turn the ignition ON.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on while the vehicle is in motion.

  • The light blinks when the ENGINE START/STOP button is in ON position.

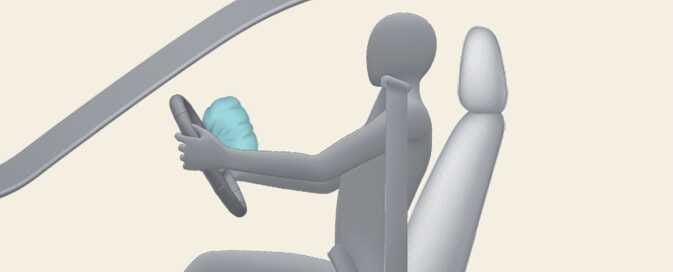

Figure 1. Driver’s front air bag (1)
OCV031036L

The air bag modules are located both in the center of the steering wheel and in the front passenger’s panel above the glove box. When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags.

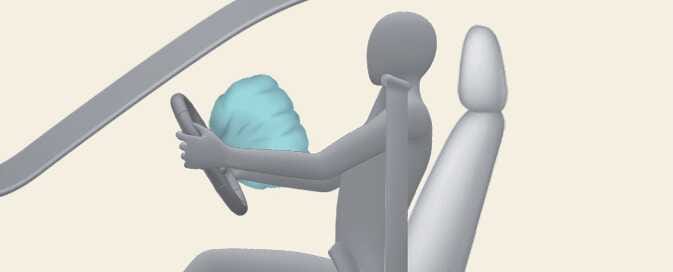

Figure 2. Driver’s front air bag (2)
OCV031037L

Upon deployment, tear seams molded directly into the pad covers will separate under pressure to allow full inflation of the air bags.

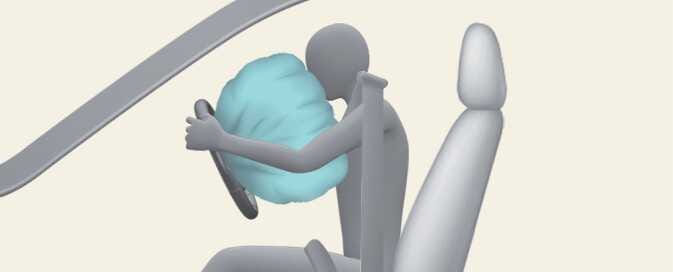

Figure 3. Driver’s front air bag (3)
OCV031038L

A fully inflated air bag, in combination with a properly worn seat belt, slows the driver’s or the passenger’s forward motion, reducing the risk of head and chest injury.

After complete inflation, the air bag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to steer or operate other controls.

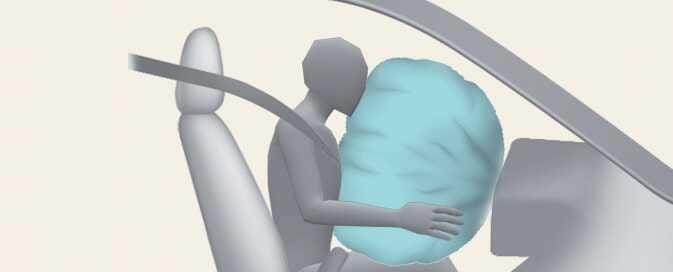

Figure 4. Passenger’s front air bag
OCV031039L
WARNING

Air bag obstructions

Do not install or place any accessories on the steering wheel, instrument panel, or on the front passenger’s panel above the glove box in a vehicle. Such objects may become dangerous projectiles if the air bag deploys.

WARNING

Flying objects

Do not place any objects (an umbrella, bag, etc.) between the front door and the front seat. Such objects may become dangerous projectiles if the side airbag inflates.

  • If an air bag deploys, there may be a loud noise and powder released in the vehicle. These conditions are normal and are non-toxic. The air bags are packed in this fine powder. The dust generated during air bag deployment may cause skin or eye irritation as well as aggravate asthma for some persons. Wash all exposed skin areas thoroughly with cold water and a mild soap after an accident in which the air bags were deployed.

  • The SRS can function only when the ENGINE START/STOP button is in the ON Position or approximately within 3 minutes after ignition off. The SRS is not working properly if any of the following situations occur:

    • The SRS airbag warning light does not appear

    • The SRS airbag warning light remains on continuously after illuminating for about 3–6 seconds when the ENGINE START/STOP button is turned to the ON position or after the vehicle is in ready mode

    • The SRS airbag warning light comes on while driving

    Have your vehicle immediately inspected by an authorized Kia dealer.

TIP

Before replacing a fuse or disconnecting a battery terminal, turn the ENGINE START/STOP button to the OFF position. Never remove or replace air bag related fuse(s) when the ENGINE START/STOP button is in the ON position as the SRS warning light to illuminate.
