Lighting control

The light switch has a headlight and a position lamp position.

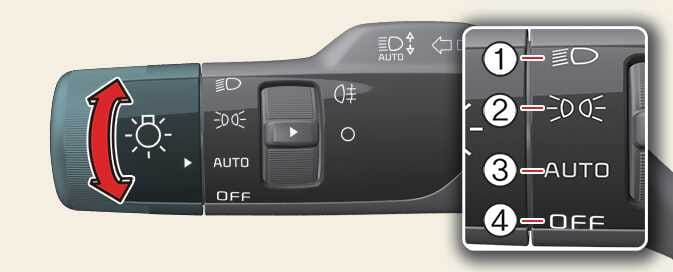

ONQ5H034029

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

  1. Headlight lamp position

  2. Position Lamp & Taillight

  3. Auto light position

  4. OFF position

Position Lamp & Taillight

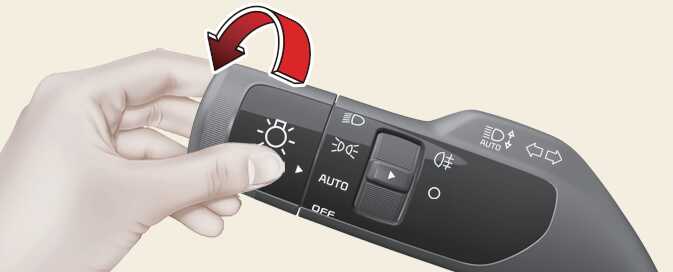

ONQ5035023N

When the light switch is in the lamp position, the front position lamp, taillight, and the license plate lamp will turn ON.

Headlight (Low Beam)

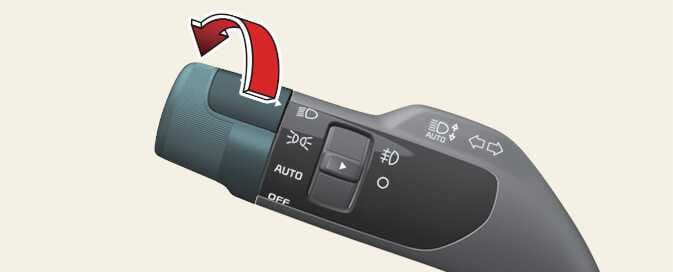

OCL4MGTL034003N

When the light switch is in the headlight position, headlight (low beam), taillight and license plate lamp will turn ON.

TIP

The ENGINE START/STOP button must be in the ON position to turn on the headlights.

Auto light

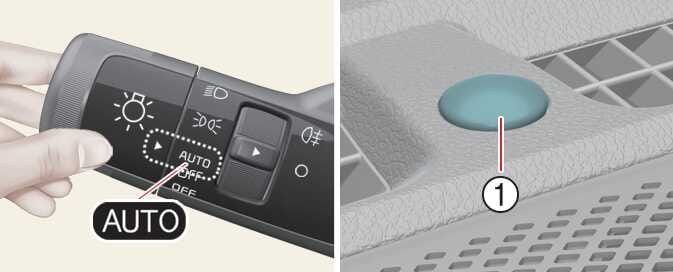

ONQ5A035010_2

When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of ambient light.

NOTE

  • Never place anything over the sensor (1) located on the instrument panel as this will ensure better auto-light system control.

  • Don't clean the sensor using a window cleaner. The cleaner may leave a light film which could interfere with sensor operation.

  • If your vehicle has window tint or other types of metallic coating on the front windshield, the Auto light system may not work properly.
