Heating and air conditioning automatically

  1. Press the AUTO button.

    The modes, fan speeds, air intake and air-conditioning will be controlled automatically by setting the temperature.

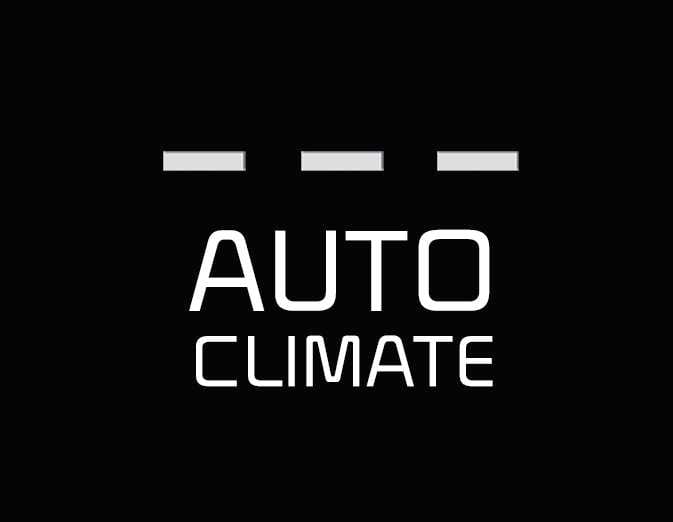

    OGL3041303

    Level

    Indicator

    LCD Display

    Air flow

    High

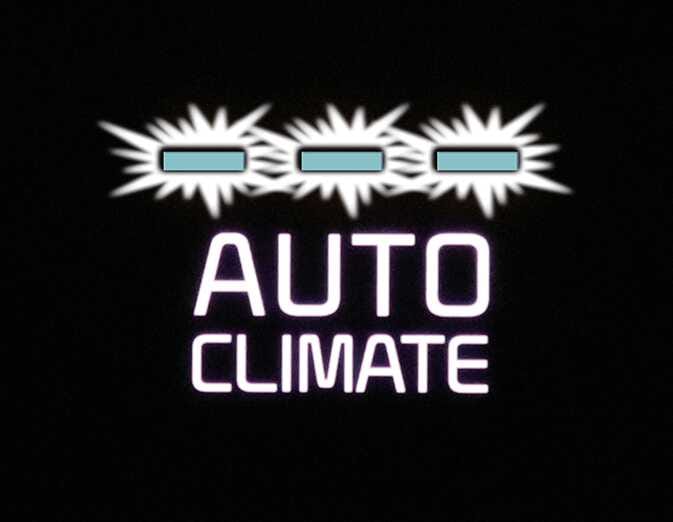

    OGL3041306

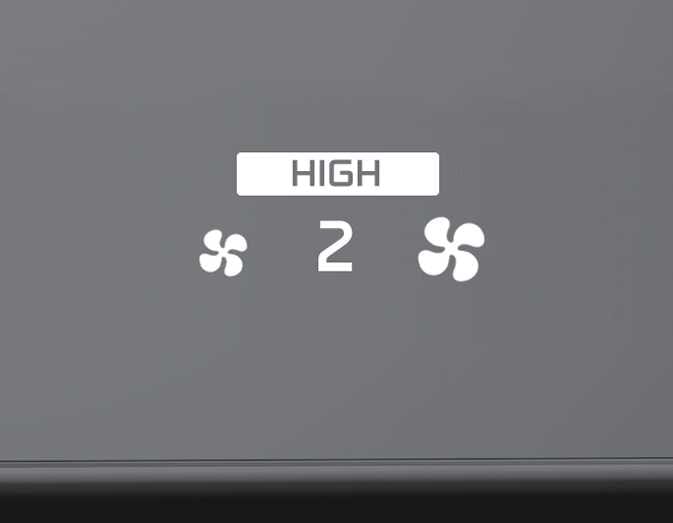

    OGL3041309

    2–8

    Medium

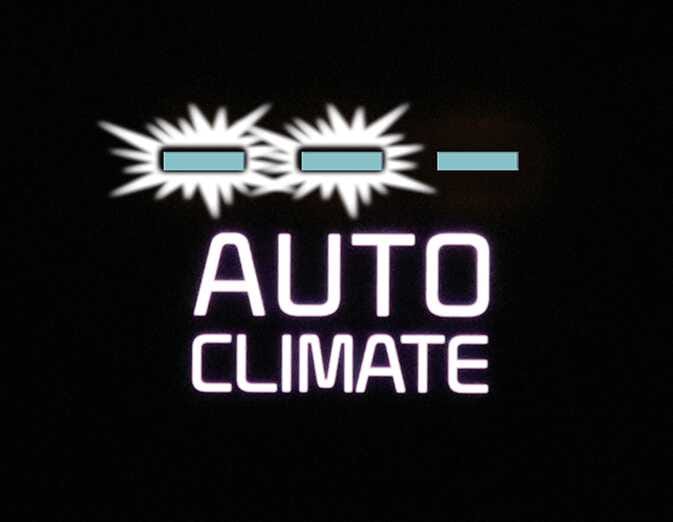

    OGL3041305
    OGL3041308

    1–6

    Low

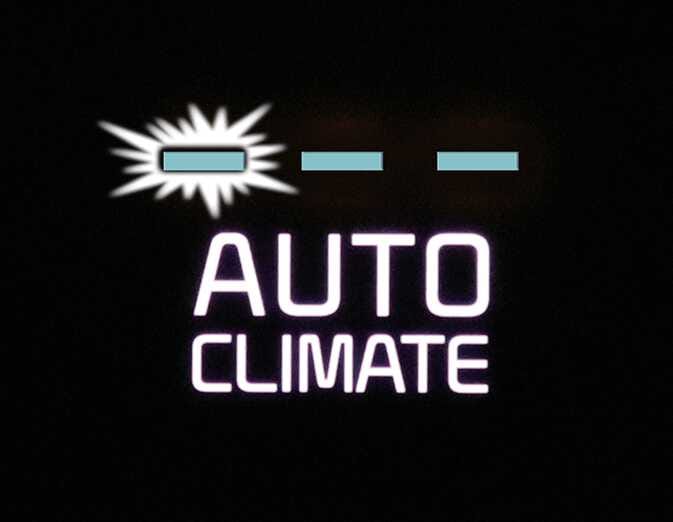

    OGL3041304
    OGL3041307

    1–4

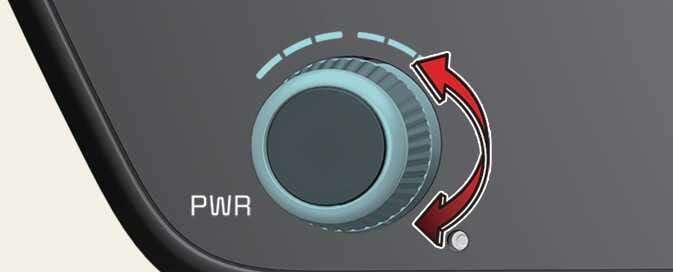

  2. Turn the temperature control knob to the desired temperature.

    OCV041305L
TIP

  • To turn the automatic operation off, select any button of the following:

    • Mode selection button

    • Air conditioning button

    • Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The AUTO sign will appear on the information display once again.)

    • Fan speed control knob

    The selected function will be controlled manually while other functions operate automatically.

  • To improve the effectiveness of the climate control, use the AUTO button and set the temperature to 72 °F (22 °C).

TIP

Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

ONQ5045018N
