Front wiper blade replacement

ONQ5074011

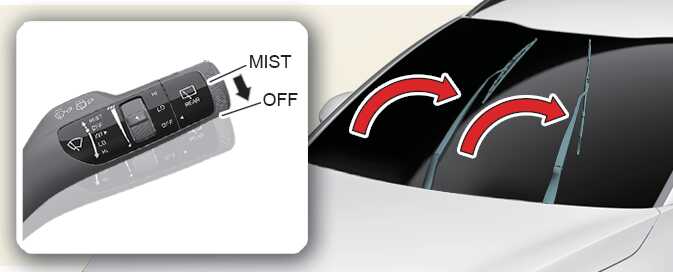

For your convenience and to prevent hood paint damage, you must move the windshield wiper blades to the service position as follows:

After turning off the engine, move the wiper switch to the single wiping (MIST) position within 20 seconds and hold the switch more than 2 seconds until the wiper blade is in the fully up position.

NOTE

Wiper arms

  • Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

  • Do not pull the wiper arm forward, since arm could chip hood paint.

Type A (if equipped)

  1. Raise the wiper arm.

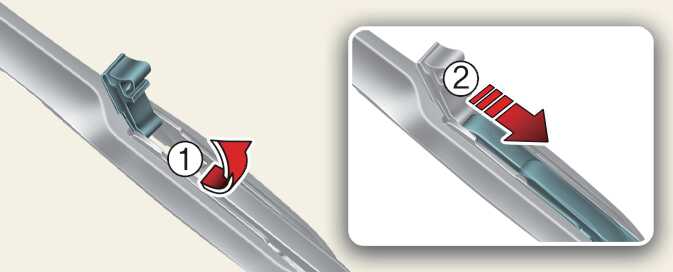

  2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

    OMQ4073110

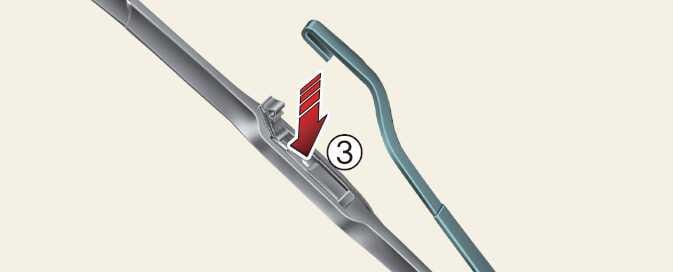

  3. Install the new blade assembly.

    OMQ4073111

  4. Make sure that both blade assemblies are installed firmly by trying to pull it slightly.

  5. Return the wiper arm onto the windshield.

  6. Turn ignition to the ON position and wiper arms will return to the normal operating position.

Type B (if equipped)

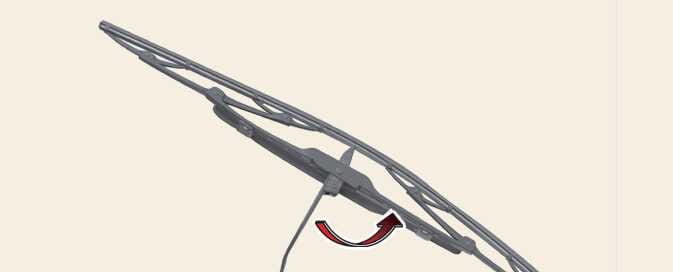

  1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

    OCV071052L

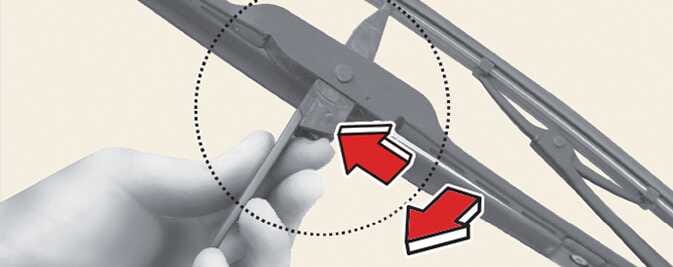

  2. Compress the clip and slide the blade assembly downward.

    OCV071053L

  3. Lift it off the arm.

  4. Install the blade assembly in the reverse order of removal.
