Rear View Monitor settings
Camera settings
With the vehicle on, select the setup icon (
) on the screen or Driver assistance → Parking safety → Camera settings from the Settings menu to change the Rear View Monitor settings.
-
Display Contents: To change the settings of Extended Rear View Monitor and Rear View Parking Guidance Lines.
-
Display Settings: To change the screen's brightness and contrast. (if equipped)
-

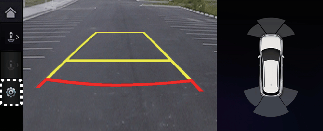

The horizontal guideline shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.
-
The horizontal scale of rear top view parking guide indicates the tailgate opening distance, 1.5 m (4.9 ft.) from the vehicle.
Warning methods
A: Driver Assistance
-
Warning Methods
The Warning Methods can be set with the vehicle on. Select Settings → Vehicle → Driver Assistance → Warning Methods from the settings menu in the infotainment system to change the following settings:
-
Driving Safety Priority: Lowers all other audio volumes when Rear View Monitor is active.
-
If you change the Warning Methods, it can be applied to each function of the driver assistance system. Please check and change it in each function.
-
If the vehicle is restarted, Warning Methods will maintain the last setting.
-
The setting menu may not exist based on vehicle specification.
