Removing/reinstalling headrest (2nd row seat and 3rd row center seat)

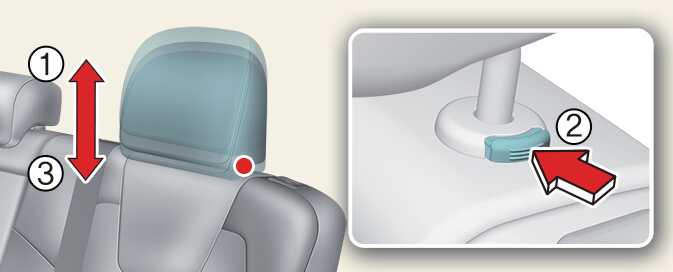

Figure 1. 2nd row
OON0320190

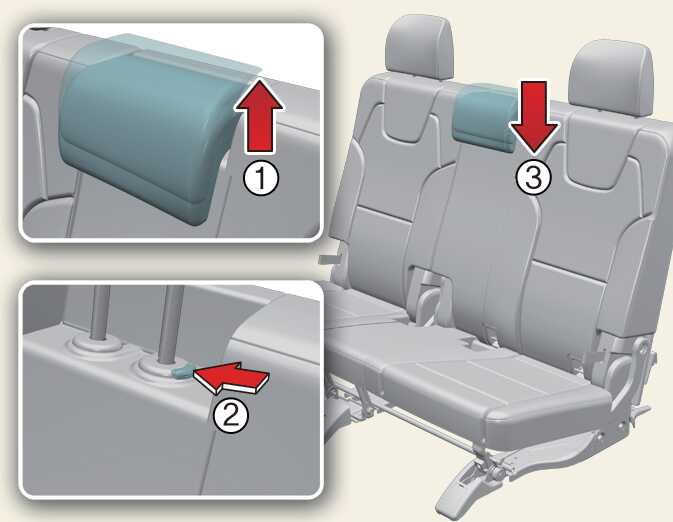

Figure 2. 3rd row center
OON032020_20
  • To remove the headrest, raise it as far as it can go then press the release button (2) While pulling the headrest upward (1).
  • To reinstall the headrest, put the headrest poles (3) into the holes while pressing the release button (2).
  • Then adjust it to the appropriate height and ensure that it locks in position.
