Folding down the rear seatback

  1. Set the front seatback to the upright position and if necessary, slide the front seat forward.

  2. Lower the rear headrests to the lowest position.

    WARNING

    Objects

    Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.

    CAUTION

    When the seats in the 2nd-row are folded to use the area as a cargo compartment, be sure to turn off the seat heater.: (if equipped)

  3. When folding the seatback, insert the rear seat belt buckle in the pocket between the rear seatback and cushion. Make sure both seat belts do not interfere with stowed luggage and cargo. Then, the seat belt webbing should be placed in the webbing guide to prevent the seat belt from being damaged by loaded cargo, etc. If the seat belt is loose, it may cause damage or noise. In that case, return the seatback to the upright position and put the webbing out from the guide to realign it.

  4. Pull on the seatback folding lever (for 2nd row) or strap (for 3rd row), then fold the seat toward the front of the vehicle. When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.

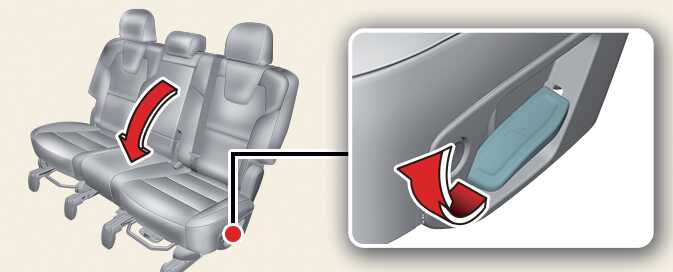

    Figure 1. 2nd row seat
    OON032028

    There is no center seat on rear 2nd row for vehicle with 7 seats.

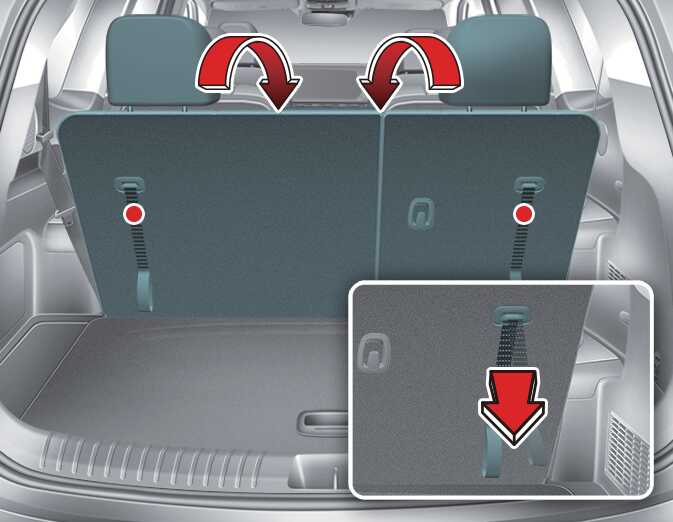

    Figure 2. 3rd row seat
    OON032029

  5. To use the rear seat, lift and pull the seatback backward by pulling on the folding lever (for 2nd row) or strap (for 3rd row). Pull the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

  6. Return the rear seat belt to the proper position.
