Folding the outside rearview mirror

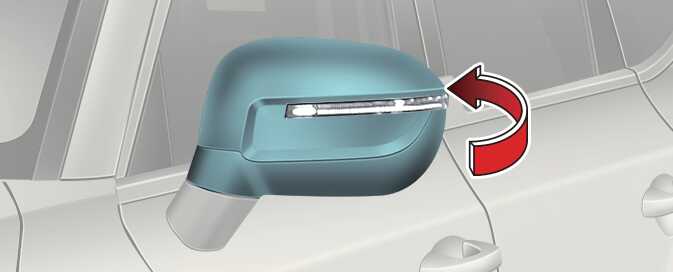

Manual type

  • To fold the outside rearview mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle.

    OON042089

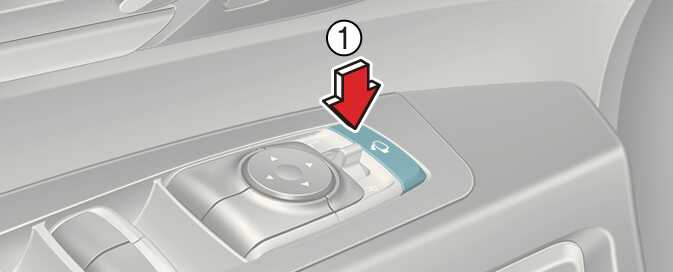

Electric type

  • The outside rearview mirror can be folded or unfolded by pressing the switch when the ENGINE START/STOP button is in the ON position as below.

OON042090

  1. To fold the outside rearview mirror depress the button (1).

  2. To unfold it, depress the button (1) again.

  • The mirror will fold or unfold when the door is locked or unlocked by the key.

  • The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle.

The mirror will fold or unfold automatically as follows:

  • The mirror will fold or unfold when the door is locked or unlocked by the smart key.

  • The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle.

  • The mirror will unfold when you approach the vehicle (all doors closed and locked) with a smart key in possession when the Welcome Mirror function is activated in User Settings. (if equipped)

CAUTION

Do not fold an electric type outside rearview mirror by hand as this could cause motor failure.
