Displaying operating status

You can see the status of the Highway Driving Assist operation in the Driving Assist view on the cluster. Refer to .

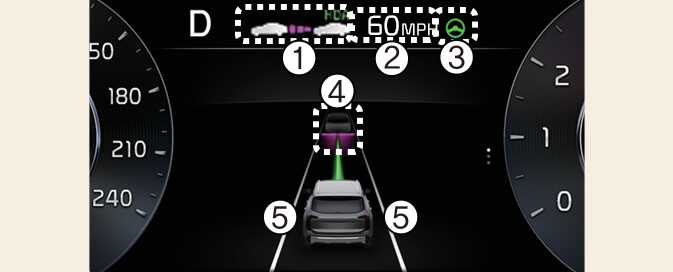

Figure 1. Operating State
OON052264

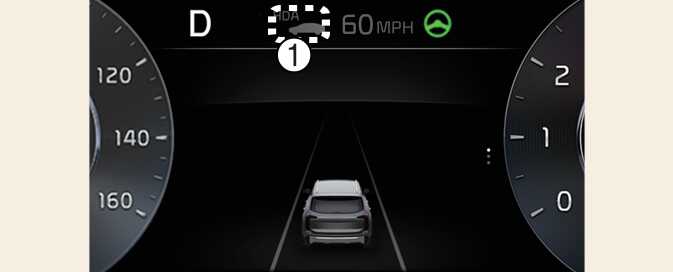

Figure 2. Standby State
OON052265

Highway Driving Assist will be displayed as below depending on the status of the function.

  1. Highway Driving Assist indicator, whether there is a vehicle ahead and the selected distance level are displayed.

    • Highway Driving Assist indicator

      • Green HDA: Operating state

      • Grey HDA: Standby state

      • White HDA blink: Accelerator depressed state

      • Not shown: Off state

  2. Set speed

  3. Lane Following Assist indicator

  4. Whether there is a vehicle ahead and the selected vehicle distance

  5. Whether the lane is detected or not

NOTE

  • For more details on the display, refer to Lane Following Assist (LFA).

    For more details on the display refer to Smart Cruise Control (SCC).

  • The images and colors in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.
