Replacing front windshield wiper blade

Type A

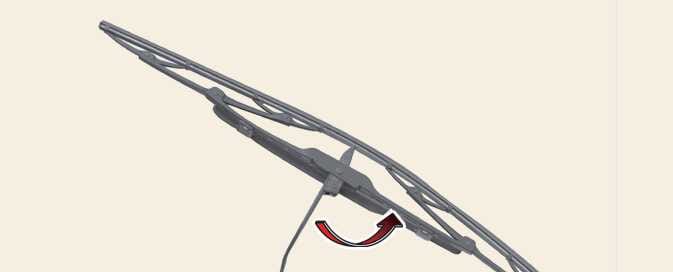

  1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

    OCV071052L
    CAUTION

    Wiper arms

    • Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

    • Do not pull wiper arm forward, since arm could chip hood paint.

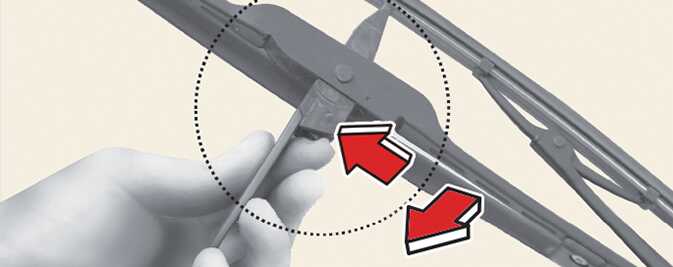

  2. Compress the clip and slide the blade assembly downward.

    OCV071053L

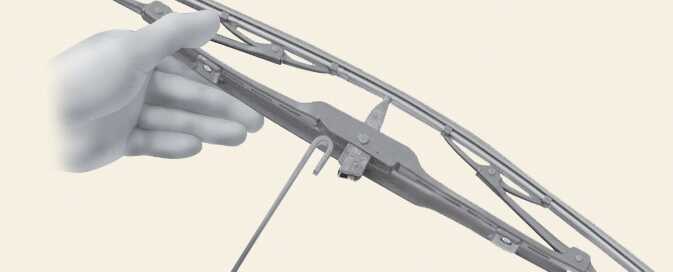

  3. Lift it off the arm.

    OON072078

  4. Install the blade assembly in the reverse order of removal.

Type B

  1. Raise the wiper arm.

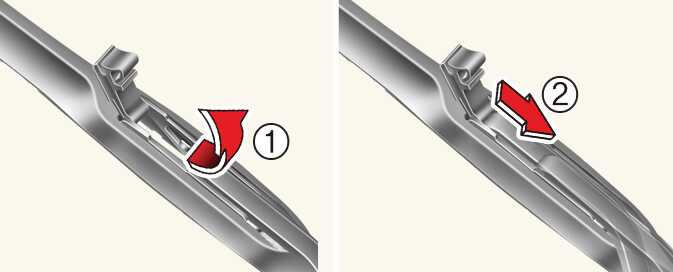

  2. Lift up the wiper blade clip (1). Then pull down the blade assembly and remove it (2).

    ONQ5041198_2

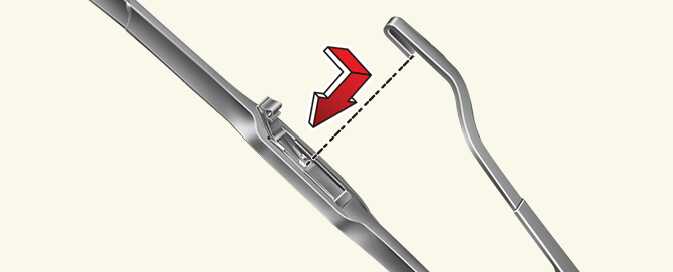

  3. Install the new blade assembly.

    ONQ5041199

  4. Return the wiper arm on the windshield.

  5. Turn ignition to the ON position and wiper arms will return to the normal operating position.
