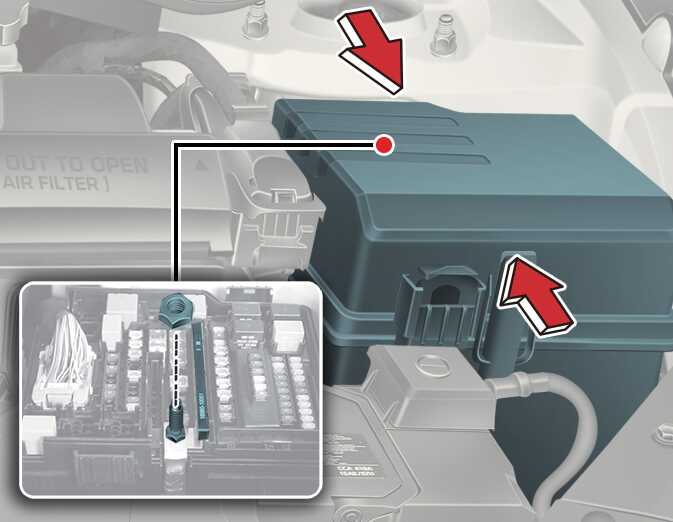

Multi fuse

OON072021

If the multi fuse is blown, it must be removed as follows:

  1. Turn the ENGINE START/STOP button to the OFF position and all other switches off.

  2. Disconnect the negative battery cable.

  3. Remove the nuts as shown.

  4. Replace the fuse with a new one of the same rating.

  5. Reverse these steps to reinstall the multi fuse.

WARNING

Do not disassemble or assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an authorized Kia dealer.
