Charging types

Category

AC Charge

DC Charge

Portable Charge

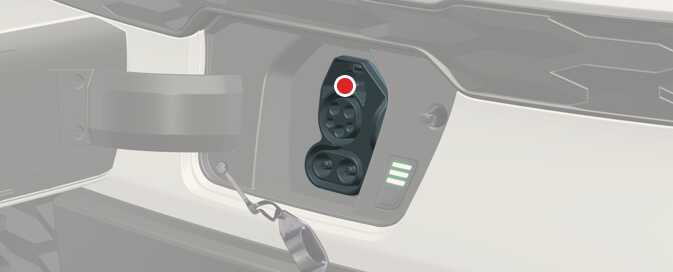

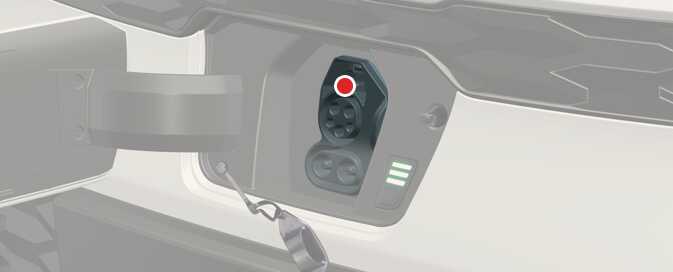

Charging Inlet (Vehicle)
OSG2EVQ011001
OSG2EVQ011002
OSG2EVQ0110010

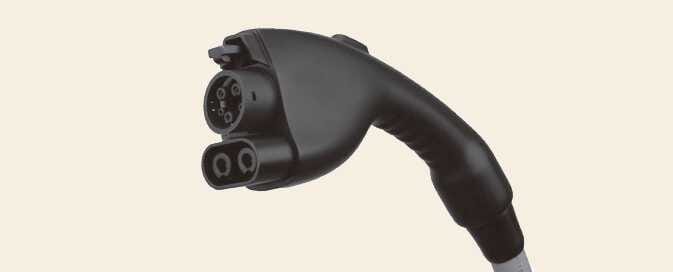

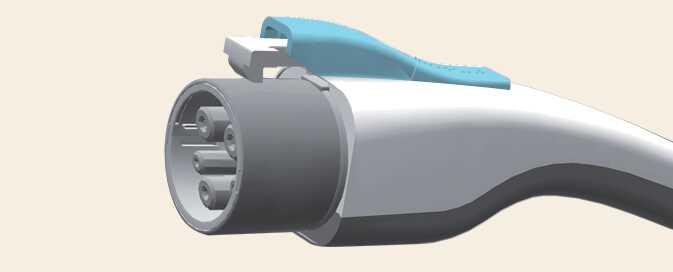

Charging Connector
OCVQ011060
OCVQ011061
OCVQ0110600

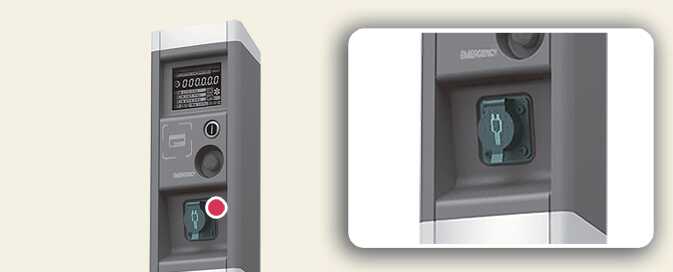

Charging Outlet
OCVQ011007L
OCVQ011008L
OCVQ011009L

How to Charge

Use AC charger installed at home or public charging station

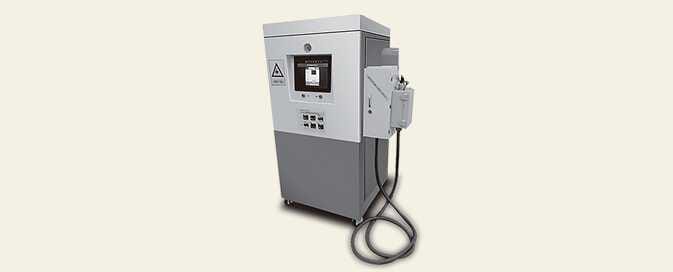

Use the DC charger at public charging station

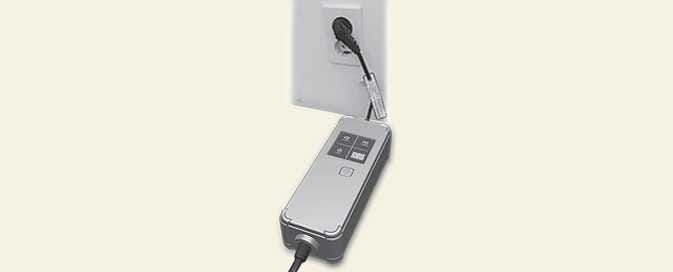

Use household current

Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the high voltage battery may vary.

Actual charger appearance and charging method may vary in accordance with the charger manufacturer.

For your safety, your vehicle may stop charging if the external charger is outdated or defective. Try charging the vehicle using a different charger that works properly.

A maximum diagnosis time of 3 minutes may be added to check the battery condition during the battery charging process.

Portable charging cable is sold separately.

CAUTION

  • Risk of Electric Shock, Do Not Disconnect Under Load.

  • Suitable For Use On A Circuit Capable Of Delivering Not More Than 30000 rms Symmetrical Amperes, 1000 Volts DC Maximum.

  • Suitable For Use On A Circuit Capable Of Delivering Not More Than 5000 rms Symmetrical Amperes, 120 Volts AC Maximum.
