Rear seat folding
OSV025071L
OSV024011L

Simple operation

  1. Lower the rear seat headrest.

  2. Store seat belt in holder and buckle in to storage area.

  3. Pull the rear seat lever and fold the seat.

Operation

  1. Keep the front seatbacks upright to avoid interference when the seats are folded.

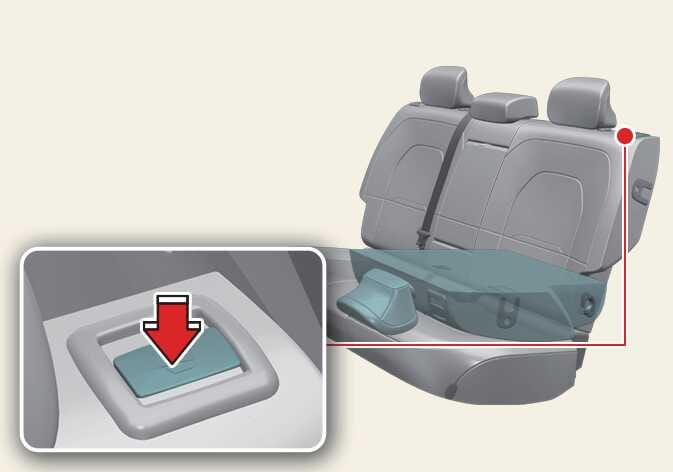

  2. Press the rear seat headrest button to lower the rear seat headrest to their lowest position.

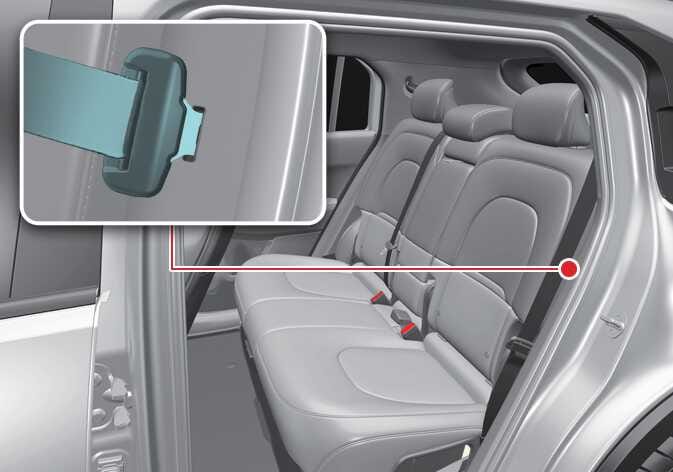

  3. Insert the seat belt into the storage holder and insert the buckle into the storage area inside the seat to prevent interference between the 3-point seat belt on either side and the loaded cargo when folded.

    Tidy up the centre seat belts of the rear seats so that they are not twisted.

  4. Keep the front seatbacks upright to avoid interference when the seats are folded.

  5. Pull the rear seat adjustment lever to fully fold the seatback forward.

  6. After folding the seatback, release the adjustment lever to secure it. Make sure the seatback is securely fastened.

  7. When returning to the original position, raise the seatback whilst pulling the rear seat adjustment lever. Pull the seatback firmly until it clicks into place. Make sure the seatback is locked in place. When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback. Return the rear seat belts to the proper position.
