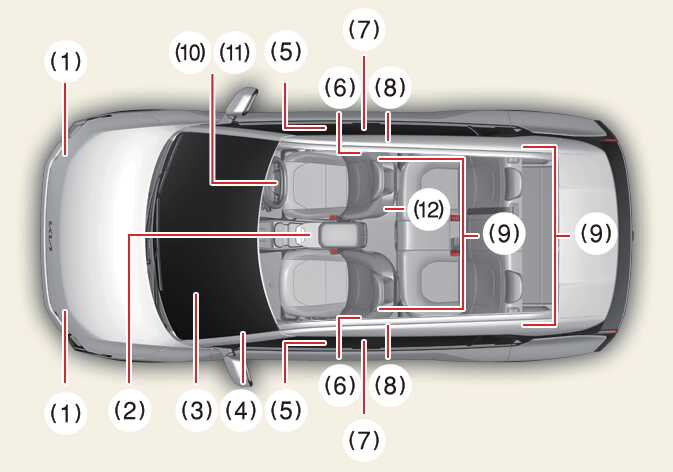

SRS components and functions

OSV024057R

  1. Front impact sensors

  2. SRS control module (SRSCM)/rollover sensor

  3. Passenger's front air bag module

  4. Passenger's front air bag ON/OFF switch*

  5. Side pressure sensors

  6. Side air bag modules

  7. Curtain air bag modules

  8. Side impact sensors

  1. Retractor pre-tensioner assemblies

  2. Driver's front air bag module

  3. Air bag warning light

  4. Driver's centre side air bag module*

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

*: if equipped

Operating condition(s)

  • When EV button is in POWER ON or DRIVE READY position, the SRS air bag warning light will appear for approximately 6 seconds and go out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer/service partner.

  • The light does not turn on briefly when you turn the vehicle POWER ON or DRIVE READY.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on whilst the vehicle is in motion.

  • The light blinks when the vehicle is in POWER ON or DRIVE READY position.
