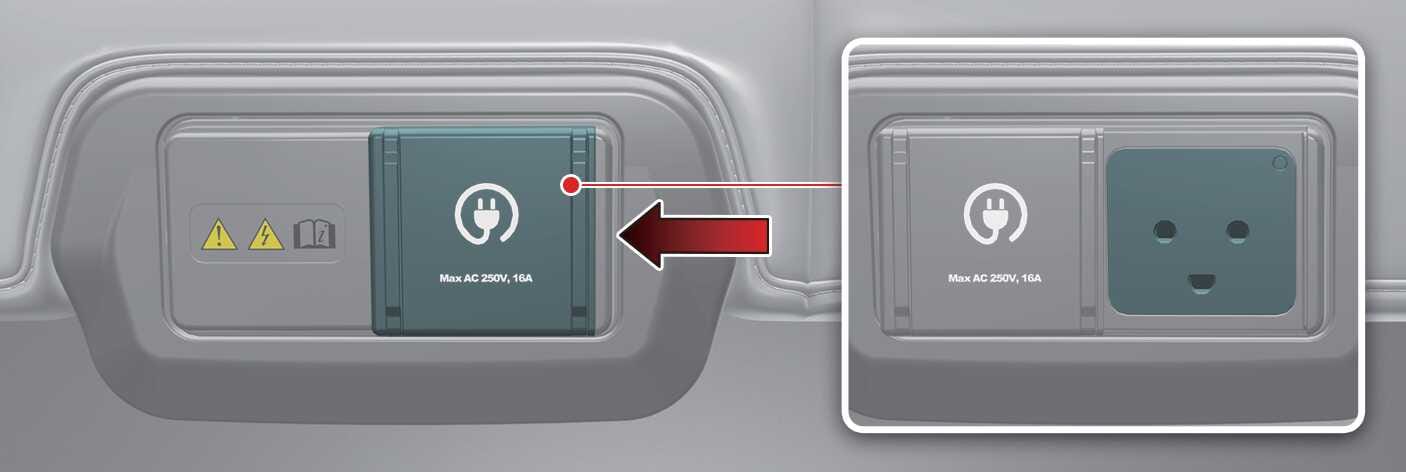

V2L power outlet : (if equipped)

OSVQ014005

The V2L power outlet supplies 230V/3.68kVA electric power to operate electric accessories or equipment in the vehicle.

If you wish to use the V2L power outlet, open up the cover and connect a plug to it with the vehicle is in POWER ON, DRIVE READY, or Utility Mode

For more details, refer to Vehicle to load (V2L)

V2L stands for Vehicle to Load.

NOTE

  • Rated voltage: AC 230V

  • Maximum electric power: 3.68kVA

  • In order to avoid an electrical system failure, electric shock, etc., be sure to read owner's manual before use.

  • Be sure to close the cover except for when in use.

  • After using an electric accessory or equipment, pull the plug out. Leaving the accessory or equipment plugged in for a long time may cause battery discharge.

  • Do not use an electric accessory or equipment the power consumption of which is greater than 3.68kVA (230V).

  • When the V2L input voltage is less than min. discharging voltage(245V), power will turn off. The V2L will operate as normal when the voltage is increased.

  • Whilst the power consumption of some electrical devices/appliances may be within the AC inverter's electric power range, it may malfunction in below cases.

    • If the device/appliance requires high electric power for initial start up

    • If the device/appliance processes precise/very accurate data

    • If the device/appliance requires very stable supply of electricity

CAUTION

Electric accessory devices

  • Do not use broken electric accessories which may damage the V2L power outlet and electrical systems of the vehicle.

  • Do not use two or more electric accessories at the same time. It may cause damage to the electrical systems of the vehicle.
