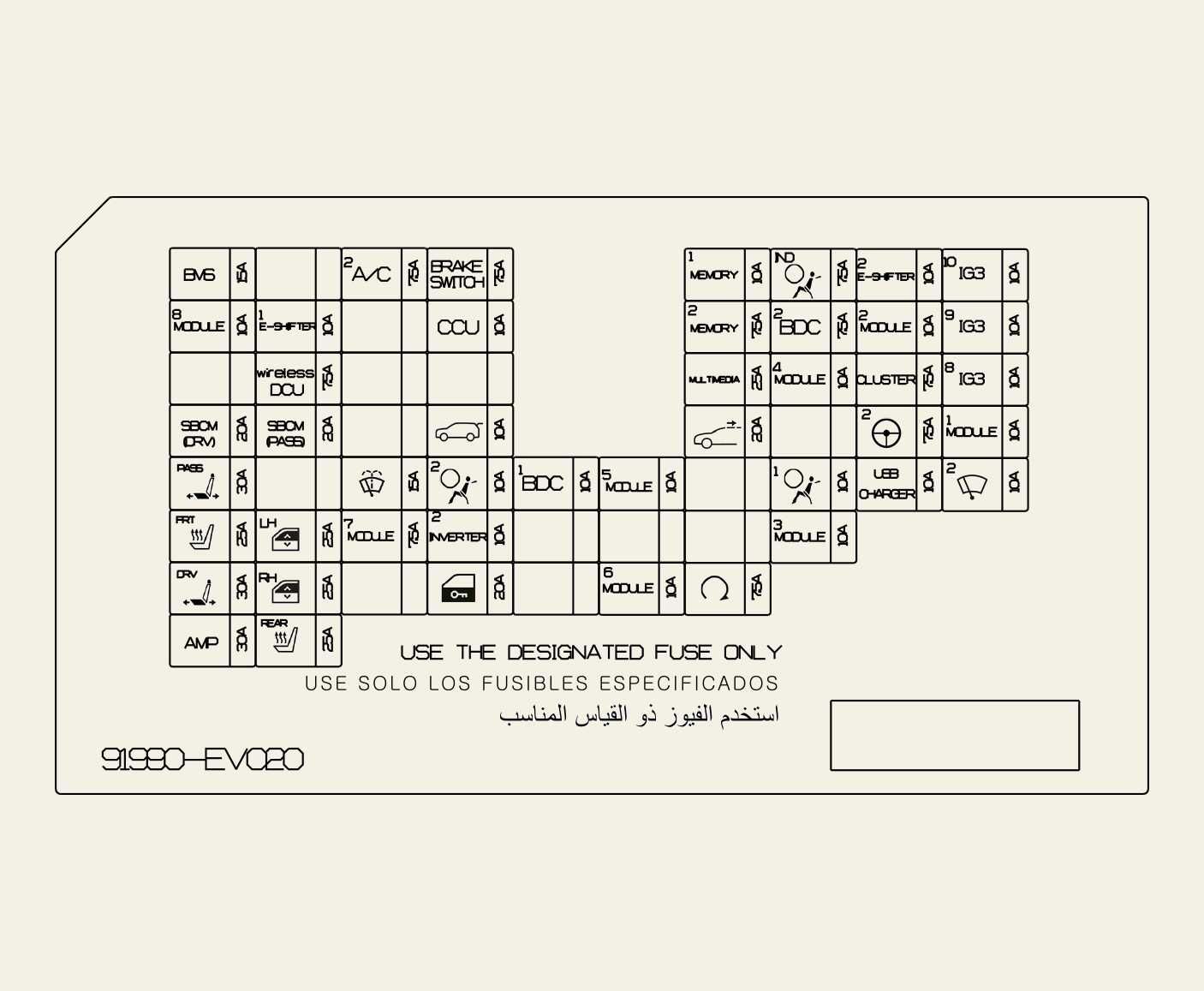

Driver's side fuse panel label
PDC Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
START |
|
7.5A |
VPC(Vehicle Platform Controller), BDC(Body Domain Controller) |
|
USB CHARGER |
|
10A |
Seat Heater & Ventilation Unit (PASS), Seat Heater&Ventilation Unit (Driving), USB Charger |
|
MODULE1 |
|
10A |
BDC (Body Domain Controller), DCU (Domain Control Unit), Built In Cam, CCNC, CCU (Central Communication Unit), ADP (Acoustic Design Processor speaker), ADAS Parking ECU, Harman AMP |
|
AIR BAG1 |
|
10A |
ACU (Air Control Unit) , ODC (Occupant Detection System) |
|
A/BAG IND |
|
7.5A |
Over Head Console Lamp Airbag Ind |
|
E-SHIFTER2 |
|
10A |
Shift By Wire Lever |
|
CLUSTER |
|
7.5A |
Cluster, Head Up Display |
|
BDC2 |
|
7.5A |
BDC (Body Domain Controller) |
|
MDPS2 |
|
7.5A |
MDPS (Motor Driven Power Steering) Unit |
|
MODULE2 |
|
10A |
CCU (Central Communication Unit), P/Window Switch, Stop Lamp Switch |
|
MODULE3 |
|
10A |
ADAS Driving, Frt View Camera, DCU (Domain Control Unit), ADAS Parking, Coner Radar, FCA |
|
MODULE4 |
|
10A |
CCNC, ICC (In Cabin Camera), CPAD Switch, CDU (Climate Display Unit), Built In Cam, Inside Mirror ECM |
|
A/C2 |
|
7.5A |
DATC (Dual Automatic Temperature Control) |
|
WASHER |
|
15A |
Multi Funtion Switch, Washer Motor |
|
MODULE7 |
|
7.5A |
BDC (Body Domain Controller) |
|
IG3 8 |
|
10A |
CCU (Central Communication Unit) |
|
IG3 9 |
|
10A |
CCNC, PTC Heater Signal, CDU (Climate Display Unit), DATC (Dual Automatic Temperature Control), Active Incar, PM Sensor, P/window Switch RL&RR, V2L Signal, DOOR Switch |
|
BMS |
|
15A |
BMS (Battery Management System) |
|
AMP |
|
30A |
Harman AMP |
|
P/SEAT Driving |
|
30A |
Seat Heater&Ventilation Unit (Power Seat) |
|
P/SEAT PASS |
|
30A |
Seat Heater&Ventilation Unit (Power Seat) |
|
S/HEATER RR |
|
25A |
Rear Seat Heater |
|
S/HEATER FRT |
|
25A |
Front Seat Heater |
|
P/WINDOW LH |
|
25A |
Power Window Motor LH |
|
P/WINDOW RH |
|
25A |
Power Window Motor RH |
|
SBCM Driving |
|
20A |
SBCM (Side Body Control Module) |
|
SBCM PASS |
|
20A |
SBCM (Side Body Control Module) |
|
wireless DCU |
|
7.5A |
DCU (Domain Control Unit) |
|
E-SHIFTER1 |
|
10A |
Shift By Wire Lever |
|
MODULE8 |
|
10A |
ICC (In Cabin Camera), ADAS Driving, Rain Sensor, OBD |
|
MULTIMEDIA |
|
25A |
CCNC (Connected Car Navigation Cockpit) |
|
MEMORY2 |
|
7.5A |
USB Jack, DATC (Dual Automatic Temperature Control), BDC (Body Domain Controller) |
|
MEMORY1 |
|
10A |
Cluster, Mood Lamp, Built In Cam, Head Up Display, ETCS (Electric Toll Collection System), ADP (Acoustic Design Processor speaker), ADAS Parking ECU, Coner Radar, UWB (Ultra Wide Band) |
|
CCU |
|
10A |
CCU (Central Communication Unit) |
|
BDC1 |
|
10A |
BDC (Body Domain Controller), UWB (Ultra Wide Band), O/S (OutSide) Handle |
|
BRAKE SWITCH |
|
7.5A |
Stop Lamp Switch, BDC (Body Domain Controller) |
|
DOOR LOCK |
|
20A |
Door Lock Relay, Door Lock Actuator |
|
TAILGATE OPEN |
|
10A |
Tailgate Latch Actuator |
|
MODULE5 |
|
10A |
VESS (Virtual Engine Sound System) |
|
AIR BAG2 |
|
10A |
ACU (Airbag Control Unit) |
|
MODULE6 |
|
10A |
P/Window Switch, PTG (Power Tail Gate), Seat Heater&Ventilation Unit |
|
SUNROOF |
|
20A |
Sunroof |
|
WIPER FRT2 |
|
7.5A |
Front Wiper |
