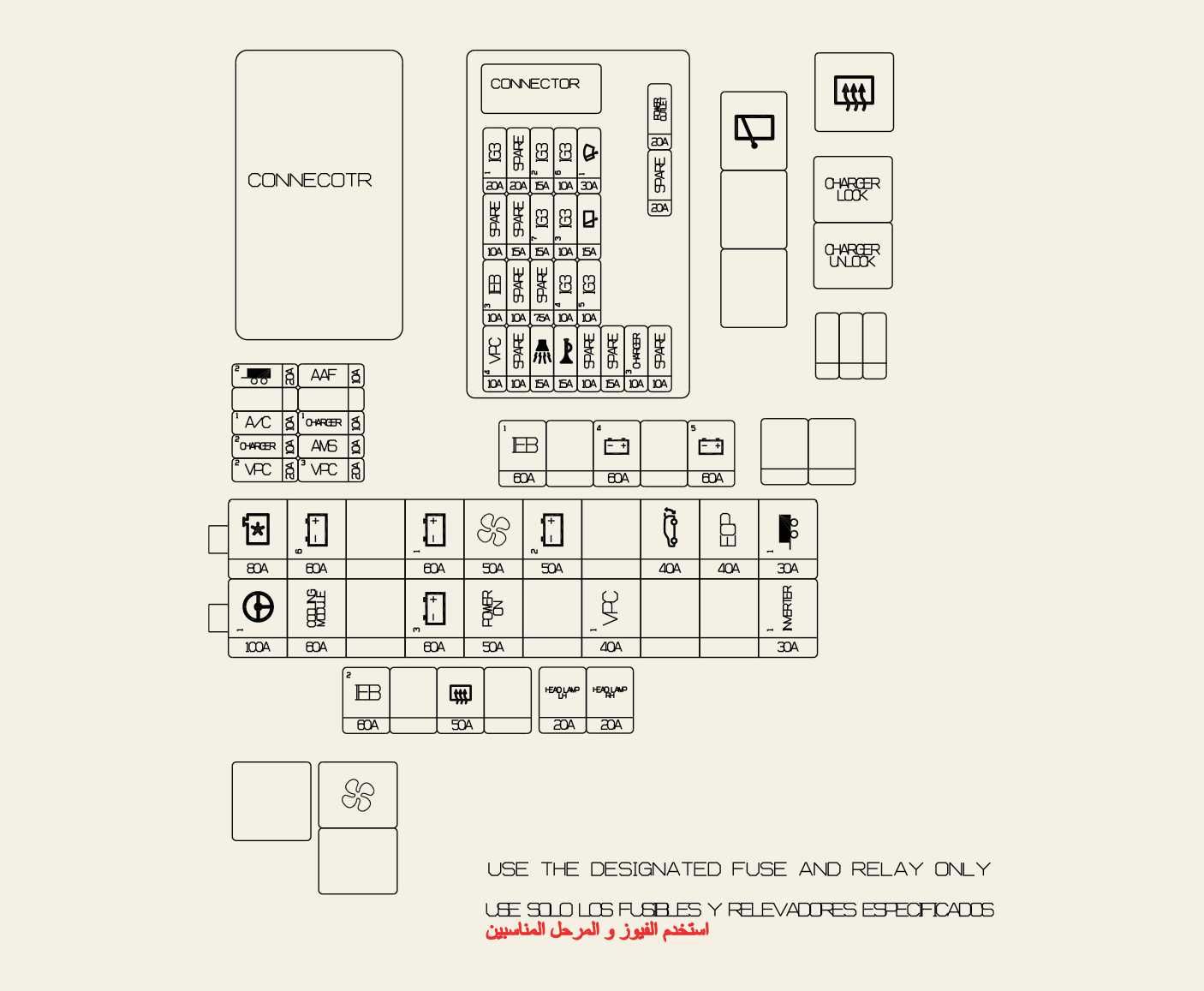

Motor compartment fuse panel
Circuit (P/R Junction Block)
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
IEB1 |
|
60A |
IEB (Intergrated Electric Booster) |
|
B+4 |
|
60A |
PDC B+4 (IPS13,MULTIMEDIA,MEMORY1,MEMORY2,CCU(Central Communication Unit),BDC(Body Domain Controller),BRAKE SWITCH,RESERVE, DOOR LOCK,FS20, TAILGATE OPEN ) |
|
B+5 |
|
60A |
PDC B+5 (RESERVE,MODULE5,AIR BAG2,INVERTER2(EAWD),MODULE6,RESERVE,SUNROOF,RESERVE) |
|
MDPS1 |
|
100A |
MDPS (Motor Driven Power Steering) Unit |
|
COOLING MODULE |
|
60A |
COOLING MODULE |
|
SPARE |
|
60A |
- |
|
B+3 |
|
60A |
PDC B+3 (BMS (Battery Management System),Harman AMP,Seat Heater&Ventilation Unit (Power Seat),Rear Seat Heater,Front Seat Heater,RESERVE,Power Window Motor LH,Power Window Motor RH,SBCM(Side Body Control Module) Driving,SBCM(Side Body Control Module) Passenger,wireless DCU,E-SHIFTER1,RESERVE,MODULE8) |
|
POWER ON |
|
50A |
PDC POWER ON (AIR BAG1,A/BAG IND,E-SHIFTER2,CLUSTER,BDC2(Body Domain Controller),MDPS2,MODULE2,MODULE3,MODULE4,RESERVE,IPS14,A/C2,RESERVE,WASHER,MODULE7,RESERVE) |
|
INVERTER1 |
|
30A |
INVERTER |
|
COOLING FAN |
|
80A |
Cooling Fan |
|
B+6 |
|
60A |
CCU (Central Communication Unit), P/WDW SW, V2L SIG,DOOR SW,VPC (Vehicle Platform Controller), ICCU (Intergrated Charging Control Unit) |
|
B+1 |
|
60A |
PDC B+1 (IPS03,IPS07,IPS02,IPS06,IPS05,IPS01,IPS04) |
|
BLOWER |
|
50A |
Air Conditioner Blower Moter Relay |
|
B+2 |
|
50A |
PDC B+2 (IPS09,IPS12,IPS11,IPS08,IPS10) |
|
POWER TAILGATE |
|
40A |
POWER TAILGATE |
|
TRAILER1 |
|
30A |
TRAILER |
|
TRAILER2 |
|
20A |
TRAILER |
|
AAF |
|
10A |
Active Air Flap |
|
A/C1 |
|
10A |
DATC (Dual Automatic Temperature Control) |
|
CHARGER1 |
|
10A |
CDM (Charge Door Module) |
|
CHARGER1 |
|
10A |
Charge Lock&Unlock Relay |
|
AMS |
|
10A |
AMS (Alternater Management System) |
|
VPC2 |
|
20A |
VPC (Vehicle Platform Controller) |
|
VPC3 |
|
20A |
VPC (Vehicle Platform Controller) |
|
HEAD LAMP LH |
|
20A |
HEAD LAMP LH |
|
HEAD LAMP RH |
|
20A |
HEAD LAMP RH |
|
IEB2 |
|
60A |
IEB (Intergrated Electric Booster) |
|
REAR HEATED |
|
50A |
Rear Glass Heated |
|
CHARGER3 |
|
10A |
VCMS (Vehicle Chargeing Management System), ICCU (Intergrated Charging Control Unit) |
|
SPARE |
|
15A |
- |
|
SPARE |
|
10A |
- |
|
IG3 1 |
|
20A |
IG3 FUSE (IG3_8, IG3_9, IG3_10) |
|
SPARE |
|
20A |
- |
|
IG3 2 |
|
15A |
VPC (Vehicle Platform Controller) |
|
IG3 3 |
|
10A |
ICCU (Intergrated Charging Control Unit) |
|
IG3 4 |
|
10A |
Electric Compressor |
|
IG3 5 |
|
10A |
BMS (Battery Management System) |
|
IG3 6 |
|
10A |
Front Inverter |
|
IG3 7 |
|
15A |
VCMS (Vehicle Chargeing Management System) |
|
SPARE |
|
10A |
- |
|
HORN |
|
15A |
HORN Relay |
|
B/ALARM HORN |
|
15A |
B/Alarm Horn, LO_B/Alarm Horn Relay |
|
SPARE |
|
15A |
- |
|
WIPER FRT1 |
|
30A |
Wiper Motor, Wiper Front Low Relay |
|
WIPER RR |
|
15A |
Rear Wiper Motor |
|
POWER OUTLET |
|
20A |
Power Outlet Relay |
|
SPARE |
|
20A |
- |
|
IEB3 |
|
10A |
IEB (Intergrated Electric Booster) |
|
SPARE |
|
10A |
- |
|
SPARE |
|
15A |
- |
|
SPARE |
|
7.5A |
- |
|
SPARE |
|
10A |
- |
|
SPARE |
|
10A |
- |
|
VPC4 |
|
10A |
VPC (Vehicle Platform Controller) |
PCB Block
|
Fuse Name |
Relay |
Circuit Protected |
|---|---|---|
|
Long Term Load Latch Relay |
5P |
Long Term Load |
|
DOOR LOCK |
5P |
Door Lock Actuator |
|
DOOR UNLOCK |
5P |
Door Unlock Actuator |
|
DEAD LOCK |
5P |
Dead Lock Actuator |
|
MAIN RELAY |
6P |
IG3 Relay |
|
HORN |
5P |
HORN |
|
B/ALARM HORN |
5P |
B/Alarm Horn |
|
WIPER |
6P |
Wiper Fuse Relay |
|
WIPER LO |
5P |
Wiper low Relay |
|
WIPER HI |
5P |
Wiper High Relay |
|
POWER ON |
6P |
Power On |
|
ACC |
6P |
ACC |
Relay
|
Relay Name |
Symbol |
TYPE |
|---|---|---|
|
REAR HEATED |
|
MINI |
|
CHARGER LOCK |
|
MICRO |
|
CHARGER UNLOCK |
|
MINI |
|
WIPER RR |
|
MICRO |
|
BLOWER |
|
MICRO |
