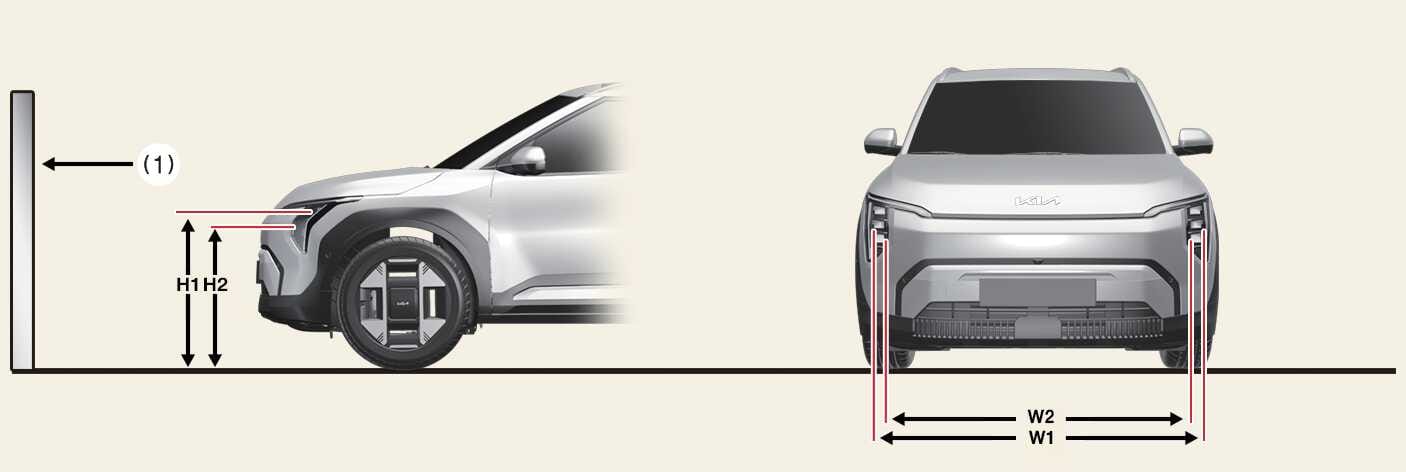

Aiming point
OSV074053L
-
Screen
|
Vehicle condition |
Head lamp (LED type) |
|||||
|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
|||||
|
H1 (LOW) |
H2 (HIGH) |
W1 (LOW) |
W2 (HIGH) |
|||
|
Type A |
2WD |
With driver [mm (in)] |
817 (32.2) |
687 (27) |
1,544 (60.8) |
1,528 (60.2) |
|
Without driver [mm (in)] |
827 (32.6) |
697 (27.4) |
||||
|
Type B |
2WD |
With driver [mm (in)] |
732 (28.8) |
732 (28.8) |
1,558 (61.3) |
1,482 (58.3) |
|
Without driver [mm (in)] |
742 (29.2) |
742 (29.2) |
||||
