Leg support (VIP Lounge Seat)
OKA4030039N

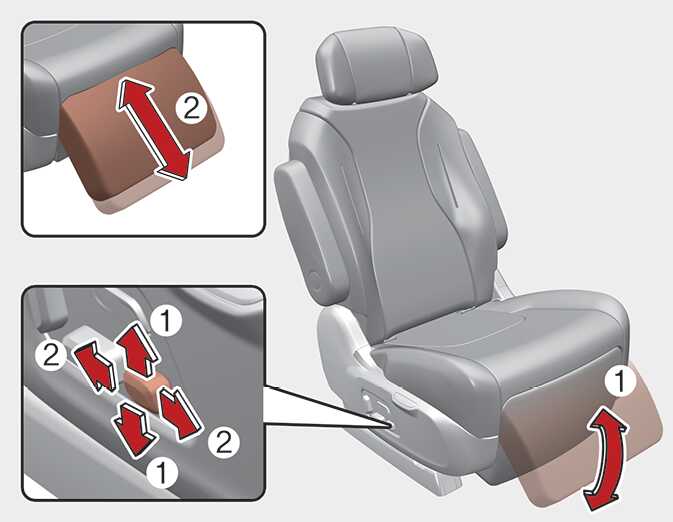

To use the leg support:
-
Pull the leg support lever up and hold it.
-
Adjust the angle (1) and length (2) of the leg support while holding the leg support. When using the leg rest, move the seat to the inner position, and then toward the back. If the seat is not moved far back, it may come in contact with the first row seat.
-
Release the switch and make sure the leg support is locked in place.
The leg support length switch operates after the leg support has been raised by more than a certain angle to prevent damage to parts due to floor interference.
