Rear climate control

From the front seat

  1. Set the rear climate control selection (REAR ON) button on the front climate control panel to the ON position.

  2. Set the rear fan speed control lever on the front climate control panel to the desired position.

  3. Set the rear temperature control lever on the front climate control panel to the desired position.

From the rear seat

  1. Set the rear climate control selection (REAR ON) button on the front climate control panel to the ON position.

  2. Set the rear climate control selection (REAR LOCK) button on the front climate control panel to the OFF position.

  3. Set the rear fan speed control button on the rear climate control panel to the desired position.

  4. Set the rear temperature control button on the rear climate control panel to the desired position.

  5. Select the desired rear mode button on the rear climate control panel.

  6. To turn off the rear air conditioning system, press the off button in the rear climate control panel.

Rear mode selection

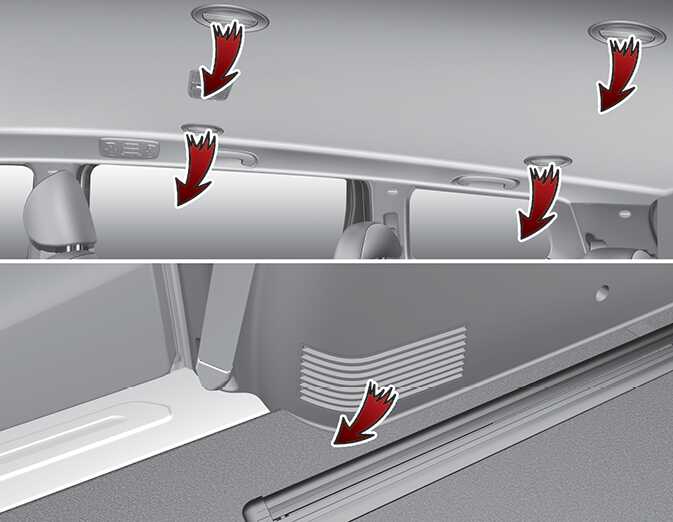

OKA4040320

  • Front climate control is MAX A/C, : Rear air blows from the upper vents on the rear ceiling.

  • Front climate control is : Rear air blows from the upper vents on the rear ceiling and the lower vents on the right rear trim together.

  • Front climate control is , : Rear air blows from the lower vents on the right rear trim.

When the rear climate control selection (REAR ON) button on the front climate control panel is in the ON position and set the rear climate control selection (REAR LOCK) button on the front climate control panel to the OFF position and the rear mode is selected by pushing the rear mode selection button on the rear control panel as follows:

  • : Rear air blows from the upper vents on the rear ceiling.

  • : Rear air blows from the upper vents on the rear ceiling and the lower vents on the right rear trim together.

  • : Rear air blows from the lower vents on the right rear trim.

Rear temperature control

From the front seat
OKA4040316

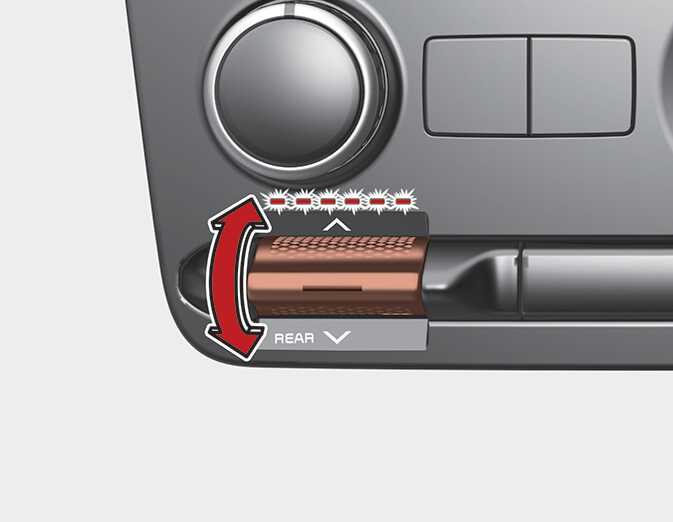

Set the rear climate control selection (REAR ON) button to the ON position and turn the rear temperature control lever (left to REAR ON button) in the front climate control panel to the desired position. To change the rear air temperature, press the lever to the upper position for warm and hot air or lower position for cooler air.

From the rear seat
OKA4040318

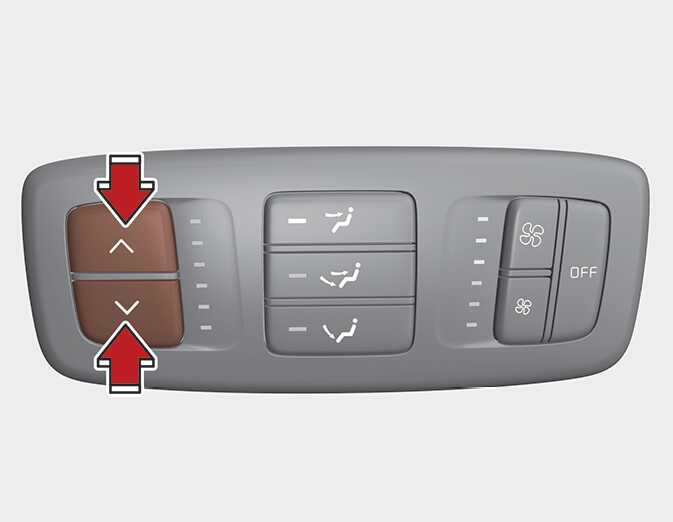

Set the rear climate control selection (REAR ON) button on the front climate control panel to the ON position and set the rear climate control selection (REAR LOCK) button on the front climate control panel to the OFF position. To change the rear air temperature, press the button ( ) for warmer air or press the button ( ) for cooler air.

Rear fan speed control

From the front seat
OKA4040315

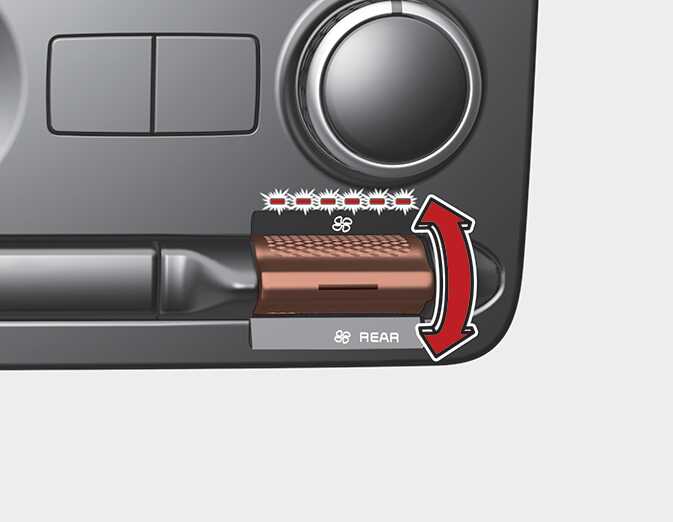

Set the rear climate control selection (REAR ON) button to the ON position and turn the rear fan speed control lever (right to REAR LOCK button) on the front climate control panel to the desired position.

To change the rear fan speed, press the lever to the upper position for higher speed or lower position for lower speed. The rear climate control fan speed will not decrease below 1 if the fan speed is controlled on the front climate control panel.

To turn the rear air conditioning system off, press the rear climate control selection (REAR ON) button to the OFF position on the climate control panel.

From the rear seat
OKA4040317

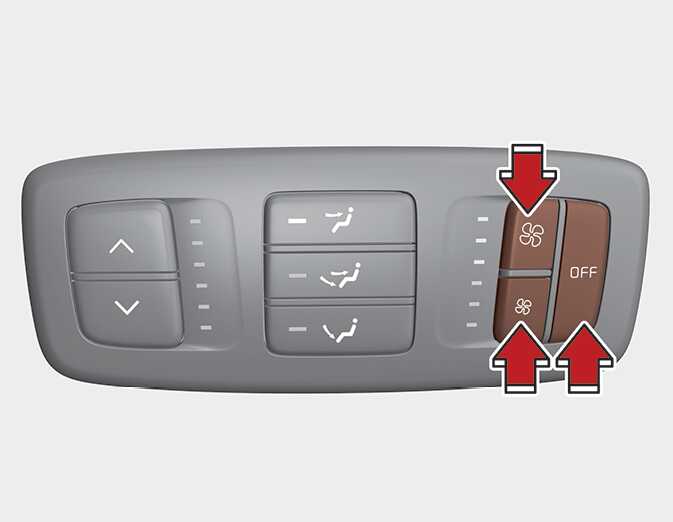

Set the rear climate control selection (REAR ON) button in the front climate control panel to the ON position and set the rear climate control selection (REAR LOCK) button in the front climate control panel to the OFF position and press the rear fan speed control button on the rear control panel to the desired position.

To turn off the rear air conditioning system press the OFF button in the rear climate control panel.
