Heating and air conditioning automatically

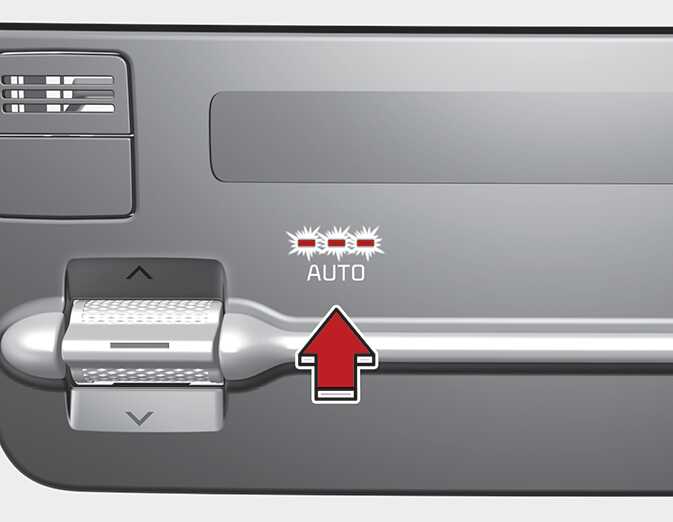

  1. Press the AUTO button.

    The modes, fan speeds, air intake and air-conditioning will be controlled automatically by setting the temperature.

    OKA4040322

    Level

    Indicator

    LCD Display

    Air flow

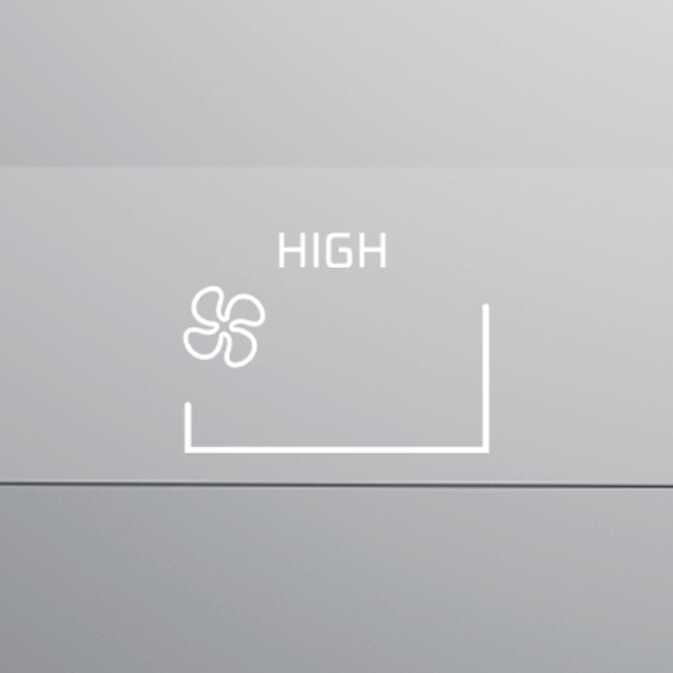

    High
    OKA4040460
    OKA4041463N

    1 ~ 8

    Medium
    OKA4040461
    OKA4041464N

    1 ~ 6

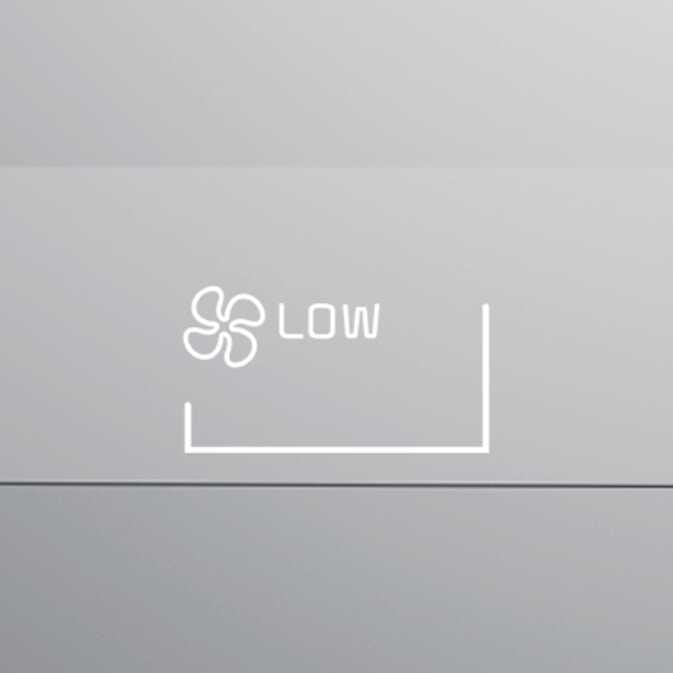

    Low
    OKA4040462
    OKA4041465N

    1 ~ 4

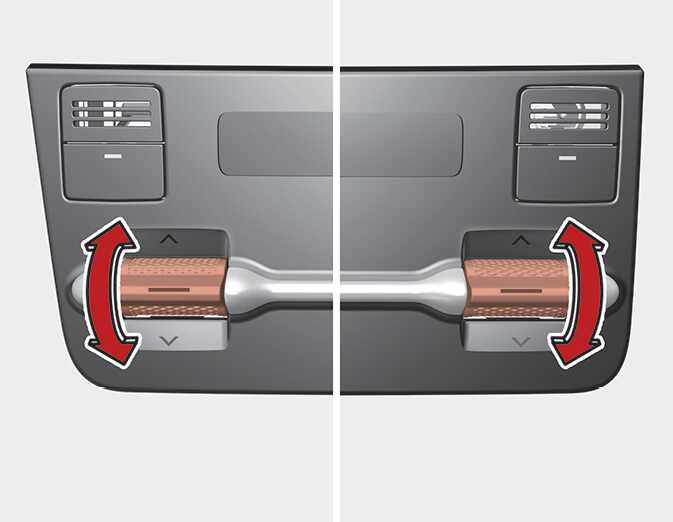

  2. Press the temperature control lever to the desired temperature.

    OKA4040326
NOTE

  • To turn the automatic operation off, select any button or lever of the following:

    • Mode selection button

    • Air conditioning button

    • Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The AUTO sign will illuminate on the information display once again.)

    • Fan speed control button

    The selected function will be controlled manually while other functions operate automatically.

  • For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 22 °C/71 °F.

NOTE

Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

OKA4040411N
