Characteristics of outer vent brake disc

Characteristics of outer vent brake disc

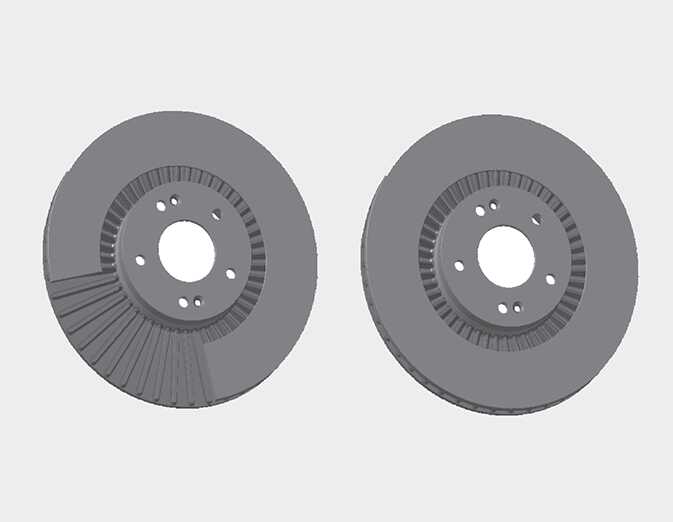

Figure 1. Outer vent brake disc

The vent area of the outer vent-type brake disc is exposed to the outside to improve the cooling performance of the brake when driving.The exposed vent area may become rusty but it will not affect the braking performance, and such corrosion is not covered by warranty.
