Light bulb position (Rear)

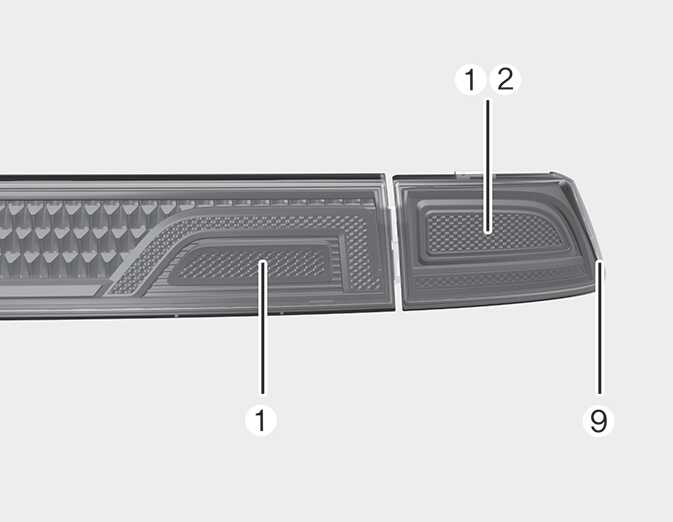

Figure 1. Rear combination lamp - Type A
OKA4070027N

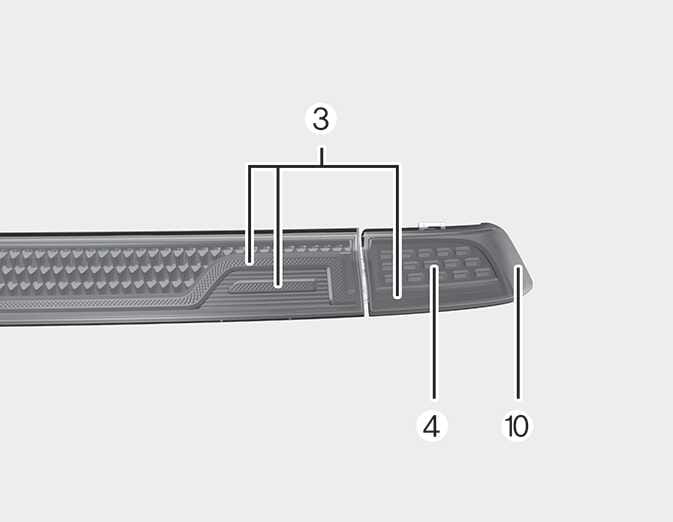

Figure 2. Rear combination lamp - Type B
OKA4070028N
Figure 3. Reversing lamp / Turn signal lamp
OKA4070029

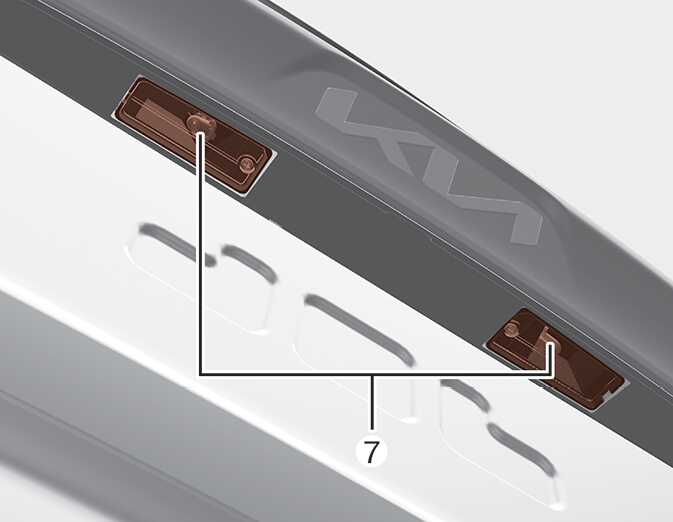

Figure 4. License plate lamp
OKA4070030N

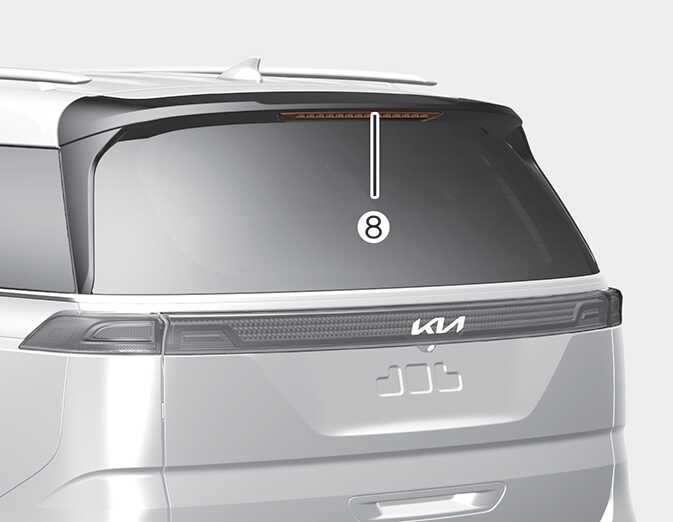

Figure 5. High mounted stop lamp
OKA4070031N

  1. Tail lamp (Bulb type)

  2. Stop lamp (Bulb type)

  3. Tail lamp (LED type)

  4. Stop lamp (LED type)

  5. Reversing lamp (Bulb type)

  6. Rear turn signal lamp (Bulb type)

  7. License plate lamp (Bulb type)

  8. High mounted stop lamp (LED type)

  9. Rear side marker (Bulb type)

  10. Rear side marker (LED type)
