Operation

1. Keep the front seatbacks upright to avoid interference when the seats are folded.

2. Press the rear seat headrest button to lower the rear seat headrest to their lowest position.

3. Insert the seat belt into the storage holder and insert the buckle into the storage area inside the seat to prevent interference between the 3-point seat belt on either side and the loaded cargo when folded.

   Tidy up the centre seat belts of the rear seats so that they are not twisted.

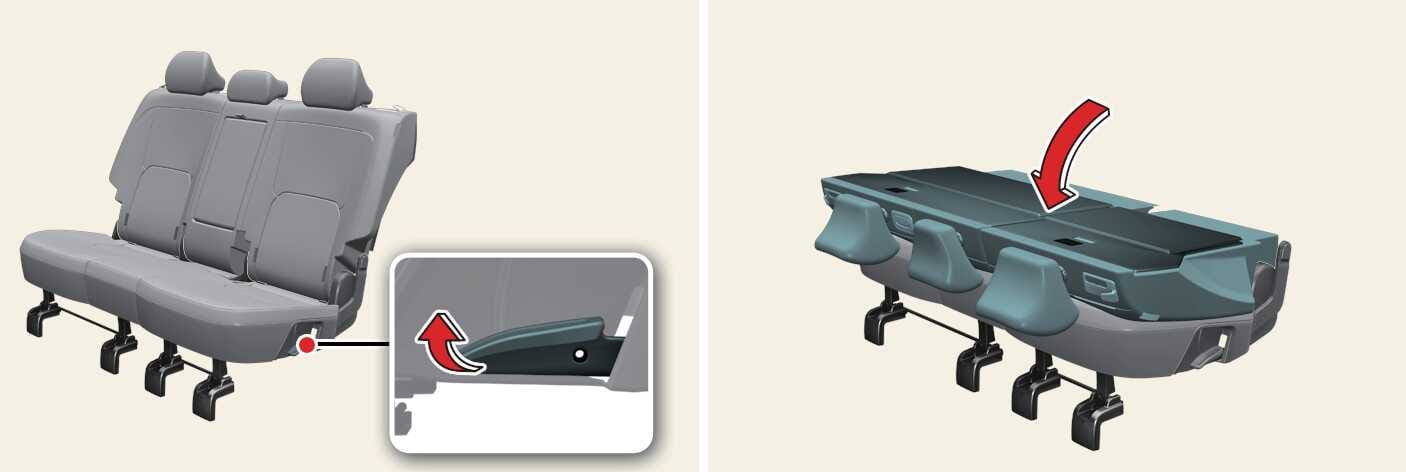

4. Pull the rear seat angle adjustment lever to fully fold the seatback forward.

5. After folding the seatback, release the adjustment lever to secure it. Make sure the seatback is securely fastened.

6. When returning to the original position, raise the seatback whilst pulling the rear seatback angle adjustment lever. After adjusting the seatback to the desired angle, release the lever to lock it in place.

NOTE

When using a full flat seat, please unfold the extension board. When return the seat back to using position, the extension board should fold first, then operate the back reclining.

OOVC023040
