Suitability of each seating position for belted and ISOFIX Child Restraint Systems (CRS) according to UN regulations

(Information for use by vehicle users and CRS manufacturers)

  • Yes: Suitable for fitment of the designated category of CRS

  • No: Not suitable for fitment of the designated category of CRS

  • "-": Not applicable

  • The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle. For RHD vehicle front passenger of number 1, please use information for the seating position number 3.

F : Forward facing

R : Rearward facing

CRS categories

Seating positions

1

2

3

4

5

6
Universal belted CRS 1

-

-

-

No

Yes

F , R

Yes

F , R

Yes

F , R

i-Size CRS

ISOFIX CRF:

F2, F2X, R1, R2

-

-

No

Yes

No

Yes

Carry-cot (ISOFIX lateral facing CRS)

ISOFIX CRF:

L1, L2

-

-

No

No

No

No

ISOFIX infant* CRS (*: ISOFIX baby CRS)

ISOFIX CRF:

R1

-

-

No

Yes

R

No

Yes

R

ISOFIX toddler CRS – small

ISOFIX CRF:

F2, F2X, R2, R2X

-

-

No

Yes

F , R

No

Yes

F , R

ISOFIX toddler CRS – large* (*: not booster seats)

ISOFIX CRF:

F3, R3

-

-

No

Yes

F , R 2

No

Yes

F , R 2

Booster Seat – reduced Width

ISO CRF:

B2

-

-

No

Yes

No

Yes

Booster Seat – full Width

ISO CRF:

B3

-

-

No
Yes 3

No

Yes 3

The universal belted CRS applies to all mass groups.

To install CRS at the 2nd row outer seating positions, 1st row seat should be adjust forward properly.

To install CRS at the 2nd row outer seating positions, 2nd row seat headrest should be removed in case of interference.

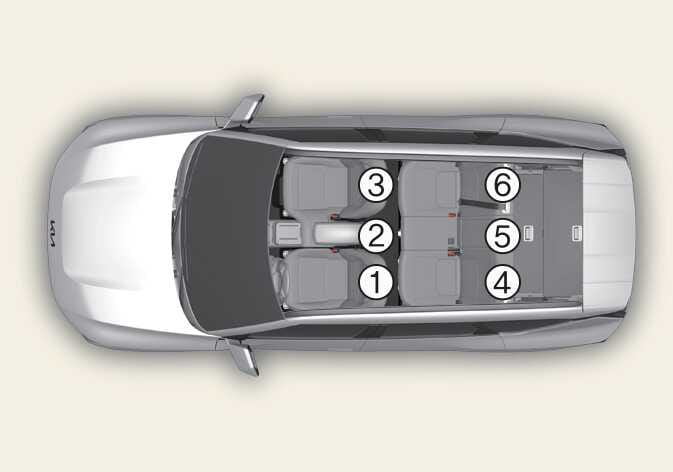

Seat number

Position in the vehicle

Seating position

1

Front left
OOVC024019L

2

Front centre

3

Front right

4

2nd row left

5

2nd row centre

6

2nd row right

Never place a rearward facing Child Restraint System on the front passenger seat, unless the airbag is deactivated.

For semi-universal or vehicle specific CRS (ISOFIX or belted CRS), please see the vehicle list provided in the manual of CRS.

TIP

  • As for protecting the child safety, The CRSs are recommended as below for Australia and New Zealand.

Type A

Britax Safe n Sound Unity ISOFIX (ISOFIX mode)

Type B

MaxiCosi Euro Moda

(forward facing, ISOFIX mode)

Type E

Britax Safe n Sound Highliner SG

Type F

Britax Safe n Sound KidGuard

  • In Latin America area, as for the child weight less than 18 kg, the CRS named Joie i-Spin 360 is recommended and must be installed in a rearward-facing way.
