Opening/closing the bonnet

OOVC034018R_5

Operation

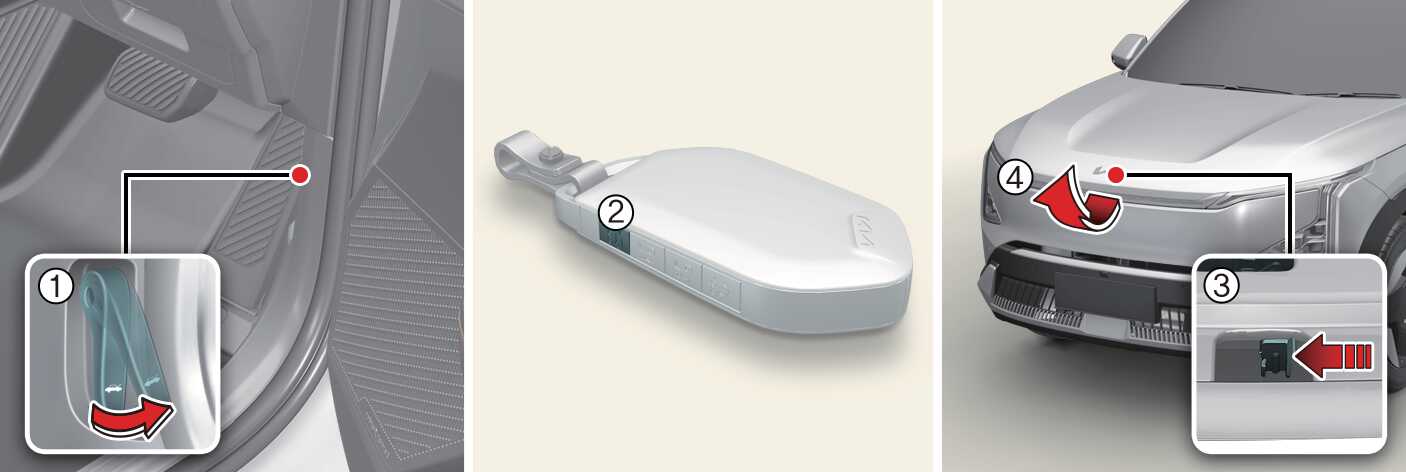

  1. Pull the bonnet release lever (1) located on the driver side footrest or press and hold the bonnet unlock button (2) on the smart key for 1.5 seconds.

  2. Raise the bonnet slightly, push the secondary bonnet release lever (3) to the left and lift the bonnet (4).

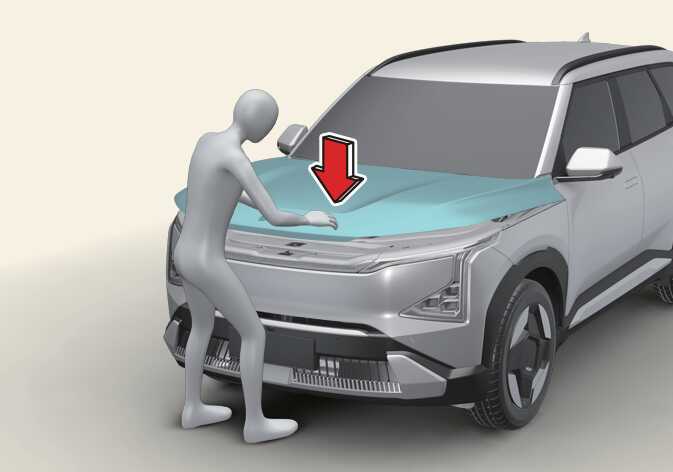

  3. To close the bonnet, lower the bonnet, then push it all the way down.

NOTE
OOVC033019

  • Make sure that it locks into place. If the bonnet can be raised slightly, it is not properly engaged. Open it again and close it with a little more force.

  • When Forward Collision-Avoidance Assist is activated, the outside door handle will pop out for the rescue the passengers.

  • The outside door handle will automatically be locked when the Forward Collision-Avoidance Assist is deactivated,

WARNING

  • Open the bonnet after turning off the vehicle on a flat surface, shifting the gear to the P (Park) position and setting the parking brake.

  • Before closing the bonnet, ensure that all obstructions are removed from the bonnet opening. Closing the bonnet with an obstruction present in the bonnet opening may result in property damage or severe personal injury.

  • Do not leave gloves, rags or any other combustible material in the motor compartment. Doing so may cause a heat-induced fire.

  • Always double check to be sure that the bonnet is firmly latched before driving away. If it is not latched, the bonnet could open whilst the vehicle is being driven, causing total loss of visibility, which might result in an accident.

  • Do not move the vehicle with the bonnet raised. The view will be blocked and the bonnet could fall or be damaged.

  • If the bonnet is not closed completely, the vehicle speed will be limited.

NOTE

Operate the bonnet release lever if the bonnet does not open due to low temperature, etc.
