Opening/closing the charging door

OOVC034021R_5

Operation

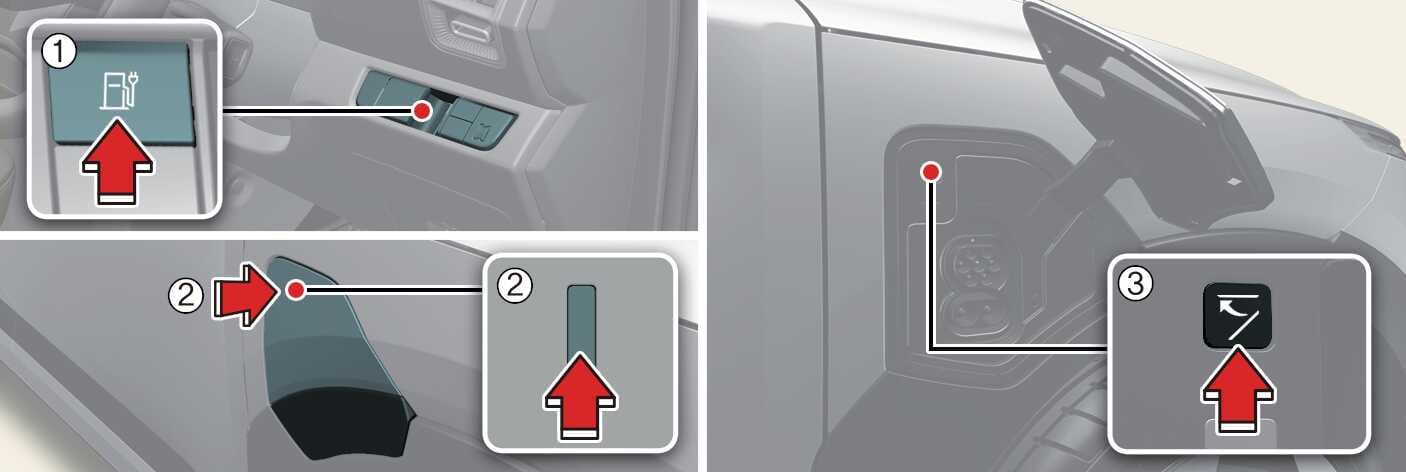

  • Push the charging door open/close button (1) on the instrument panel.

  • Push the charging door open pattern (2) located at charging door outer cover to open.

    Push the charging door close button (3) located at inner part of the charging door to close.

  • The charging door also can be opened or closed by using voice recognition ( ).

TIP

  • The charging door automatically closes when:

    • Approximately 2 minutes have passed after the charging connector is disconnected

    • The door is opened and the charging connector is not connected for approximately 2 minutes

    • The gear is not in P (Park)

  • After replacing battery (12 volt), open and close the charging door once to check that the charging door automatic opening mechanism is functioning properly.

For more details, refer to Charging your electric vehicle .
