Climate control air filter

OOVC074006R_5

Operation

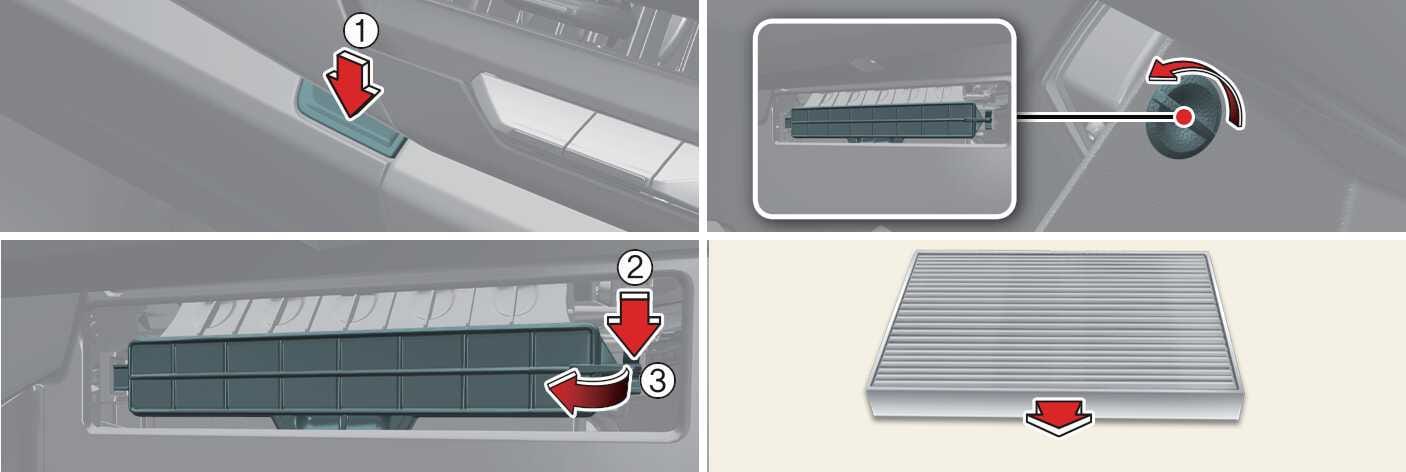

  1. Open the glove box (1) and remove the stoppers on both sides.

  2. Remove the climate control air filter cover (2) by pulling out right side of the cover (3).

  3. Replace the climate control air filter.

NOTE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
